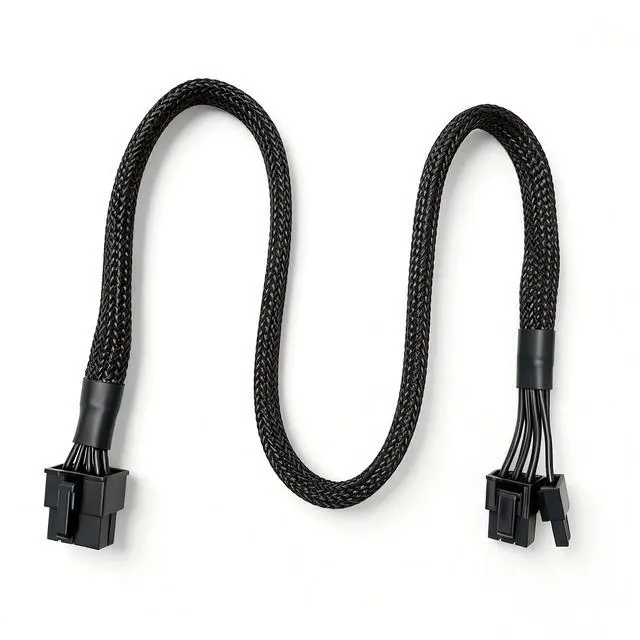

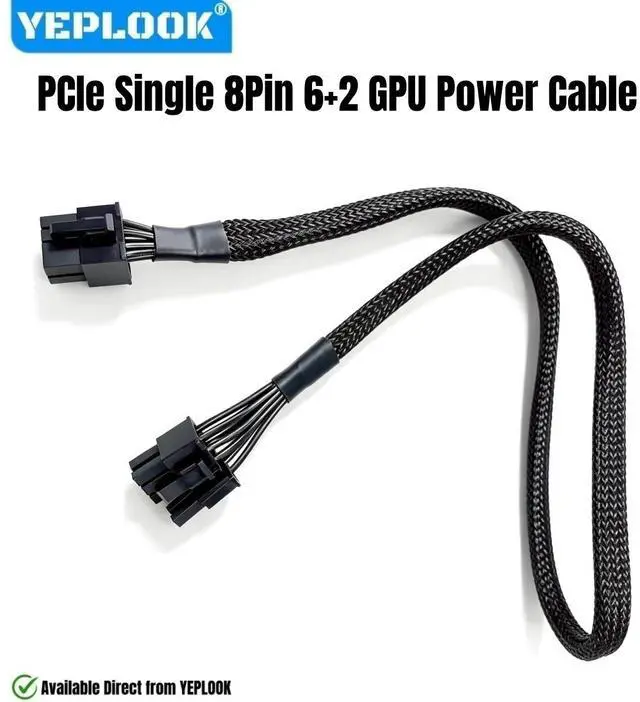

PCIe GPU Power Cable 8Pin 6+2 Sleeved Net for Seasonic FOCUS Gold & Platinum 550W, 650W, 750W, 850W, 1000W, 1300W Modular Powers

YEPLOOK PCIe GPU Power Cable 8Pin 6+2 Sleeved Net for Seasonic FOCUS Gold & Platinum 550W, 650W, 750W, 850W, 1000W, 1300W Modular Powers, 18AWG Tinned Copper Wire, 60CM/ 23.6 in. / 1.97 ft.

Description

Length: about 60 CM / 23.62 inch / 1.97 ft.
Interface: PSU 8Pin to PCI-E Single 8Pin (6+2)
Features: made of 18AWG standard tinned copper wire with nylon sleeved net. Flexible ribbon flat cable, easy to bend with good cable management.
Installation: This GPU Power Cable PCIe 8Pin comes as "6+2" connector, compatible with GPU cards that has 8pin or 6pinby sliding on/off the 2pin+G43.
Package List: 1x PCIe 8Pin 6+2 GPU Power Cable for Seasonic FOCUS All Series Modular Powers.

This PCIe 8Pin (6+2) GPU Power Cable is Compatible with Seasonic FOCUS All Series Modular Powers Below:

Compatible with Seasonic FOCUS Plus Platinum Series:

Model: FOCUS PX-1000, FOCUS Plus 1000 Platinum (SSR-1000PX)
Model: FOCUS PX-850, FOCUS Plus 850 Platinum (SSR-850PX)
Model: FOCUS PX-750, FOCUS Plus 750 Platinum (SSR-750PX)
Model: FOCUS PX-650, FOCUS Plus 650 Platinum (SSR-650PX)
Model: FOCUS PX-550, FOCUS Plus 550 Platinum (SSR-550PX)

Compatible with Seasonic FOCUS Plus Gold Series:

Model: FOCUS GX-1000, FOCUS Plus 1000 Gold (SSR-1000FX)
Model: FOCUS GX-850, FOCUS Plus 850 Gold (SSR-850FX)
Model: FOCUS GX-750, FOCUS Plus 750 Gold (SSR-750FX)
Model: FOCUS GX-650, FOCUS Plus 650 Gold (SSR-650FX)
Model: FOCUS GX-550, FOCUS Plus 550 Gold (SSR-550FX)

Compatible with Seasonic FOCUS Gold GM Series:

Model: FOCUS GM-850, FOCUS 850 Gold (SSR-850FM)
Model: FOCUS GM-750, FOCUS 750 Gold (SSR-750FM)
Model: FOCUS GM-650, FOCUS 650 Gold (SSR-650FM)
Model: FOCUS GM-550, FOCUS 550 Gold (SSR-550FM)
Model: FOCUS GM-500, FOCUS 500 Gold (SSR-500FM)
Model: FOCUS GM-450, FOCUS 450 Gold (SSR-450FM)

Compatible with Seasonic FOCUS SGX 2020 & FOCUS Gold 2021
Series:

Model: FOCUS SGX-750, FOCUS 750 Gold (SSR-750SGX)
Model: FOCUS SGX-650, FOCUS 650 Gold 2020 (SSR-650SGX)
Model: FOCUS SGX-650, FOCUS 650 Gold 2021 (Y76551GXSFS)
Model: FOCUS SGX-550, FOCUS 550 Gold (SSR-550SGX)
Model: FOCUS SGX-500, FOCUS 500 Gold (SSR-500SGX)
Model: FOCUS SGX-450, FOCUS 450 Gold (SSR-450SGX)

Mix use power cables between different brands and models may cause damage. Please check compatibility with us to ensure proper installation and operation.

* Not Compatible with modulars of other brands and models.
* Not Compatible with Seasonic Old Versions of
Modular Powers Below:
* Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
* Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
* Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

Questions

Q 1: Why is its [PSU] interface only 7Pin?
A 1: PSU 8Pin has a double wired pin, so there is an empty hole. Because GPU card power supply only needs 3-Pins 12V signals. The other 5-Pins are GND signals.

Q 2: Can I use it power for CPU?
A 2: No, although the CPU interface in the power panel is shared with the PCIE interface. The PCIE 8Pin connector pinout differs and has a different latch position. It is distinct from the 8-Pin EPS/CPU connector.
