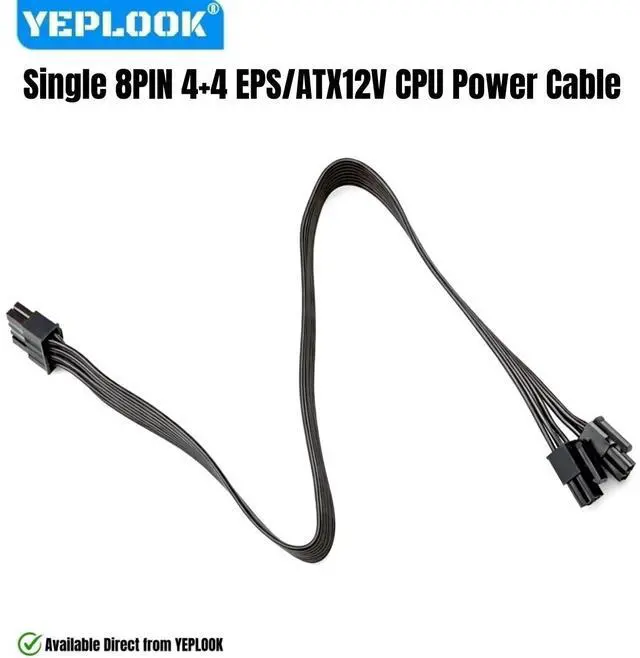

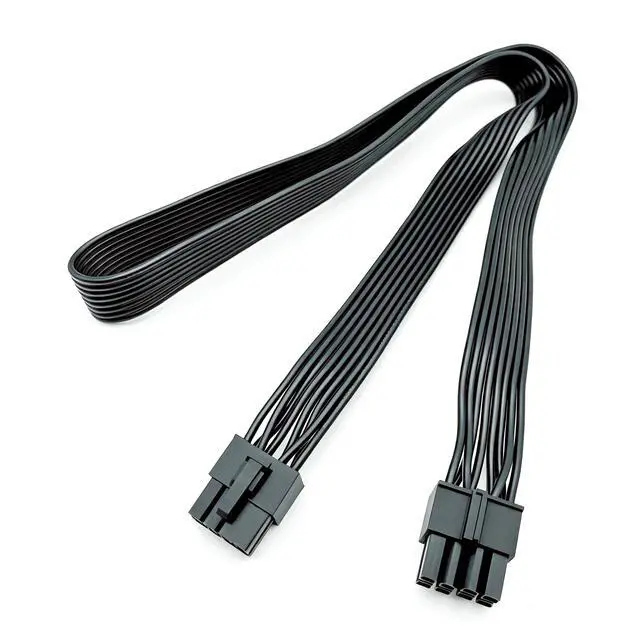

Single CPU Power Cable 8Pin 4+4 EPS/ATX12V for Seasonic FOCUS 550W, 650W, 750W, 850W, 1000W Platinum & Gold Series Modular Power

YEPLOOK Single CPU Power Cable 8Pin 4+4 EPS/ATX12V for Seasonic FOCUS 550W, 650W, 750W, 850W, 1000W Platinum & Gold Series Modular Powers, 18AWG Tinned Copper Wire, 60 CM/ 23.6 in/ 1.97 ft+G46

Description

Interface: PSU 8Pin to CPU 8Pin (4+4)
Gauge: 18AWG tinned copper wire.
Length: about 60 CM / 1.97 ft. / 23.62 inch.

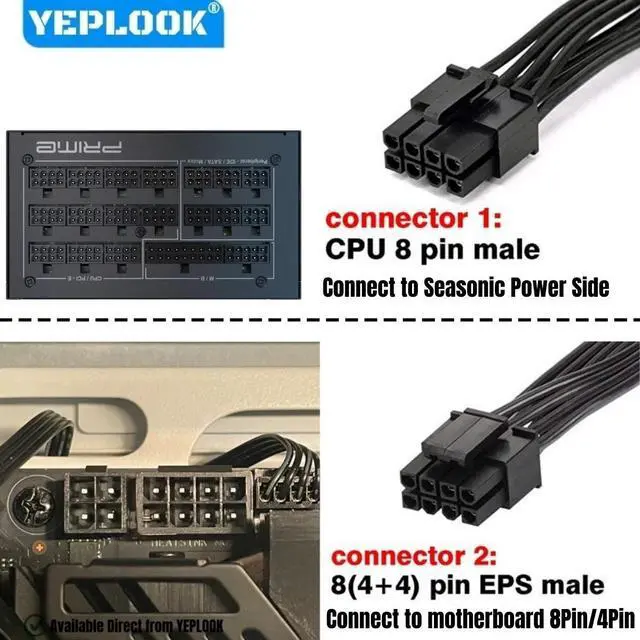

Installation: PSU 8Pin plug into power supply side. CPU 8Pin (4+4Pin) plug into motherboard side. CPU 4+4Pin used as 8Pin or 4Pin by sliding on/off the 4Pin.
For motherboard requires a 4pin ATX 12V (CPU) connector, please detach a 4pin connector.
For motherboard requires a 8pin EPS connector, please use the 4+4pin connector.
Package List: 1x CPU 4+4 Power Cable for Seasonic FOCUS All Series Modular Powers.

This CPU Power Cable is Compatible with Seasonic FOCUS All Series Modular Powers Below:

Compatible with Seasonic FOCUS Plus Platinum Series:

Model: FOCUS PX-1000, FOCUS Plus 1000 Platinum (SSR-1000PX)
Model: FOCUS PX-850, FOCUS Plus 850 Platinum (SSR-850PX)
Model: FOCUS PX-750, FOCUS Plus 750 Platinum (SSR-750PX)
Model: FOCUS PX-650, FOCUS Plus 650 Platinum (SSR-650PX)
Model: FOCUS PX-550, FOCUS Plus 550 Platinum (SSR-550PX)

Compatible with Seasonic FOCUS Plus Gold Series:

Model: FOCUS GX-1000, FOCUS Plus 1000 Gold (SSR-1000FX)
Model: FOCUS GX-850, FOCUS Plus 850 Gold (SSR-850FX)
Model: FOCUS GX-750, FOCUS Plus 750 Gold (SSR-750FX)
Model: FOCUS GX-650, FOCUS Plus 650 Gold (SSR-650FX)
Model: FOCUS GX-550, FOCUS Plus 550 Gold (SSR-550FX)

Compatible with Seasonic FOCUS Gold GM Series:

Model: FOCUS GM-850, FOCUS 850 Gold (SSR-850FM)
Model: FOCUS GM-750, FOCUS 750 Gold (SSR-750FM)
Model: FOCUS GM-650, FOCUS 650 Gold (SSR-650FM)
Model: FOCUS GM-550, FOCUS 550 Gold (SSR-550FM)
Model: FOCUS GM-500, FOCUS 500 Gold (SSR-500FM)
Model: FOCUS GM-450, FOCUS 450 Gold (SSR-450FM)

Compatible with Seasonic FOCUS SGX 2020 & FOCUS Gold 2021
Series:

Model: FOCUS SGX-750, FOCUS 750 Gold (SSR-750SGX)
Model: FOCUS SGX-650, FOCUS 650 Gold 2020 (SSR-650SGX)
Model: FOCUS SGX-650, FOCUS 650 Gold 2021 (Y76551GXSFS)
Model: FOCUS SGX-550, FOCUS 550 Gold (SSR-550SGX)
Model: FOCUS SGX-500, FOCUS 500 Gold (SSR-500SGX)
Model: FOCUS SGX-450, FOCUS 450 Gold (SSR-450SGX)

Not Compatible with modulars of other brands and models.
Not Compatible with Seasonic Old Versions of
Modular Powers Below:
Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

* DO NOT mix use power cables between different brands and models. It may cause damage. Please check compatibility with us to ensure proper installation and operation.

Installation

PSU 8Pin plug into power supply side. (8Pin male connector is ATX 8 pin, not pci-e 8 pin. ) CPU 8Pin (4+4Pin) plug into M/B side. (EPS 4+4Pin used as 8Pin or 4Pin by sliding on/off the 4Pin. )
For motherboard requires a 4pin ATX 12V (CPU) connector, please detach a 4pin connector. For motherboard requires a 8pin EPS connector, please use the 4+4pin connector.

Questions

Q 1: Can I use it power for GPU Card?
A 1: No, although the CPU interface in the power panel is shared with the PCIE interface.

Q 2: Does it work with other brands of module power supplies?
A 2: No, it is only compatible with Seasonic FOCUS+G48 Series Modular Powers.
