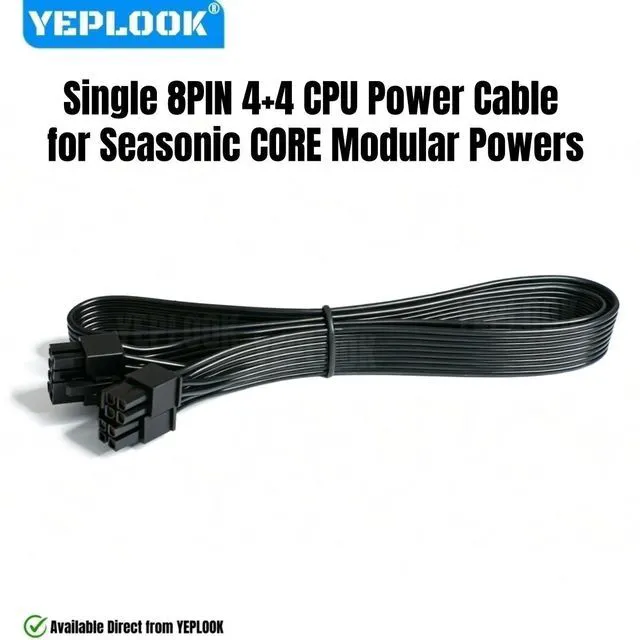

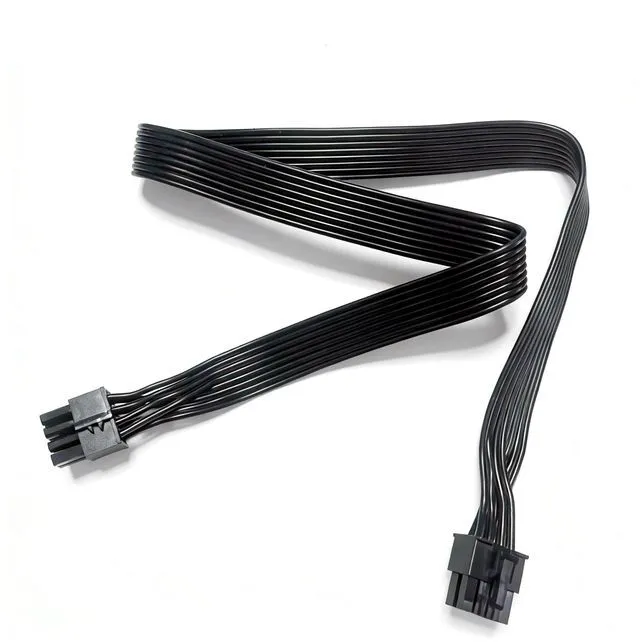

YEPLOOK CPU Power Cable PSU 8Pin to CPU 4+4Pin EPS/ATX12V for Seasonic CORE GX/GM/GC Series 500W, 550W, 650W Modular Powers, 60 CM 18AWG

YEPLOOK CPU Power Cable PSU 8Pin to CPU 4+4Pin EPS/ATX12V for Seasonic CORE GX/GM/GC Series 500W, 550W, 650W Modular Powers, 18AWG Tinned Copper Wire, 60 CM/ 23.6 in/ 1.97 ft

Description

Interface: PSU 8Pin to CPU Single 8Pin (4+4)
Length: about 60 CM / 1.97 ft. / 23.62 inch (Ideal length to keep case tidy).
Features: made of 18AWG standard sturdy tinned copper wire with solid connectors. Flexible flat cable, easy to bend with good cable management.
Package List: 1x CPU 4+4 Power Cable for Seasonic CORE GC/GM/GX All Series Modular Powers.

Installation:
PSU 8Pin plug into power supply side. CPU 8Pin (4+4) plug into motherboard side. CPU 4+4Pin used as 8Pin or 4Pin by sliding on/off the 4Pin.

1. For motherboard requires a 4pin ATX 12V (CPU) connector, please detach a 4pin connector.

2. For motherboard requires a 8pin EPS connector, please use the 4+4pin connector.

This CPU Power Cable is Compatible with Seasonic CORE All Series Modular Powers Below:

Compatible with Seasonic CORE GC Series 80+
Gold Semi-Modular Powers:
Model: CORE GC-650, SSR-650LC
Model: CORE GC-550, SSR-550LC
Model: CORE GC-500, SSR-500LC

Compatible with Seasonic CORE GM Series 80+
Gold Semi-Modular Powers:
Model: CORE GM-650, SSR-650LM
Model: CORE GM-550, SSR-550LM
Model: CORE GM-500, SSR-500LM

Compatible with Seasonic CORE GX Series 80+
Gold Full-Modular Powers:
Model: CORE GX-650, SSR-650LX
Model: CORE GX-550, SSR-550LX
Model: CORE GX-500, SSR-500LX

Not Compatible with modulars of other brands and models. DO NOT mix use power cables between different brands and models. It may cause damage. Please check compatibility with us to ensure proper installation and operation.

Not Compatible with Seasonic Old Versions of
Modular Powers Below:
Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.
