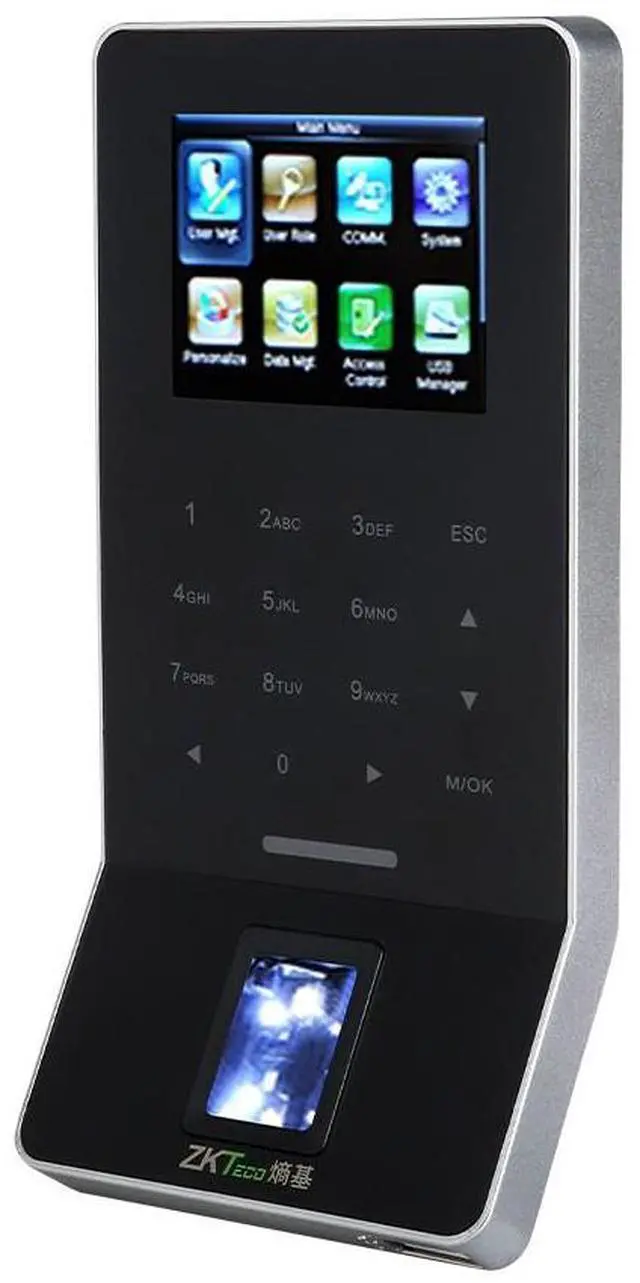

ZKTeco F22 TCP/IP WiFi 2.4'' Biometric Fingerprint Door Access Time Attendance
- Description:

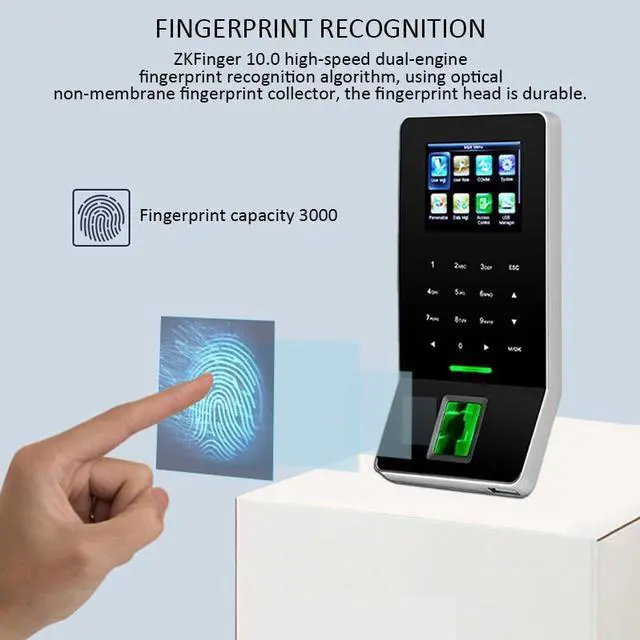

- F22 is an ultra-thin fingerprint time attendance and access control terminal with Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high-image quality infrared detection fingerprint sensor.
- F22 provides a superior touching experience with touch keypad, andoffers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP and Wi-Fi are also available that the device can be used in different networks.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features:
2.4-inch TFT color screen and Touch keys
Ultra thin and elegant design
Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
Standard Wi-Fi
Network interface by TCP/IP
Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

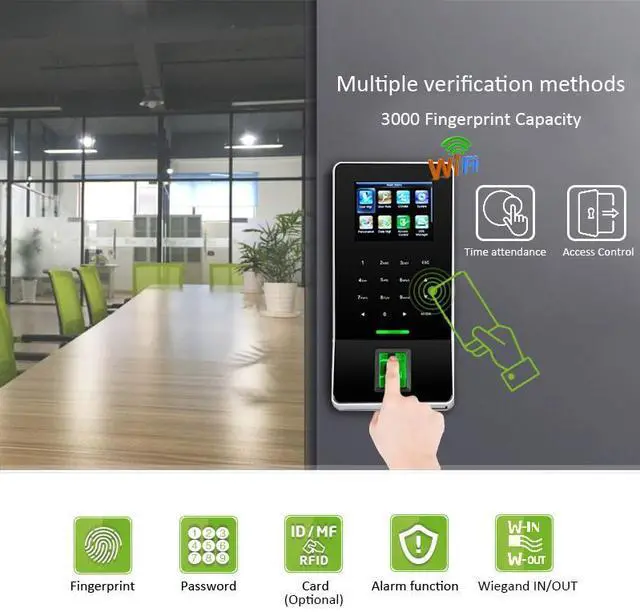

Multiple Verification Modes: Multi verification methods (card is optional) providing user various choices
Specifications:
Display: 2.4-inch TFT LCD Color Screen
Fingerprint Capacity: 3000
Card Capacity: 5000(Optional) ID or Mifare card
Transaction Capacity: 30,000
Sensor: Z-ID Sensor
Algorithm Version: ZKFinger V10.0
Communication: RS232*, RS485*, TCP/IP, USB-host, Wi-Fi

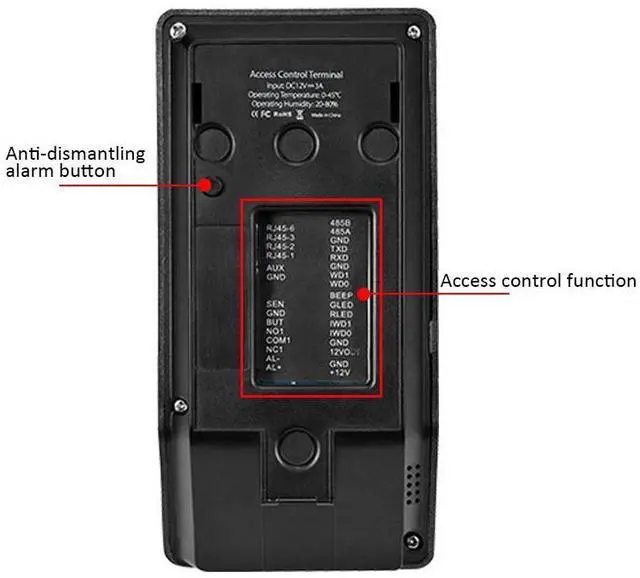

Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal Input, OutputAux. Input 1ea for linkage function
Functions: DST, Automatic Status Switch (Optional), Record query, T9 input, 14 digit user ID (Optional), Anti-passback, Scheduled-Bell, Printer(Optional), ADMS
Power Supply: 12V DC,3A
Operating Temperature: 0 °C- 45 °C
Operating Humidity: 20%-80%

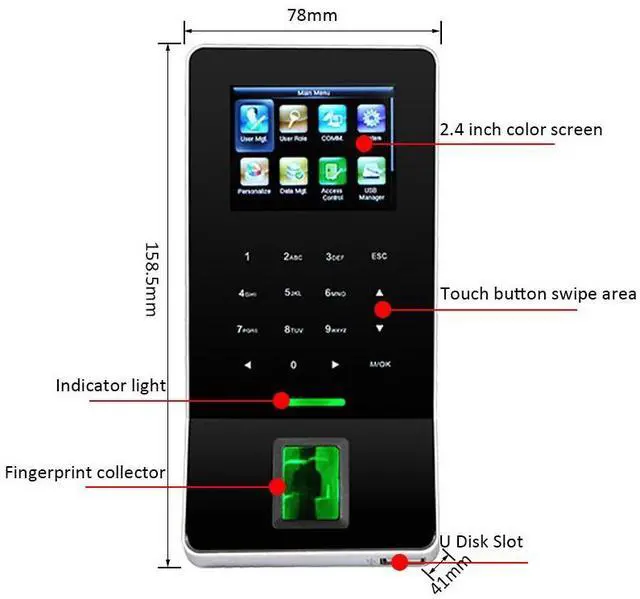

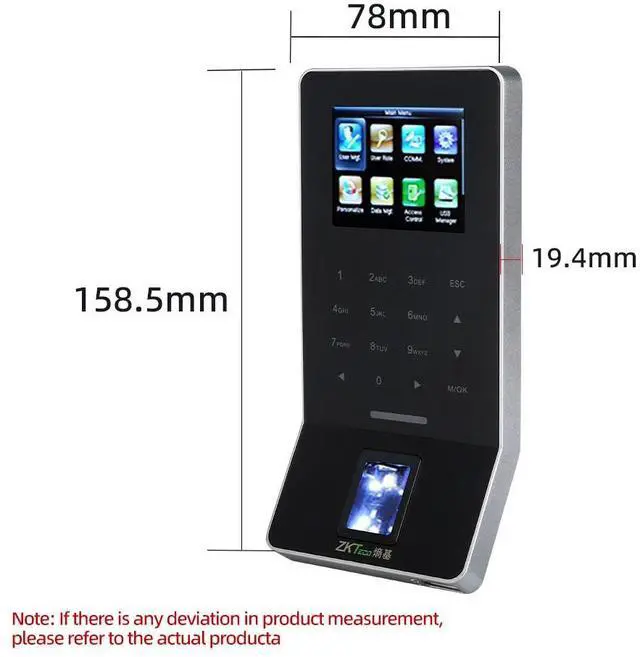

Dimension(LxWxH): 158.5x78.0x19.4mm
SDK and software: Standalone SDK, ZKBio CVAccess
