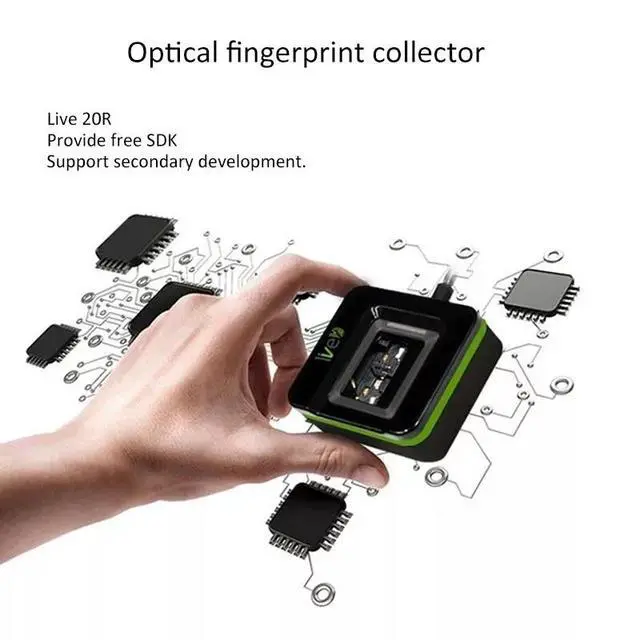

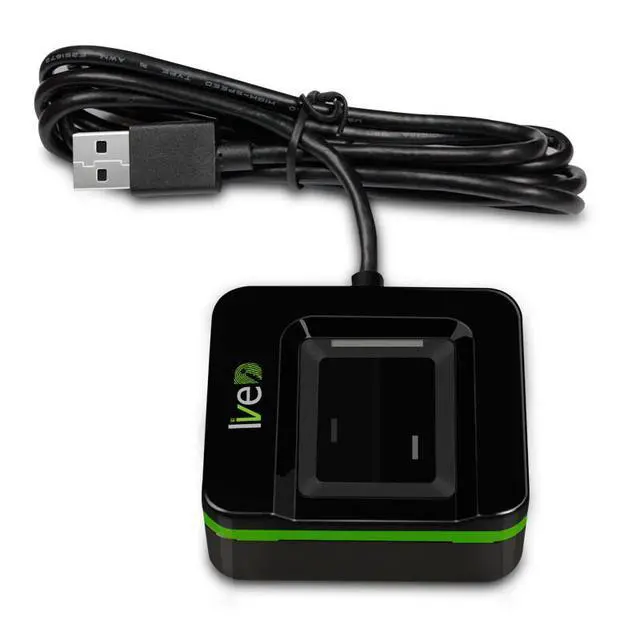

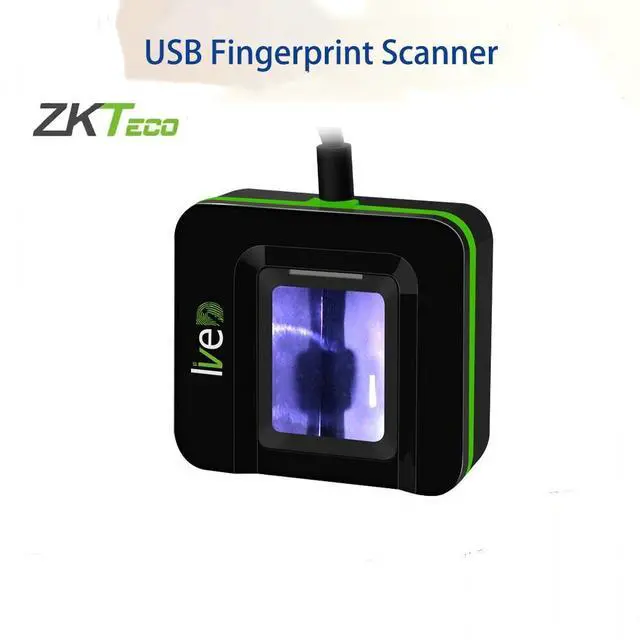

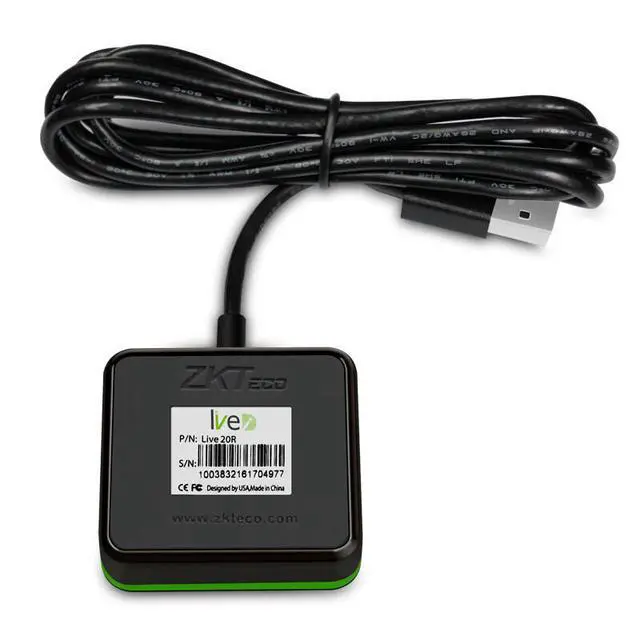

ZKTeco Live20R USB Biometric Fingerprint Scanner Sensor Reader Free SDK Live 20R
- ZK Live 20R fingerprint is the latest instrument is more compact a fingerprint device, surface of the hard steel material, appearance is extremely elegant, the output images up to 500dpi, is a superior performance compared to the fingerprint input device, you can a wide range of applications in social security, public security, attendance, fingerprint encryption, embedded, and many other applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features:
-Small size.
-Excellent image qualit.
-Encrypted image data.
-Refused to subtle fingerprints.
-Refused to fake the image.
-Support the fingerprint rotation.
-Rough fingerprint processing.
-Support dry, wet, or rough fingerprin.

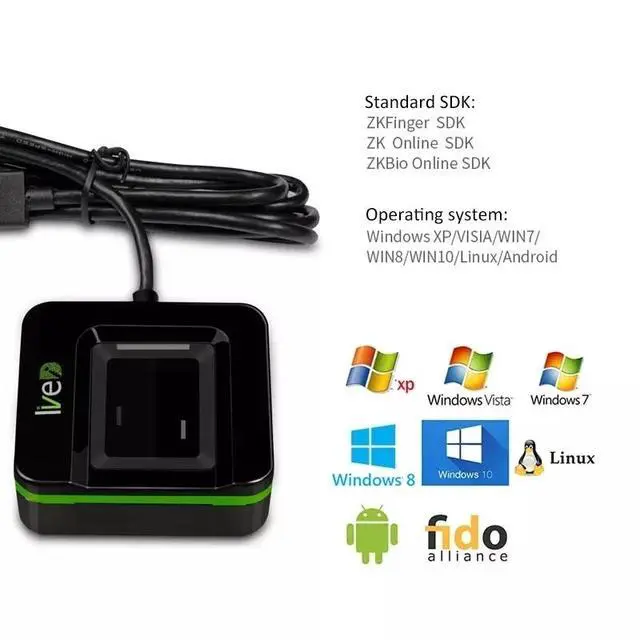

-Driver support 10,Support free SDK for secondary development, support for language: CB, VB, VC, Delphi, PB8, VBdemo, VF
Specifications:
1.Fingerprint sensor: ZK Optical Sensor with strengthen film
2.Resolution: 500DPI/256 grayscale(8-bit)
3.Scan size: 15.24*20.32mm(FAP20)
4.Image size: 300*400
5.Interface: USB1.1, compatible with USB1.0,1.1,2.0
6.Registration speed: <0.5 sec
7.Registration angle: 360°C
8.Operating Temperature: -20°C - 50° C
9.Operating Humidity: 0-90%
10.Operating System: WINDOWS7/8/10/XP/VISTA(32/64BIT) linux(32/64bit)/android/IOS
11.USB cable length: 180 CM
12.Dimension (L*W*H): 124.5mm*102mm*34mm
13.Power Supply: 5.0V +/- 0.25V ( USB interface power)
14.Current : Capture fingerprint: max 250 mA
15.Idle mode : max 25 mA
16.Suspend mode : <0.5 mA
17.Size:49*49*18mm(L*W*H)
