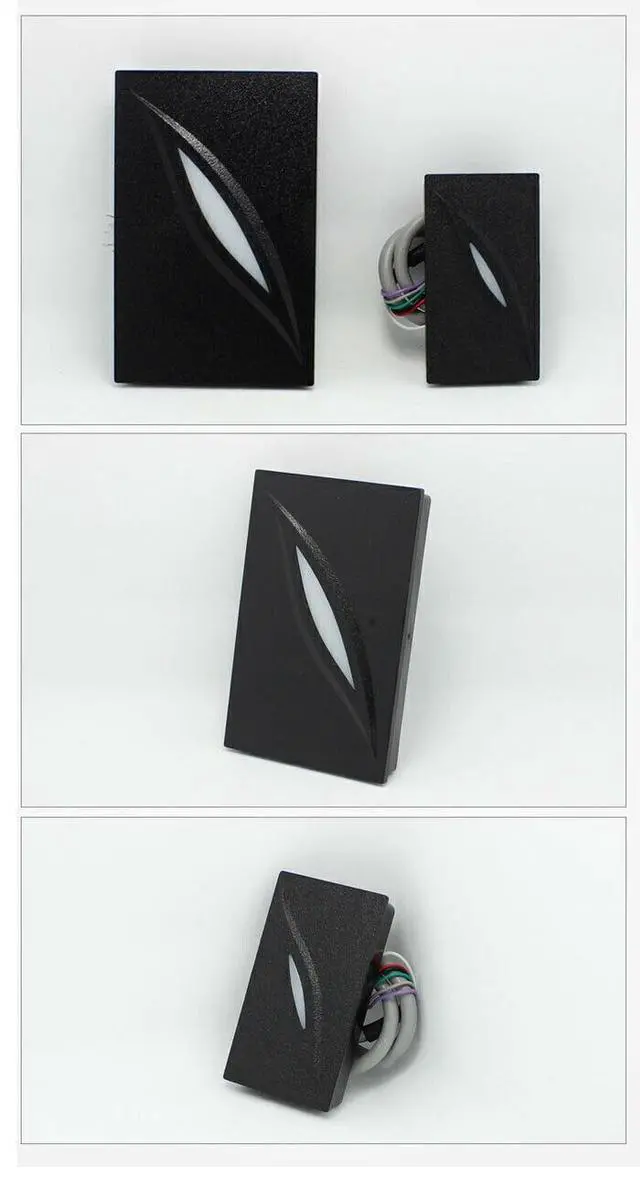

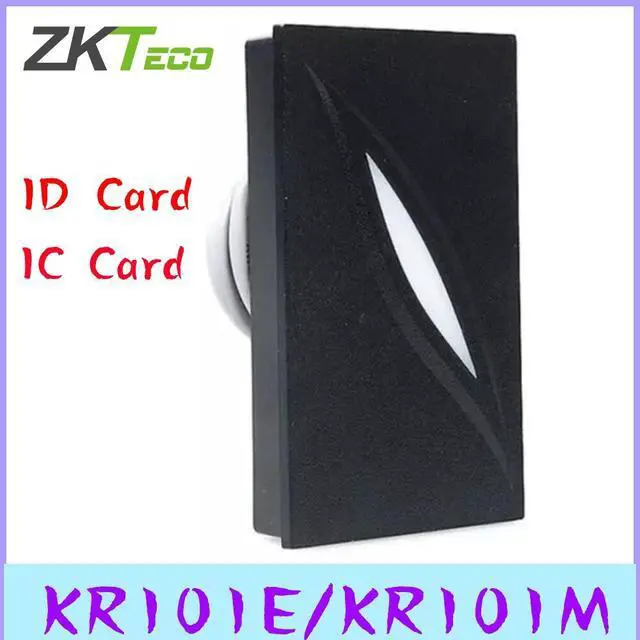

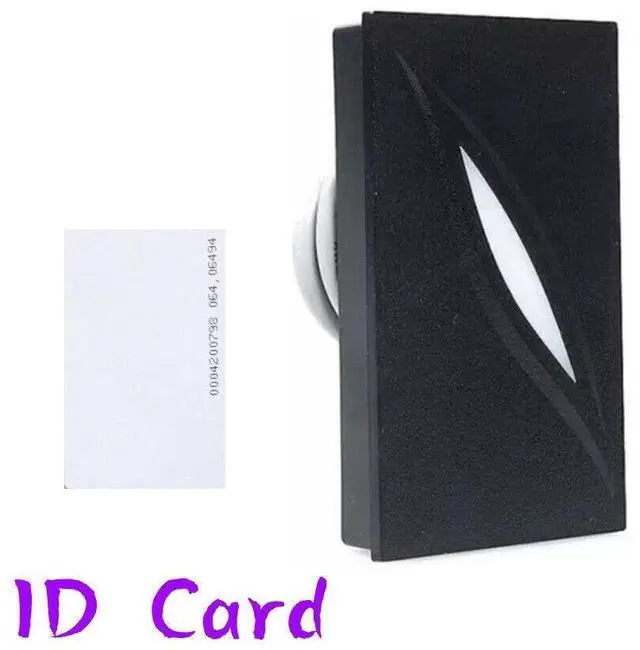

ZKTeco KR101E/KR101M Reader for Door Access Control Wiegand With ID/IC Card IP65
- The KR Series is the main accessories line of external wiegand readers for all our access control devices. With an elegant and
- robust design, they are easy to connect and install, and other the possibility to control one door from both sides. The LED lights
- indicate allowed or denied access. They have a proximity reading range of up to 10cm in the E series case and up to 5cm in the
- M series case. The fact that this series is waterproof, and the operating temperatures can range from -20º to +65º, it is the ideal
- solution for outdoor installation. Also they can be connected with our C3 controllers.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features:
- Easy to install
-125KHz Proximity/13.56MHz Mifare Card Reader
-Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
-26/34bit Wiegand (default)
-Easy to install on Metal Door Frame or Mullion
-External LED Control
-External Buzzer Control
-Indoor / Outdoor Operation
-Solid Epoxy Injection
-Waterproof IP65
-Reverse Polarity Protection
-Elegant and robust design
Card reader:
| Output Interface | Standard Wiegand34 |
| Operating Frequency | 13.56Mhz |
| Reader Card | IC (Mifare) Card |
| Transmitting Distance | WG<100M |
| Proximity Range | 3-15cm |
| Power Supply | DC5~16V, Standard DC12V |
| Static Power Supply | <30mA |
| Temperature | -10°C~70°C |
| Relative Humidity | 10%-90% |
| Recognition Speed | <=2s |
| Gap Speed | <=5s |
| Communication distance | 100m |
| Communication way | Real time |
| LED | Built-in LED (Double Color LED) |
| Buzzer | Built-in Loud Speaker |
| Color | Black Color |
| Material | ABS+PVC Material (Black Resin for Water-Proof Function) |
| Waterproof | IP65 Degree |
| Dimension | 78*43*16(mm) |
