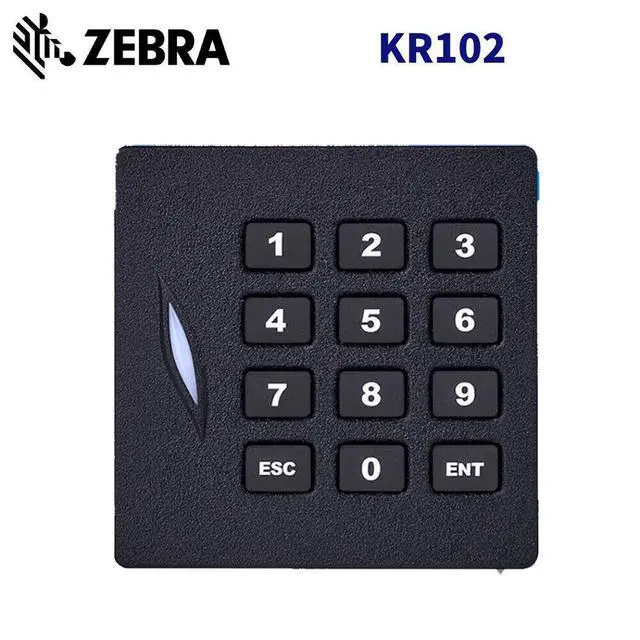

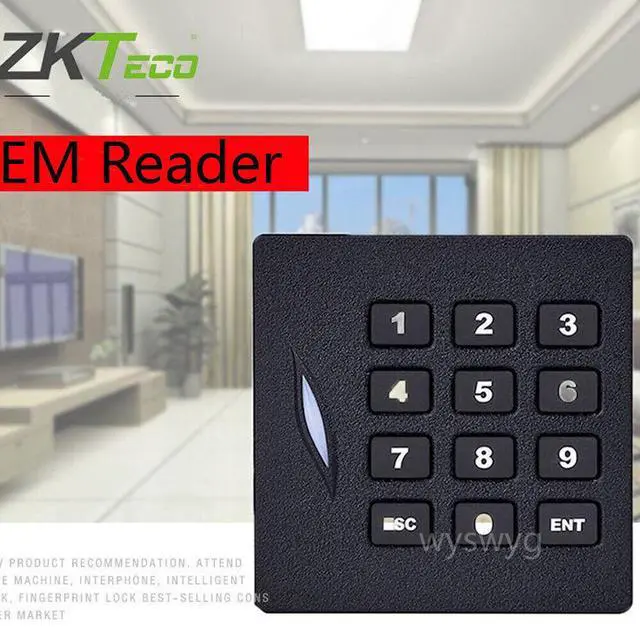

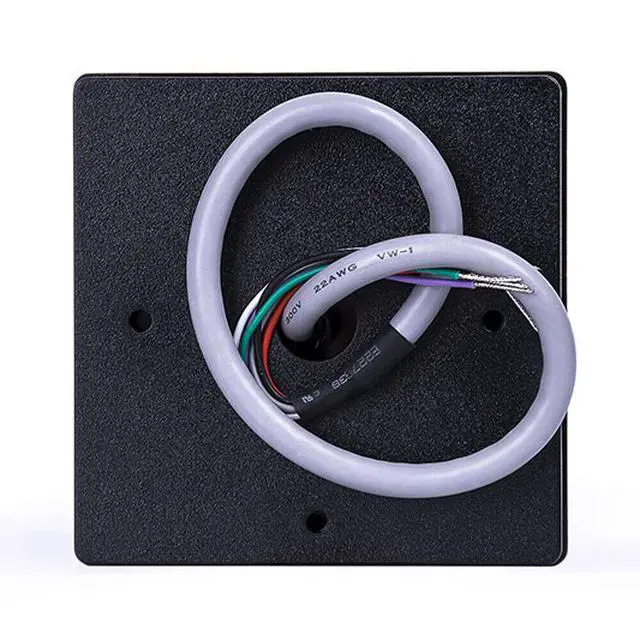

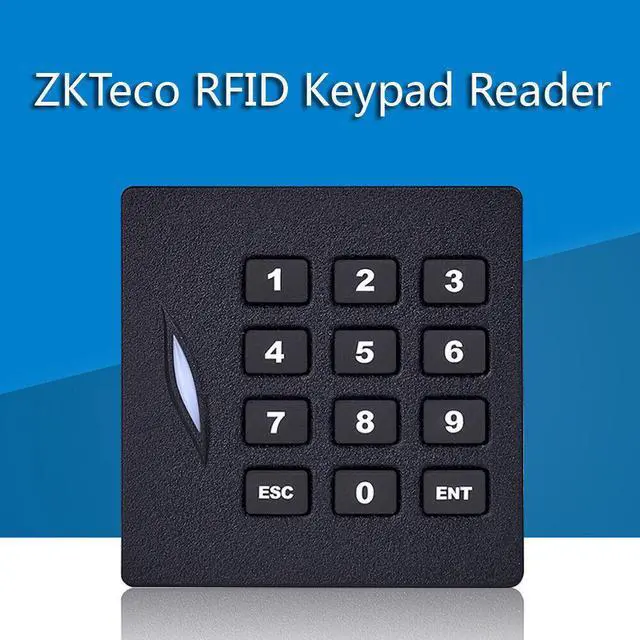

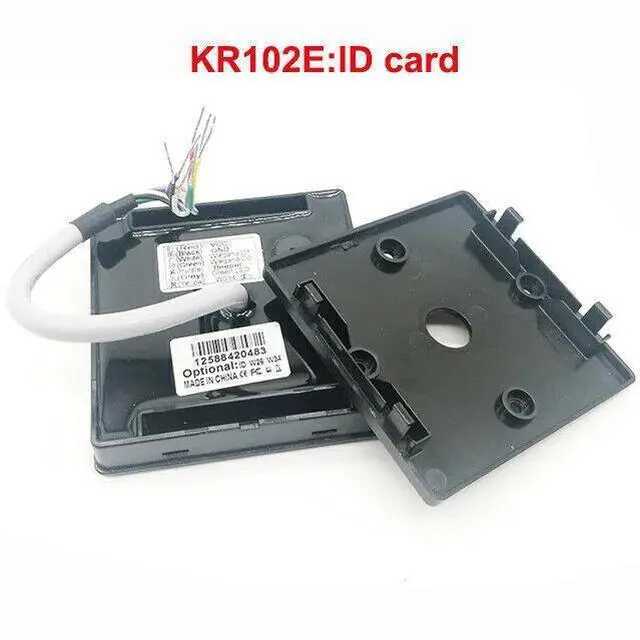

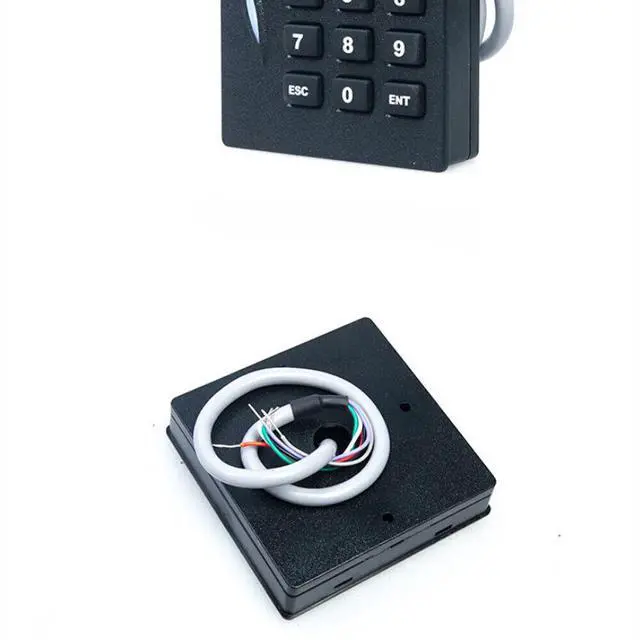

KR102E/M ID/IC Access Control Card Reader 125Khz 13.56Mhz Reader Wiegand 26/34
- Specifications :
- Read Range:KR102: Up to 5-10CM
- Size:KR102:86*86*20 mm
- Reading Time:200ms
- Input Port:External LED Control,External Buzzer Control
- Output Port:KR102E: 26 bit(Default)/34Bit Wiegand
- KR102M: 34 bit(Default)/26Bit Wiegand
- Power/Current:DC12V / Max.70mA
- LED:Red and Green LEDs
- Operating Temperature:-10°C to +70°C
- Material:ABS+PC with texture
- Operating Humidity:10% to 90% relative humidity ,non-condensing
- Beeper:Yes
- Operating Humidity:IP65
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Technical parameters
1. Operating frequency: 125KHz, or frequency 13.56MHZ
2. Working mode: WEIGAND 26/34
3. Card reading speed: <0.2s
4. Induction distance: 0~ 15CM
5. Card type: compatible with EM4100 chip ID card or ic card compatible with s50 card
6. Working temperature: -10~+70
7. Working voltage: 9V~16V
8.Working current: 35 mA static; 45 mA instant
9. Wiegand transmission distance: 100 meters
10. Appearance color: black, ABS material
11. Appearance size: KR100 115*75*18MM
12. Glue filling, waterproof design
13. With power reverse connection protection and data withstand voltage protection
14. Two-color LED indicator and buzzer tone
Safety protection
1. The output adopts glass discharge tube and semiconductor discharge circuit
2. The power supply adopts a protection circuit to prevent damage caused by man-made operation errors
3. Data ground distance simulation isolation, anti-interference
