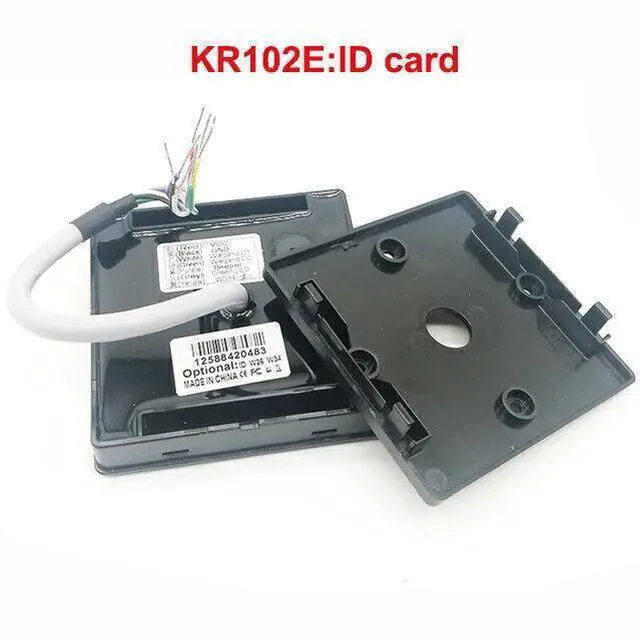

    KR102E/KR102M Access Control ID/IC Card Reader Swipe Password Keyboard Reader

    Be the first to review this product...
    • KR102E RFID 125khz
    • KR102M IC 13.56mhz
    • Specifications :
    • Read Range:KR102: Up to 5-10CM
    • Size:KR102:86*86*20 mm
    • Reading Time:200ms
    • Input Port:External LED Control,External Buzzer Control
    • Output Port:KR102E: 26 bit(Default)/34Bit Wiegand
    • KR102M: 34 bit(Default)/26Bit Wiegand
    • Power/Current:DC12V / Max.70mA
    • LED:Red and Green LEDs
    • Operating Temperature:-10°C to +70°C
    • Material:ABS+PC with texture
    • Operating Humidity:10% to 90% relative humidity ,non-condensing
    • Beeper:Yes
    • Operating Humidity:IP65
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

    Technical parameters

    1. Operating frequency: 125KHz, or frequency 13.56MHZ

    2. Working mode: WEIGAND 26/34

    3. Card reading speed: <0.2s

    4. Induction distance: 0~ 15CM

    5. Card type: compatible with EM4100 chip ID card or ic card compatible with s50 card

    6. Working temperature: -10~+70

    7. Working voltage: 9V~16V

    8.Working current: 35 mA static; 45 mA instant

    9. Wiegand transmission distance: 100 meters

    10. Appearance color: black, ABS material

    11. Appearance size: KR100 115*75*18MM

    12. Glue filling, waterproof design

    13. With power reverse connection protection and data withstand voltage protection

    14. Two-color LED indicator and buzzer tone


    Safety protection

    1. The output adopts glass discharge tube and semiconductor discharge circuit

    2. The power supply adopts a protection circuit to prevent damage caused by man-made operation errors

    3. Data ground distance simulation isolation, anti-interference
