Product Description
Note: This kit need the external power adapter to power on the device.

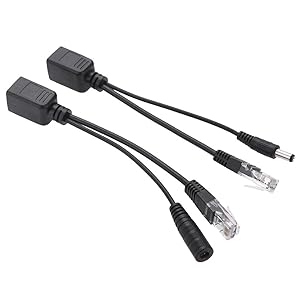

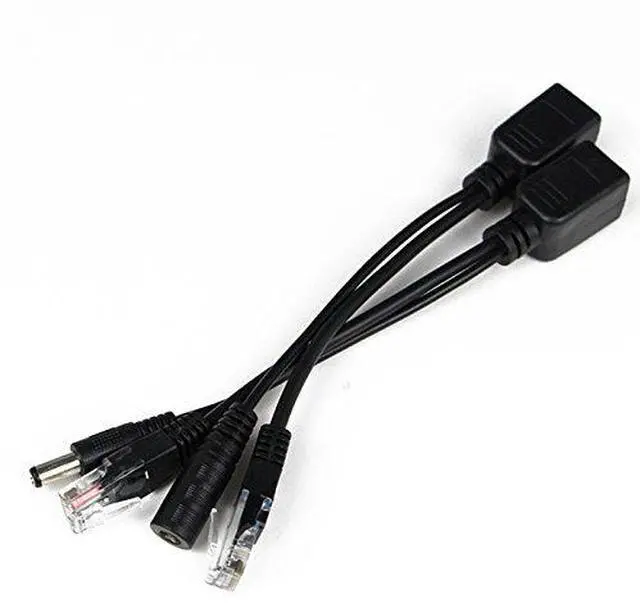

Passive PoE Injector and PoE Splitter Kit allows low cost of delivering power over the network cable for shorter distances.
This kit allows power to be carried on 10/100 networks over the spare, unused pairs of a CAT5, CAT5E, CAT6 or CAT7 Ethernet network cable.
On shorter network lengths, The power source could feed the wireless access point, IP video surveillance camera,Ip phone etc.
Package Include:

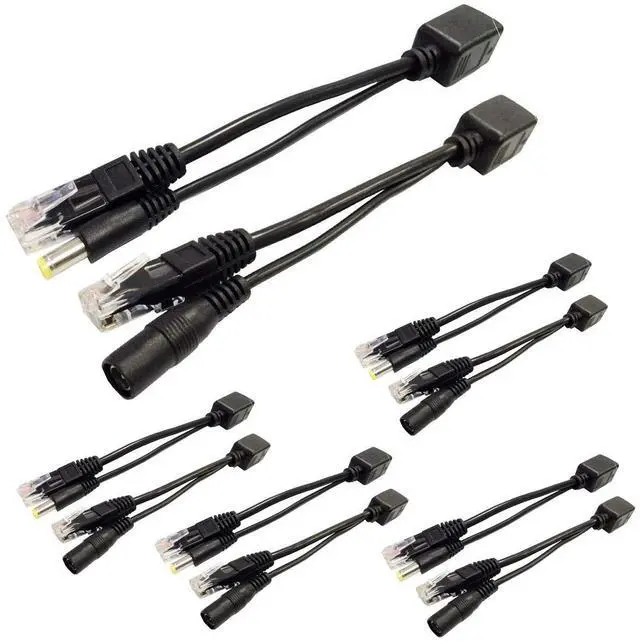

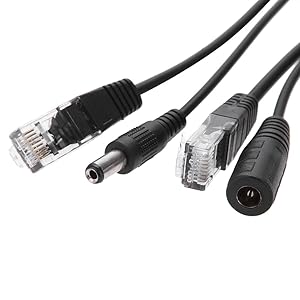

5 Pairs POE Splitter Cable
(5pcs with DC Male plug and 5pcs with DC Female Plug)
This Kit contains both very cost effective injector and splitter.

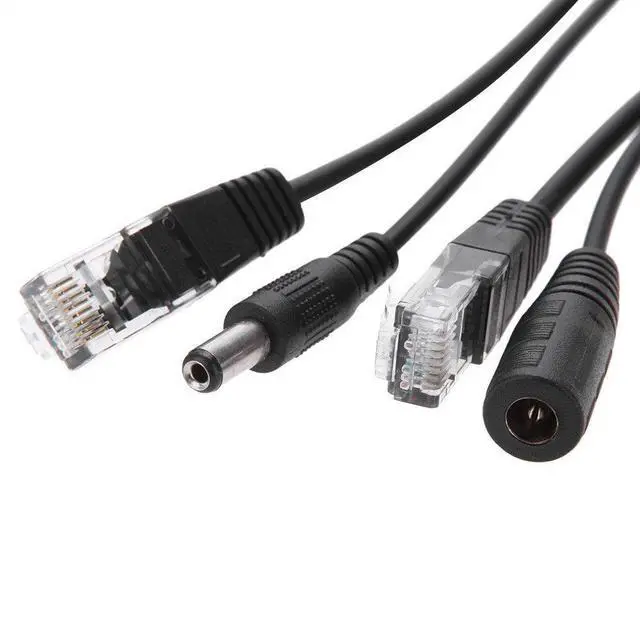

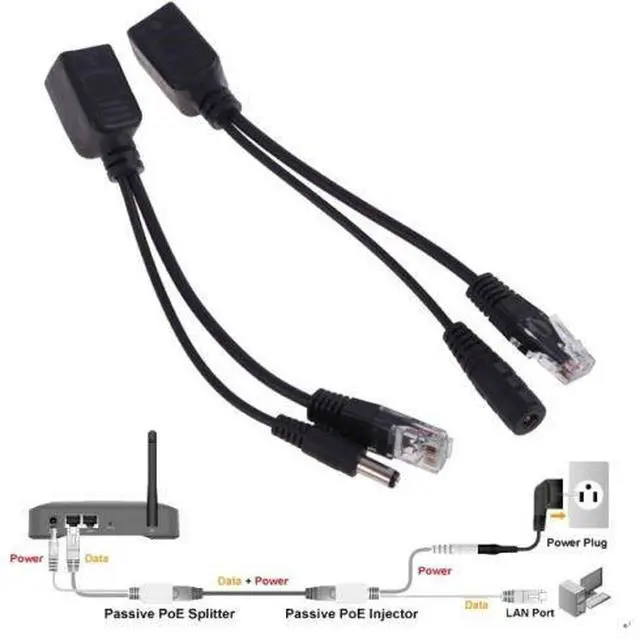

The injector inserts the DC voltage at the source location into the 5.5mm x 2.1mm injector plug
Then the DC voltage run through the spare pairs of the 10BASE-T or 100BASE-T network cable to the Splitter side,
And the splitter splits the DC voltage from the network cable into the 5.5mm x 2.1mm DC jack. Power feed Pins: 4/5(+), 7/8(-)
Recommended products you may need

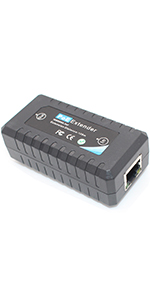

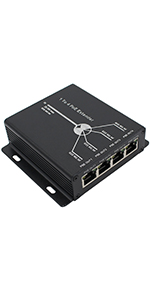

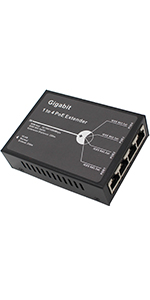

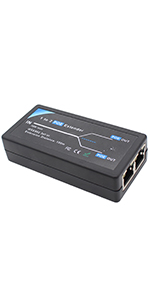

 Gigabit POE Extender 4 Port |  POE Extender 4 Port |  POE Extender 2 Port |  POE Extender 1 Port | |
|---|---|---|---|---|
