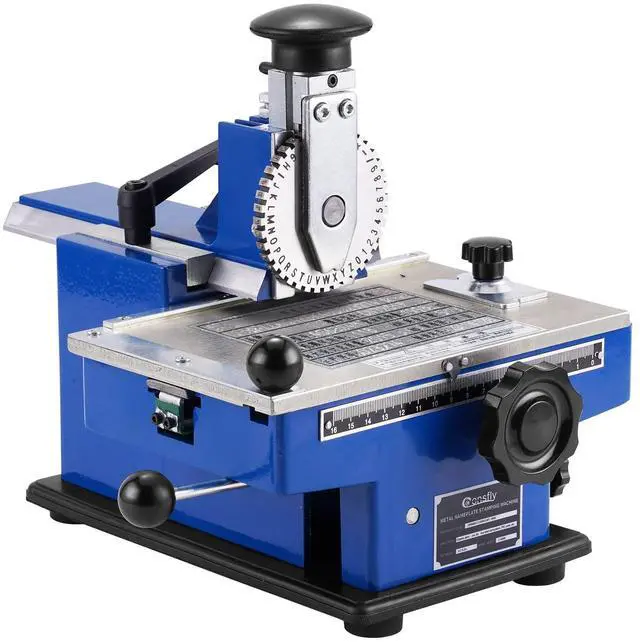

Metal Nameplate Stamping Machine Semi-Automatic Embosser Label Printing Marking Machine Dog Tag Printer (4mm Character Wheel)

[Working
Principle]: Under external force (applied by hand or with a rubber hammer), the high-frequency quenched and heat-treated alloy steel wheel will impress letters or numbers to a specific depth ( 0.1 ~ 0.3 mm) onto a metal surface.
[Features]: The heat-treated steel wheel can be rotated to choose the required letters or numbers, and the typeface can be changed with ease. Word spacing can be manually adjusted. Different character heights can be achieved by switching the wheel.

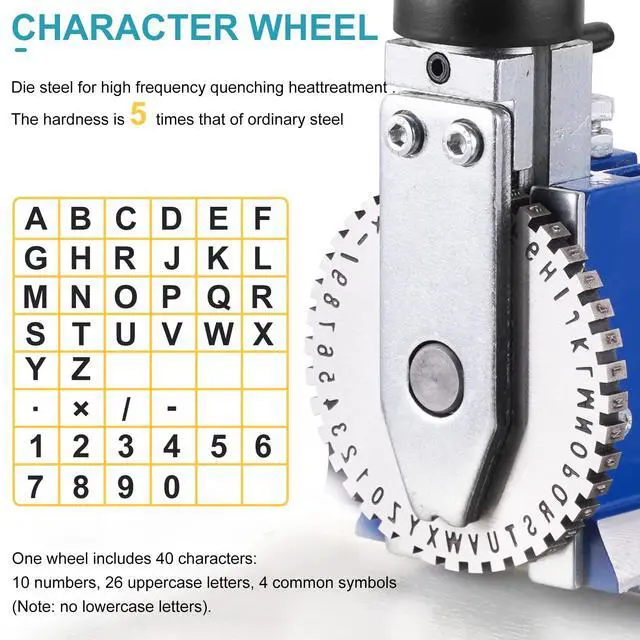

[40 Characters]: One
wheel contains 40 characters: 10 numbers, 26 uppercase letters, and
4 common symbols (Note: lowercase letters are not included).
[Size of the Wheel]: - No.
2 wheel: Font height 2mm, Font width 1mm. - No.
2.5 wheel: Font height 2.5 mm, Font width 1.25 mm. - No.
3 wheel: Font height 3mm, Font width 1.5 mm. - No.
4 wheel: Font height 4mm, Font width 2mm. - No.
5 wheel: Font height 5mm, Font width 2.5 mm. - No.
6 wheel: Font height 6mm, Font width 2.8 mm.
[Application]: Used for marking altered parameters on metal plates, such as specific model, date, batch number, and serial number
