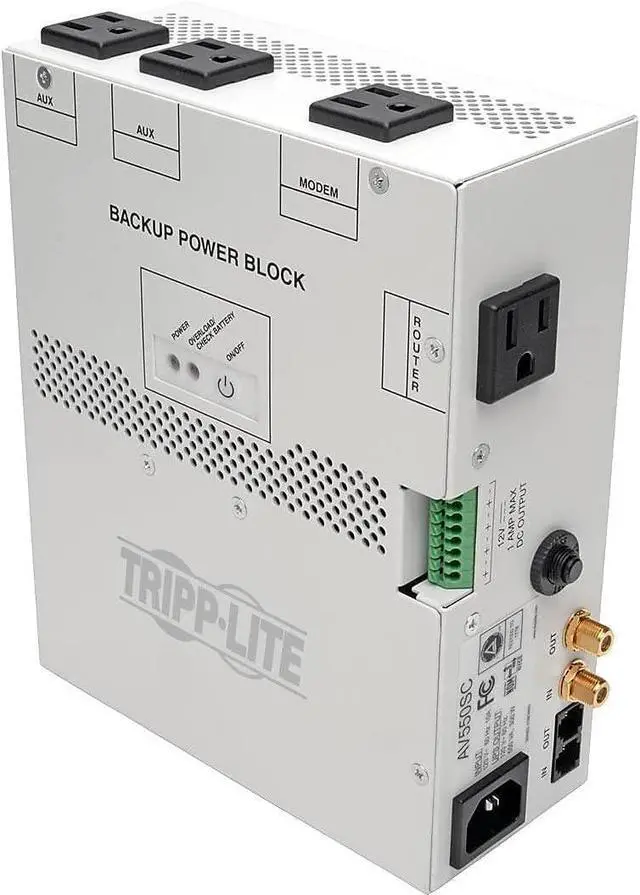

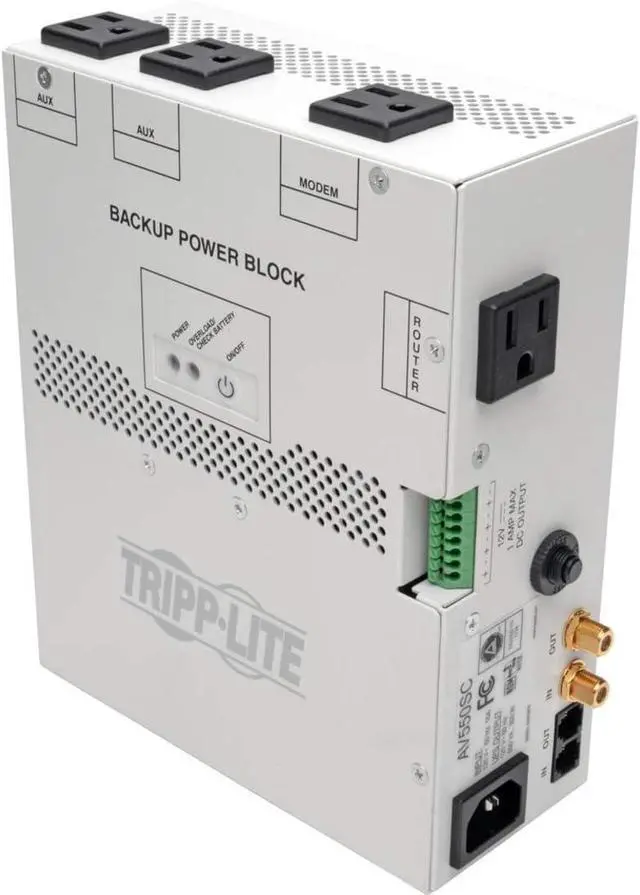

Tripp Lite 550VA Audio/Video Backup Power Block UPS - Exclusive UPS Protection for Structured Wiring Enclosure (AV550SC)

Open a Support Ticket Fill in an online form describing your issue. We'll respond by email in one business day. Create a Support Ticket Support Chat Knowledgeable product specialists are available now. Start Chatting Call UsWhen you need immediate help, call us! Our average wait time is under 1 minute. +1 (773) 869-1234 (7 AM - 6 PM CST) Warranty & InsuranceProduct RegistrationWarranty CoverageExtended WarrantiesWarranty LookupInsurance CoverageInsurance Claims Product ReturnsHow to Return a ProductRequest a Return Authorization (RMA) Support Knowledge Base & DownloadsPowerAlert SoftwareDriversFirmwareOwner's ManualsKnowledge Base Support ResourcesSoftware Knowledge BaseReplacement PartsHow to Find a Product Serial NumberReseller Support Adding or Replacing UPS BatteriesMultiple Brands AvailableUPS Battery Finder Extended Warranties & On-Site ServicesSee Your Options UPS & Battery RecyclingLearn More Visio StencilsBIM ObjectsVisio Stencils | BIM Objects | All Design Resources The Cisco Compatible logo signifies that Tripp Lite's product has undergone interoperability testing by Tripp Lite together with Cisco and a third-party test house based on testing criteria set by Cisco.

Tripp Lite is solely responsible for the support and warranty of its product. Cisco makes no warranties, express or implied, with respect to Tripp Lite's product or its interoperation with the listed Cisco product (s) and disclaims any implied warranties of merchantability, fitness for a particular use, or against infringement. Cisco, the Cisco logo, and Cisco Systems are trademarks or registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. 4 AC outlets (including 1 delay-on outlet for router) Automatic recycle/reset button; Auto-restart capability Regulated 12V DC output for 4 devices; Complete surge suppression Convenient installation fits structured wiring enclosures without using mounting screws or brackets HD-compatible 2.2GH z coaxial and telephone/modem/DSL line surge protection; 550VA UPS capacity Overview The AV550SC Backup Power Block provides the highest level of protection for structured cabling installations (ie.

telephone, Internet and coax connections). With reliable battery backup, surge protection and EMI/RFI line noise filtering, the AV550SC provides a complete protection solution for audio/video distribution systems by supporting modems, routers, RF amplifiers, network interfaces, cameras, modulators and other equipment through all power problems. In the event of a power failure, the AV550SC includes an auto-restart feature that eliminates the need to perform an on-site restart. In addition, when a modem or router freeze-up occurs, the AV550SC features a recycle/reset button with sequential outlet startup for proper modem and router rebooting.

Features 3 widely-spaced AC outlets (2 Auxiliary, 1 Modem) power, reset or start up connected equipment during a blackout or system freeze-up (provide battery backup, surge protection and EMI/RFI filtering) - 4 outlets total Convenient installation designed to fit in the bottom left corner of structured wiring enclosures without the need for mounting screws or brackets 60-second delay-on AC outlet (router) powers and resets the router during a blackout or system freeze-up and delays router start-up for proper system rebooting (provides battery backup, surge protection and EMI/RFI filtering) 12V DC (1-Amp) output connector provides an additional output power source for 12V DC devices as well as battery backup protection for 4 devices Recycle/reset button resets connected equipment during system freeze-ups with sequential outlet startup HD-compatible 2.2GH z coax jacks protect connected coax lines against surge damage and filter disruptive EMI/RFI line noise.

Tel/modem/DSL jacks protect connected telephone, modem or DSL lines against surge damage and filter disruptive EMI/RFI line noise IEC power input connector accepts included 6-inch power co
