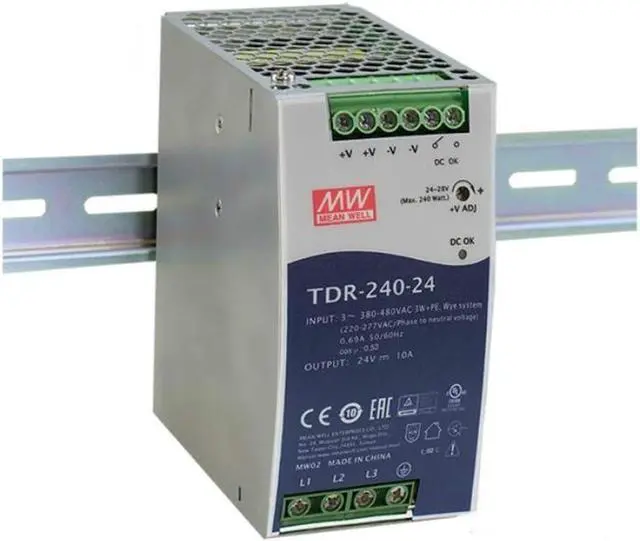

Meanwell TDR-240-24 Power Supply - 240W 24V 10A - Slim Three Phase Industrial DIN Rail

Features:
Three-Phase 340 ~ 550VAC wide range input(Dual phase operation possible)
63mm slim width
Built-in passive PFC function compliance to EN61000-3-2
High efficiency 92% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Full power between-30~+60
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL61010(industrial control equipment)approved
EN61000-6-2(EN50082-2) industrial immunity level
DC OK relay contact
3 years warranty

General Specification:
AC input voltage range:Three-Phase 340 ~ 550VAC (Dual phase operation possiblen in connecting L1,L3,FG or L2,L3,FG)or 480 ~ 780VDC
AC inrush current (Typ.):Cold start :50A
Overload protection:105~130% rated output power Protection type : Constant current limiting, unit will hiccup after 3 sec.
Over voltage protection:24V:30~36V, 48V:56~65V Protection type : Hiccup mode, recovers automatically after fault condition is removed.
Over temperature protection:Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
Setup, rise, hold up time:2000ms, 60ms/400VAC 1500ms, 60ms/500VAC at full load; 20ms / 400VAC 40ms / 500VAC at full load
Withstand voltage:I/P-O/P:4.87KVAC I/P-FG:2.4KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
Working temperature:-30~+70(Refer to Derating Curve)
Safety standards:UL61010-1,UL61010-2-201,EN61558-1, EN61558-2-16,EAC TP TC 004 approved
EMC standards:EN55032 (CISPR32) /EN61204-3 Class B ;EN61000-3-2,3;EN61000-4-2,3,4,5,6,8,11

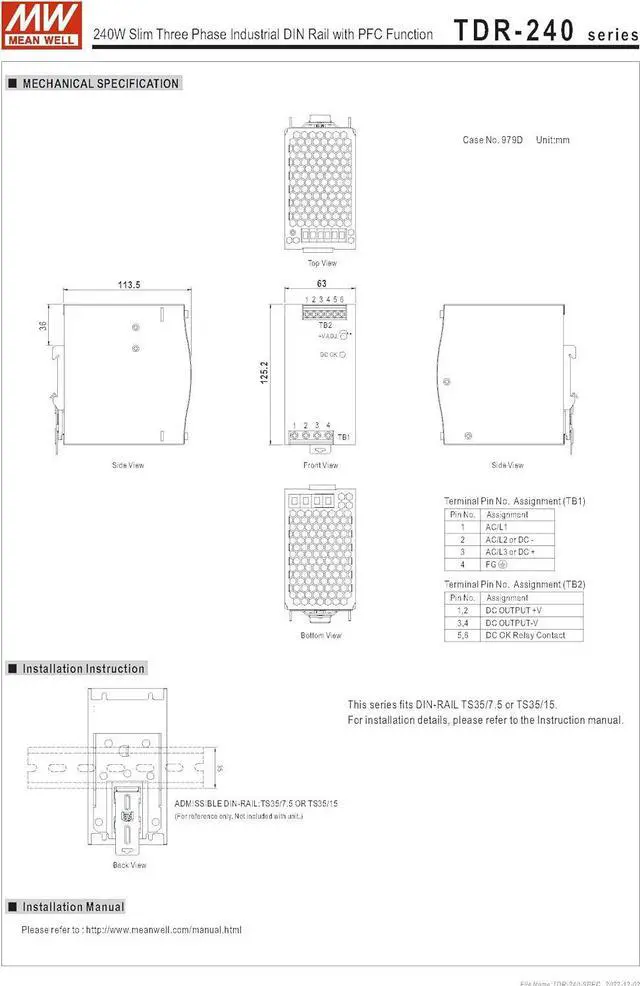

Dimension (WxHxD):63×125.2×113.5mm
