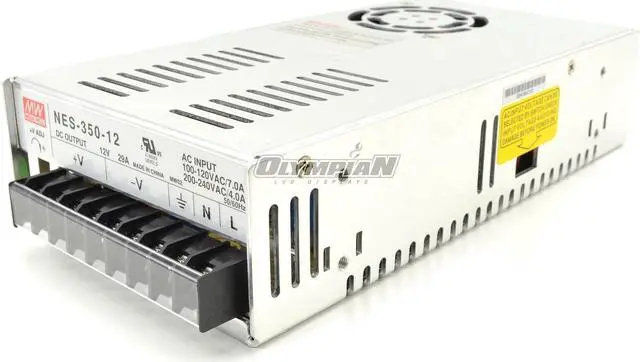

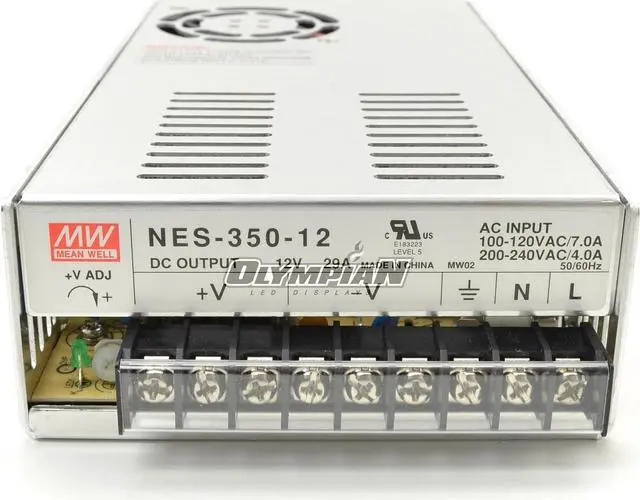

Mean Well NES-350-12 Switching Power Supply 12 Volt 350 Watt
- Dimensions:215 x 115 x 50mm (L*W*H).
- Output Voltage: 12.0 Volts.
- Output Current: 29.000 Amps.
- Max Power:348 Watts.
- Input Voltage:115/230vac select by switch.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
1.Mean Well NES-350-12 single output 12V power supply - enclosed type.
2.UL60950-1 safety approval.
3.AC input range selectable by switch.
4.Protections: Short circuit / Overload / Over voltage / Over temperature.
5.Forced air cooling by built -in DC fan.
6.Withstand 300vac surge input for 5 second.
7.Built-in cooling Fan On-Off control.
8.Built-in constant current limiting circuit.
9.LED indicator for power on.
10.100% full load burn-in test.
11.Fixed switching frequency at 90KHz.
12.Low cost,high reliability.

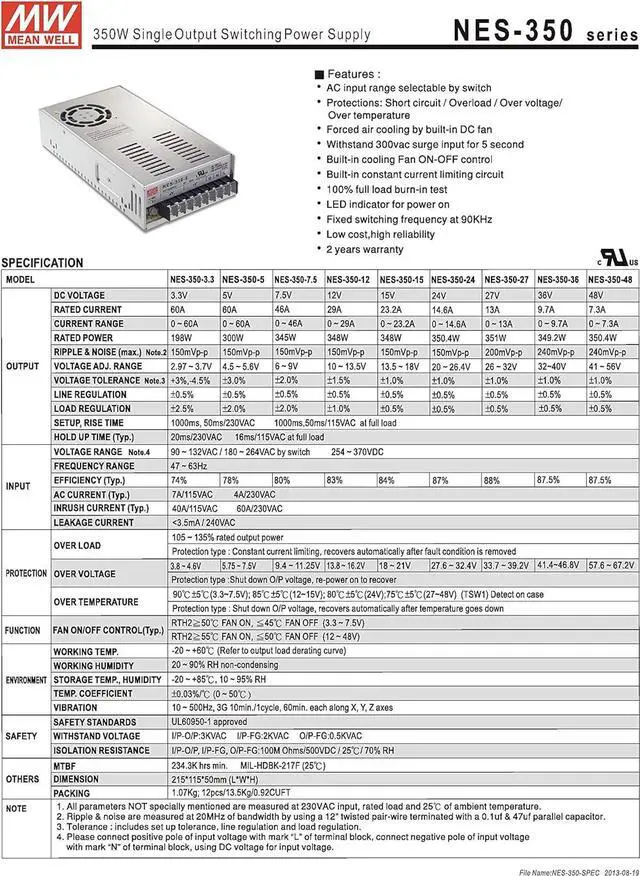

Specifications:
Manufacturer: Mean Well.
Product Category:Single Output LED Power Supply.
Input Voltage: 115/230vac select by switch.
Output Voltage: 12.0 Volts.
Output Current: 29.000 Amps.
Max Power: 348 Watts.
Dimensions: 215 x 115 x 50mm (L*W*H).
Series:NES-350.
1.Mean Well NES-350-12 single output 12V power supply - enclosed type.
2.UL60950-1 safety approval.
3.AC input range selectable by switch.
4.Protections: Short circuit / Overload / Over voltage / Over temperature.
5.Forced air cooling by built -in DC fan.
6.Withstand 300vac surge input for 5 second.
7.Built-in cooling Fan On-Off control.
8.Built-in constant current limiting circuit.
9.LED indicator for power on.
10.100% full load burn-in test.
11.Fixed switching frequency at 90KHz.
12.Low cost,high reliability.
Specifications:
Manufacturer: Mean Well.
Product Category:Single Output LED Power Supply.
Input Voltage: 115/230vac select by switch.
Output Voltage: 12.0 Volts.
Output Current: 29.000 Amps.
Max Power: 348 Watts.
Dimensions: 215 x 115 x 50mm (L*W*H).
Series:NES-350.
