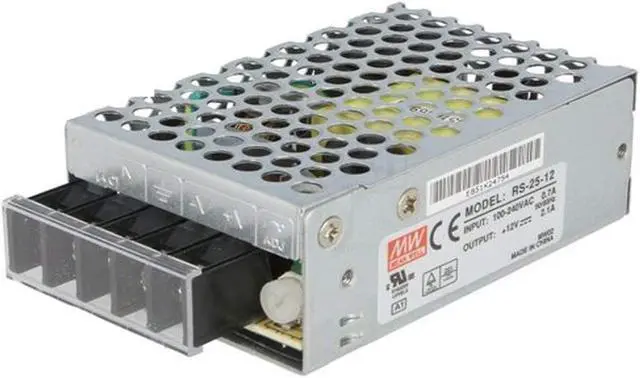

Meanwell RS-25-12 25W Single Output Switching Power Supply

Current Range: 0A to 2.1A; Rated Power: 25.2W; Rated Current: 2.1A; DC Voltage: 12V; Voltage tolerance: ±1.0%; Load Regulation: ±0.5%; Line Regulation: ±0.5%; Voltage ADJ. Range: 10.8V to 13.2V; SETUP, RISE, HOLD TIME: 1200ms, 20ms, 50ms/230VAC to 2200ms, 30ms, 12ms/115VAC
Frequency Range: 47Hz to 63Hz; Voltage Range: 88 to 264VAC to 125 to 373VDC; Leakage Current: <2mA / 240VAC; Inrush Current: Cold Start 36A/230VAC; AC Current: 0.7A/115VAC to 0.4A/230VAC; Efficiency: 79%
Operating Temperature: -20°C to +70°C; Relative Humidity: 20% to 90%RH; Storange Temperature: -40°C to +85°C; Relative Humidity: 10% to 95% RH; Temperature Coefficient: ±0.03%/°C (0°C to 50°C ); Panel Mount: 12v/2amp
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC; Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Applications: ITE EN/UL/IEC 60950

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

AC-DC Single Output Enclosed, Power Supply: Output 12V DC, Single Output at 2.1A; Free Air Convection
