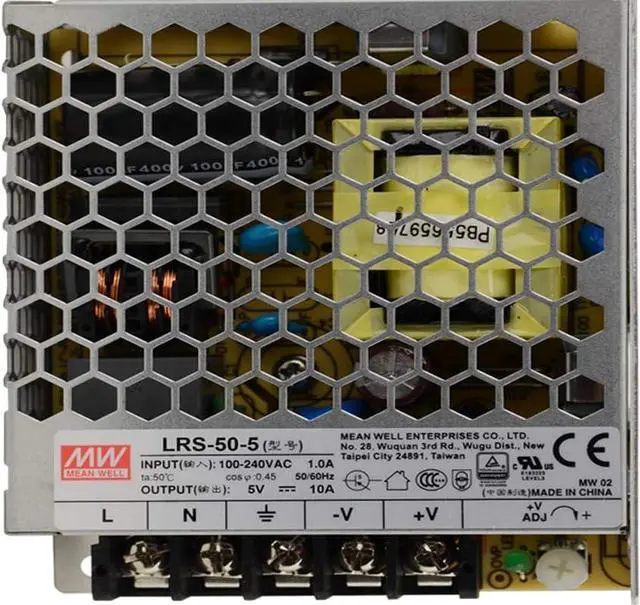

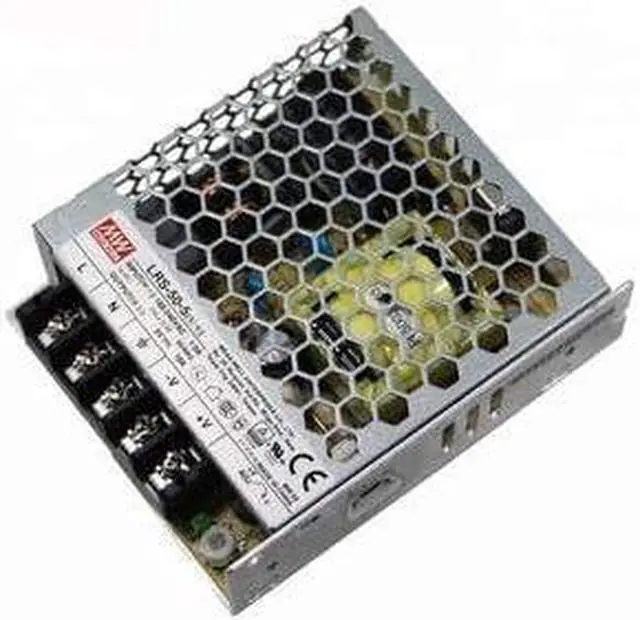

Meanwell LRS-50-5 50W Single Output Switching Power Supply
- Current Range: 0 to 10Amps ; Rated Power: 50W ; Rated Current: 10A; DC Voltage: 5V; Voltage tolerance: ±2.0%; Load Regulation: ±1.0%; Line Regulation: ±0.5%; Voltage ADJ. Range: 4.5V to 5.5V; Setup, Rise Time: 1000ms, 30ms/230VAC to 2000ms,30ms/115VAC; Hold up Time: 30ms/230VAC to 12ms/115VAC
- Frequency Range: 47Hz to 63Hz; Voltage Range: 85 to 264VAC to 120 to 373VDC; Leakage Current: <0.75mA / 240VAC; Inrush Current: Cold Start 45A/230VAC; AC Current: 0.95A/115VAC to 0.56A/230VAC Efficiency: 83%
- Operating Temperature: -30°C to +70°C ; Relative Humidity: 20% to 90% RH ; Storange Temperature: -40°C to +85°C; Relative Humidity: 10% to 95% RH; Temperature Coefficient: ±0.03%/°C (0°C to 50°C ); Panel Mount: 5v/10amp
- Withstand Voltage: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC; Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
- Applications: Household EN 60335ITE EN/UL/IEC 60950
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Meanwell Switched-Mode Power Supply (SMPS) is an electronic circuit that converts power using switching devices that are turned on and off at high frequencies, and storage components such as inductors or capacitors to supply power when the switching device is in its non-conduction state. Enclosed AC DC Converter 1; Output: 5V 10A 85 ~ 264 VAC, 120 ~ 373V DC Input
