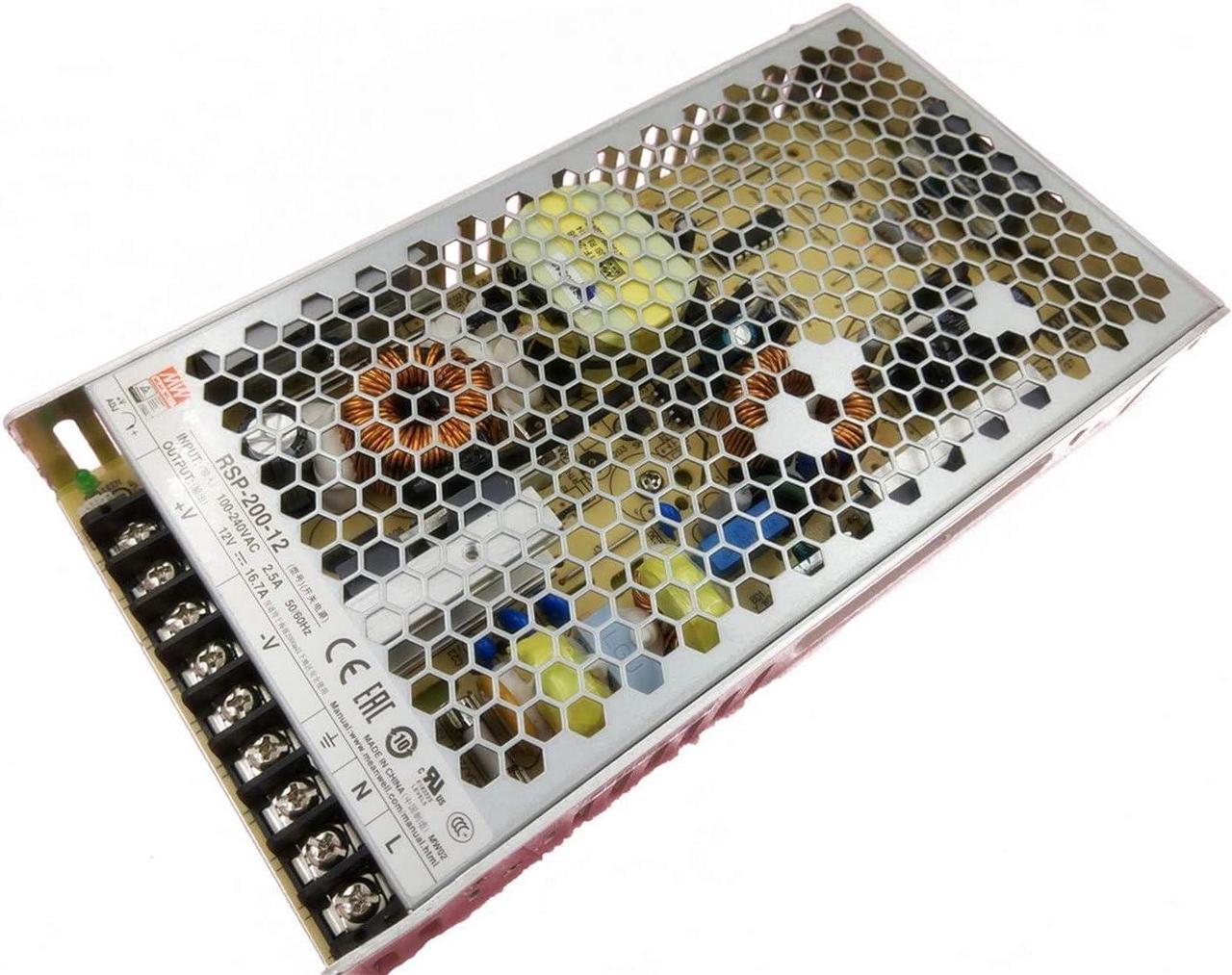

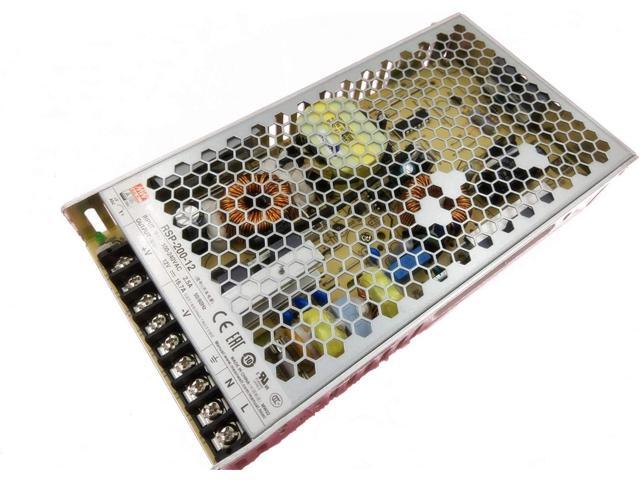

Meanwell RSP-200-12 Power Supply - 200W 12V 16.7A - Low Profile

Output Voltage: 12V
Approx. Wattage: 200W
Protections: Short circuit / Overload / Over voltage / Over temperature
Warranty: 3 Years Warranty

Overview

Specs

Reviews

Features:
Ultra low profile: 30mm
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in active PFC function
Cooling by free air convection
LED indicator for power on
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:88~264VAC; 124~370VDC
AC inrush current (max.):40A at 230VAC
DC adjustment range:±10% rated output voltage
Overload protection Range:105%~150%
Overload protection Type:Hiccup mode, auto-recovery
Over voltage protection Range:115%~145%
Over voltage protection Type:Shut down O/P voltage, re-power on to recover
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature:-30~+70°C (refer to output derating curve)
Safety standards:UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection:9P / 9.5mm pitch terminal block
Dimension (LxWxH):215x115x30
