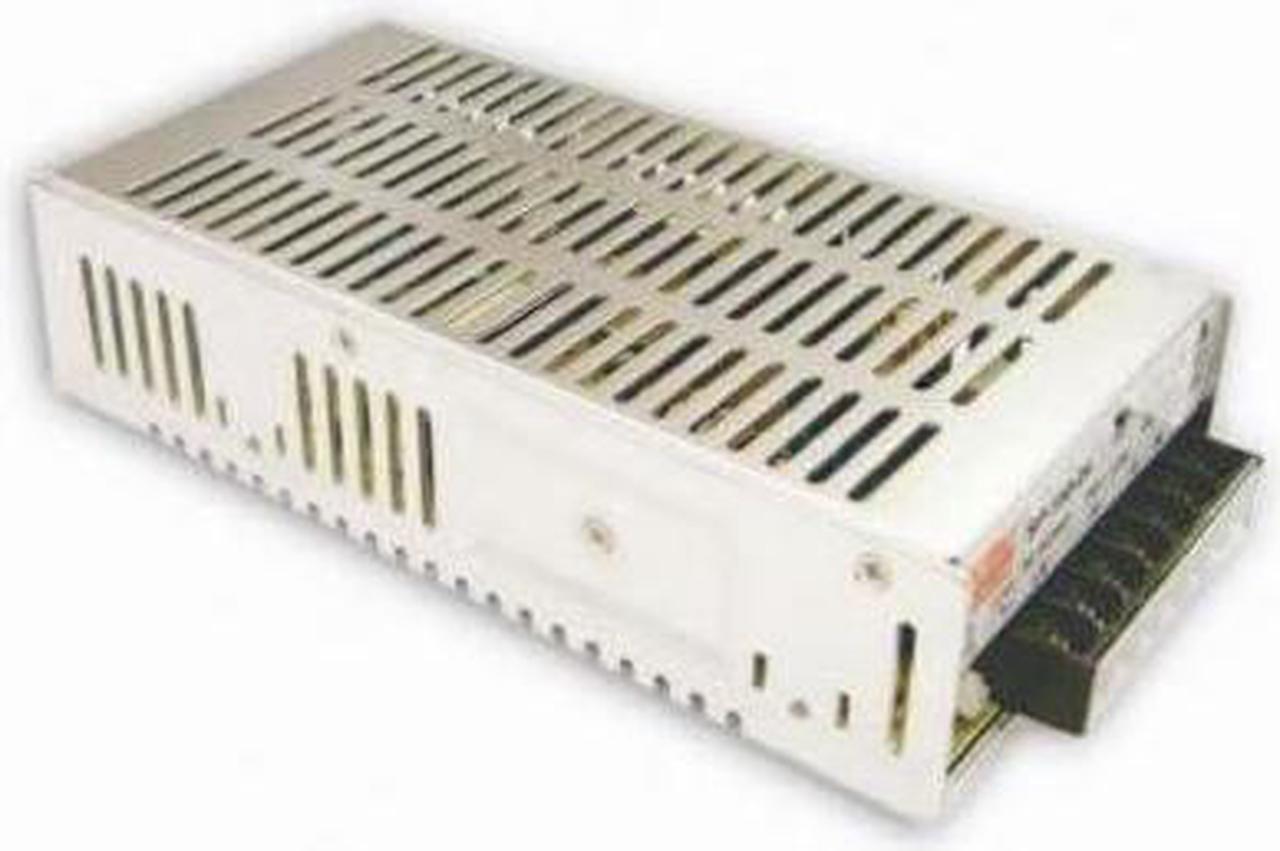

Main image of Meanwell SP-150-27 Power Supply - 150W 27V 5.6A - PFC

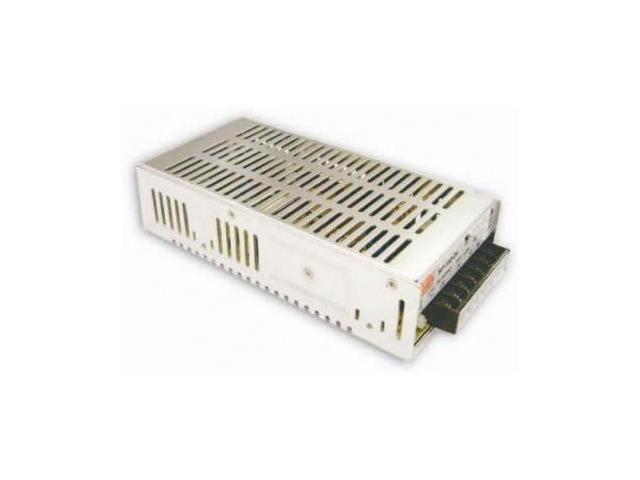

Alt view image 2 of 2 - Meanwell SP-150-27 Power Supply - 150W 27V 5.6A - PFC

Shop All Mean Well Products | Visit Office Equipment Store

Meanwell SP-150-27 Power Supply - 150W 27V 5.6A - PFC

Output Voltage: 27V
Approx. Wattage: 150W
Protections: Short circuit / Overload / Over voltage / Over temperature
Warranty: 3 Years Warranty

Overview

Specs

Reviews

Features:
Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Optional remote ON/OFF control
100% full load burn-in test
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:85~264VAC; 120~370VDC
AC inrush current (max.):Cold start, 45A at 230VAC
DC adjustment range:-5%~+10% rated output voltage
Overload protection Range:105%~150%
Overload protection Type:Constant current limiting, auto-recovery
Over voltage protection Range:110%~135%
Over voltage protection Type:Shut off, AC recycle to re-start
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature:-10~+55°C
Safety standards:UL60950-1, TUV EN60950-1,
EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
Connection:7P / 9.5mm pitch terminal block with cover
Dimension (LxWxH):199x 99x50
Case No.:916A
Packing:20pcs/16.4kg
