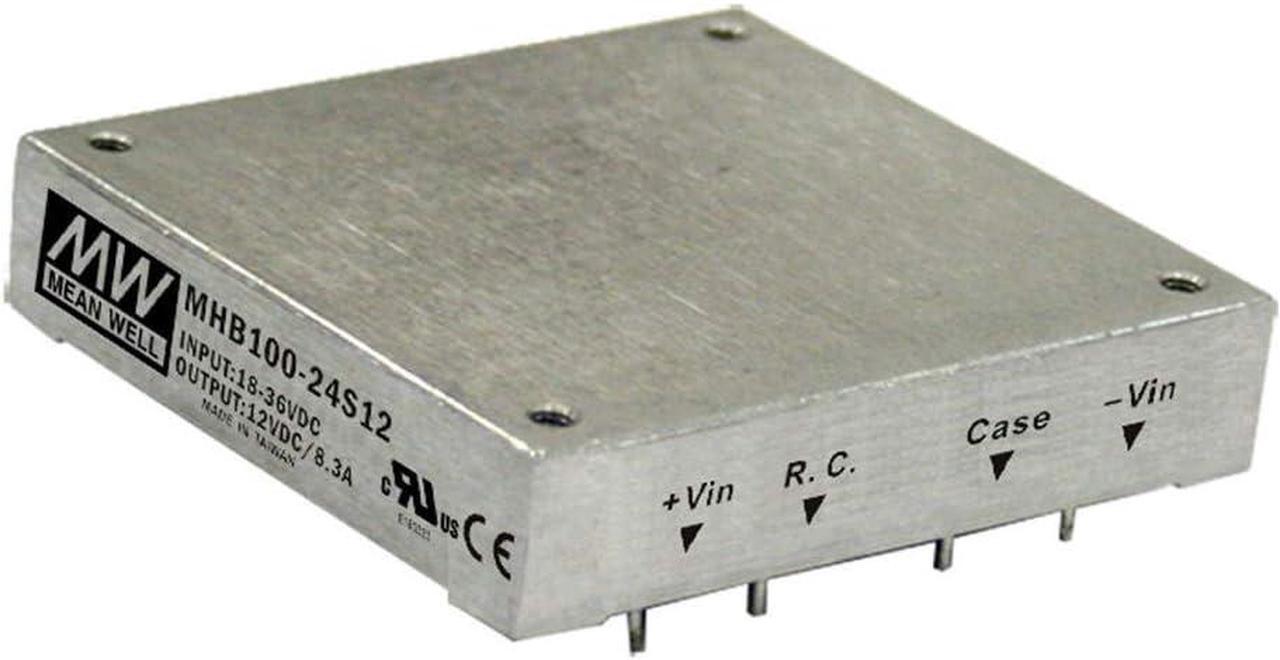

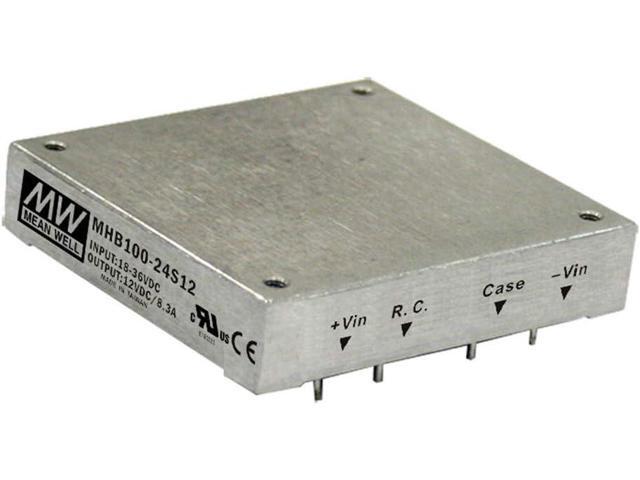

MEAN WELL MHB100-24S05 5V 0~20A 100W DC-DC Half-Brick Regulated Single Output Converter DC/DC Converter
- Half-brick size (2.28"x 2.4"x 0.5") with industry standard pin out
- Dual in line package
- 2:1 wide input range
- Protections: Short circuit / Over current / Over voltage / Over temperature
- 3 years warranty
+
+
Overview
Specs
Reviews
Features
Half-brick size (2.28"x 2.4"x 0.5") with industry standard pin out
Dual in line package
2:1 wide input range
1500VDC I/O isolation
Protections: Short circuit / Over current / Over voltage / Over temperature
Five-sided shield metal case
Cooling by free air connection
High efficiency up to 89%

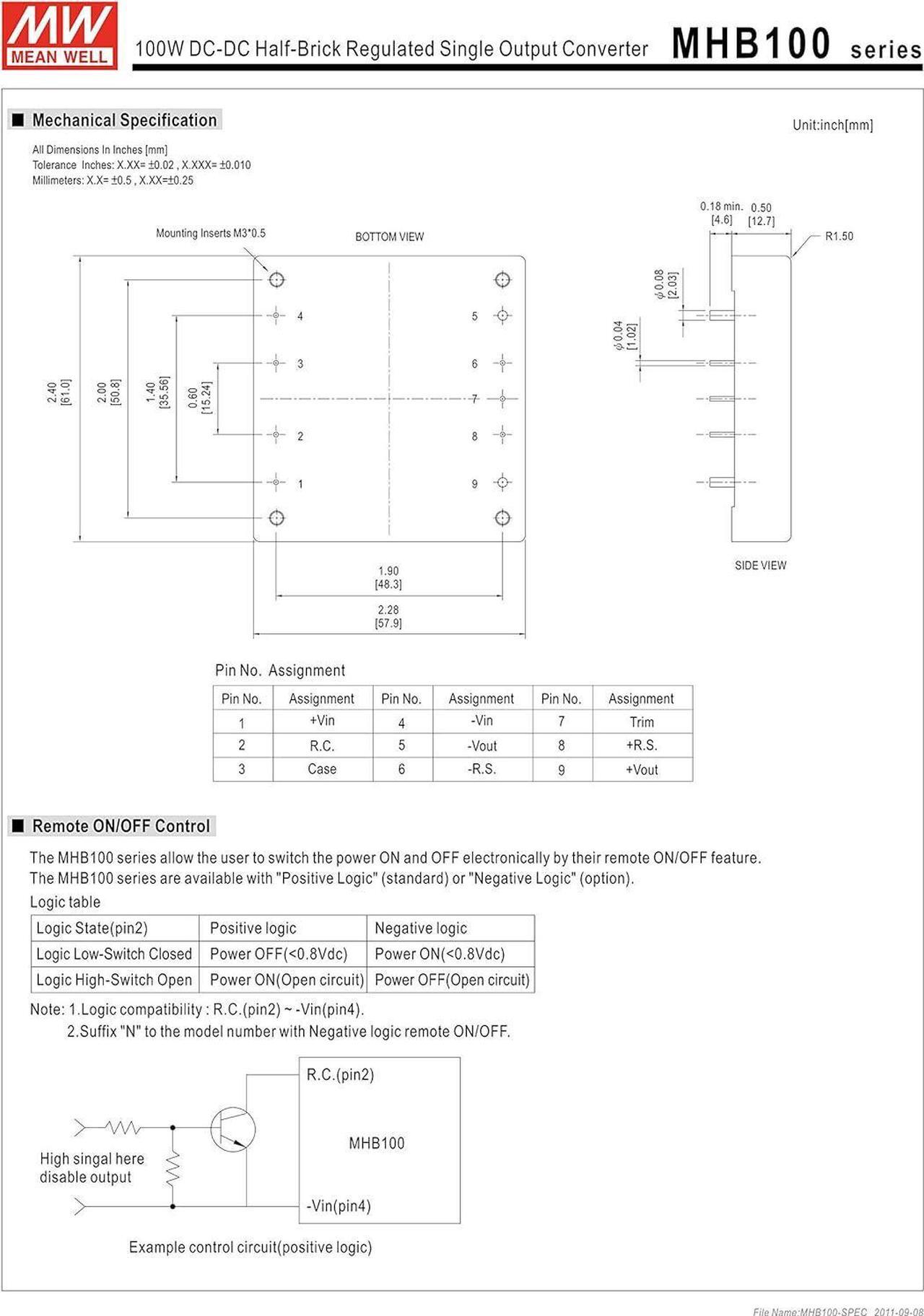

Built-in remote ON/OFF control & remote sense

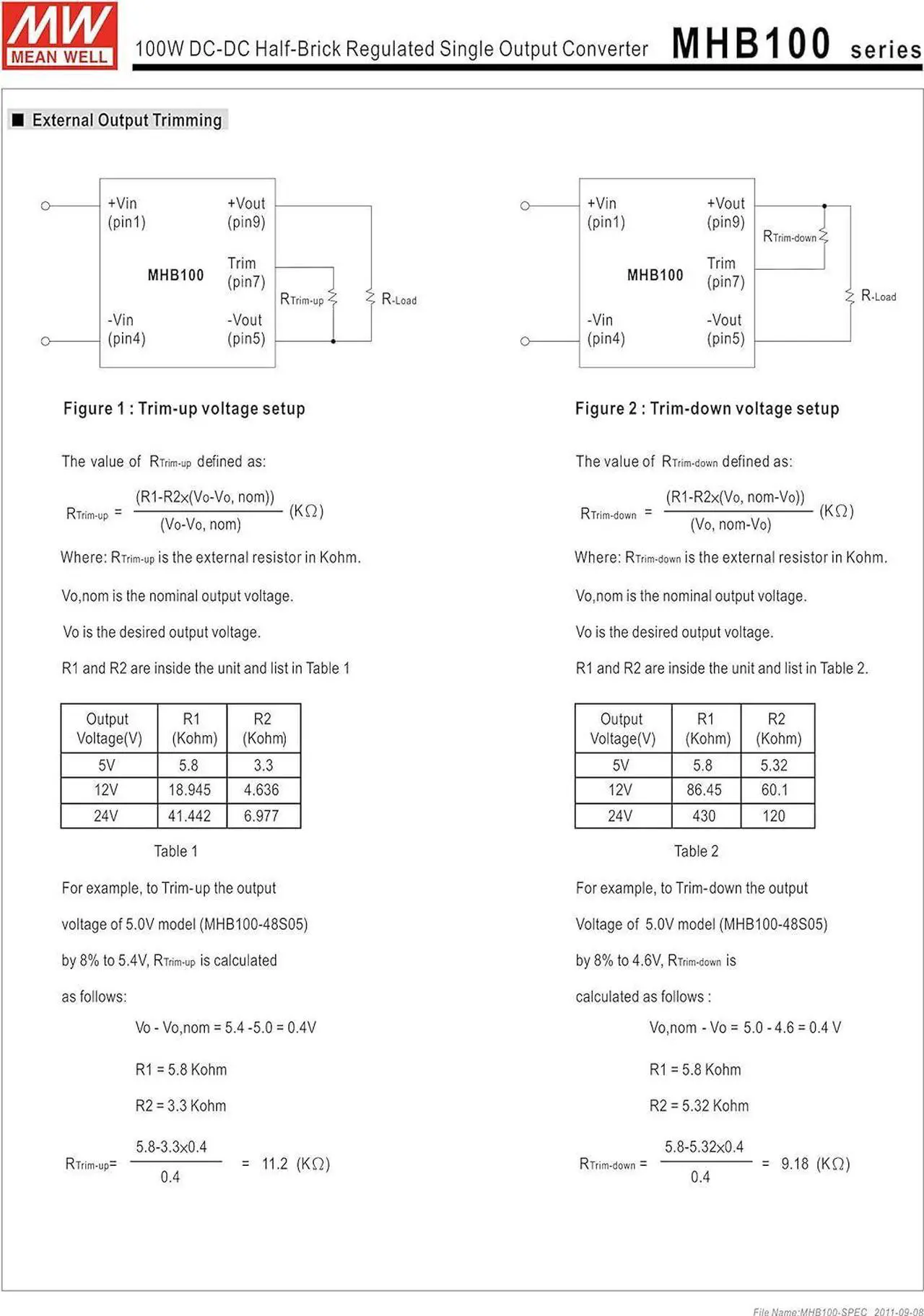

Trimming output (¡À10%)
Output 2.5V / 3.3V / 15V available

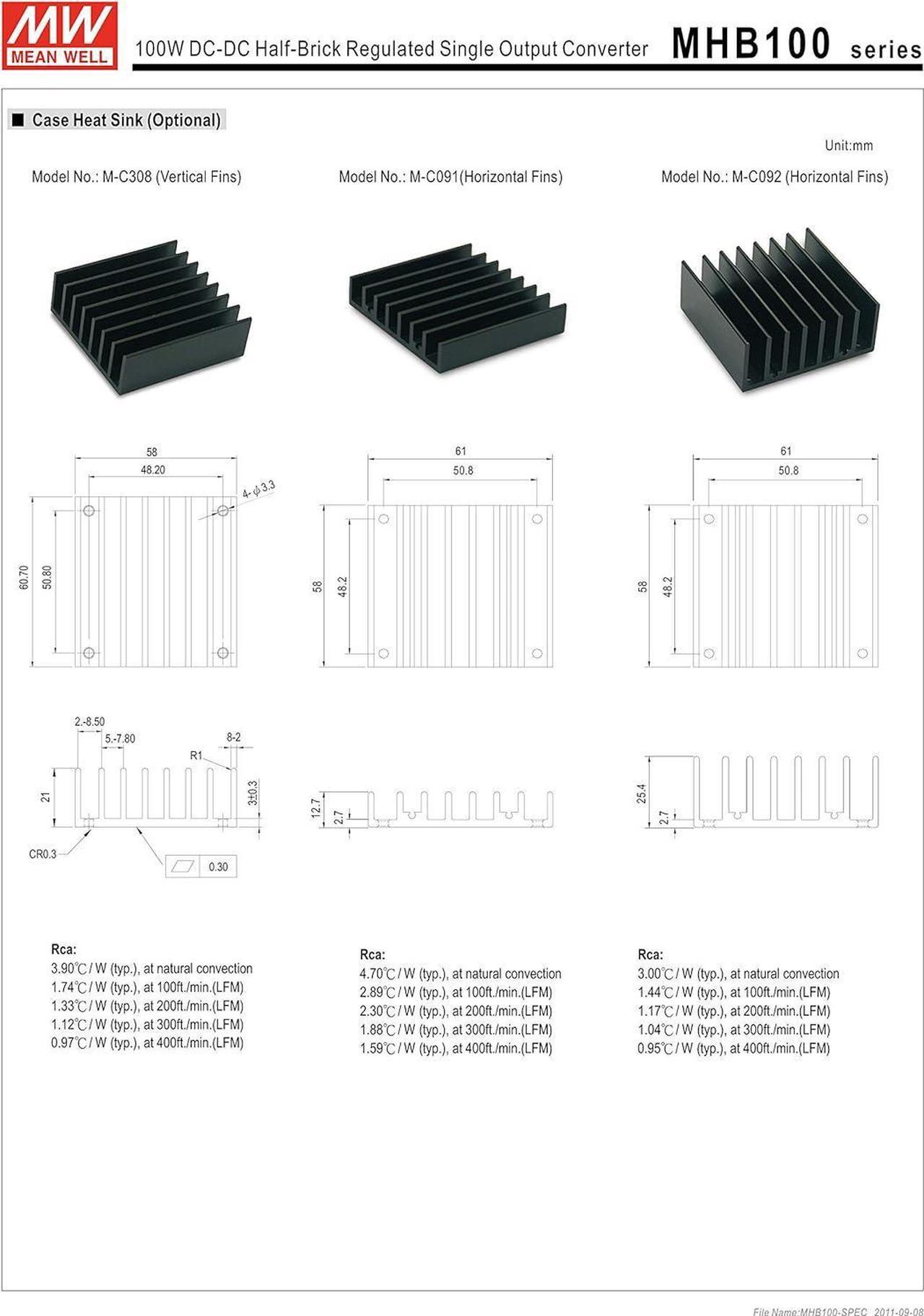

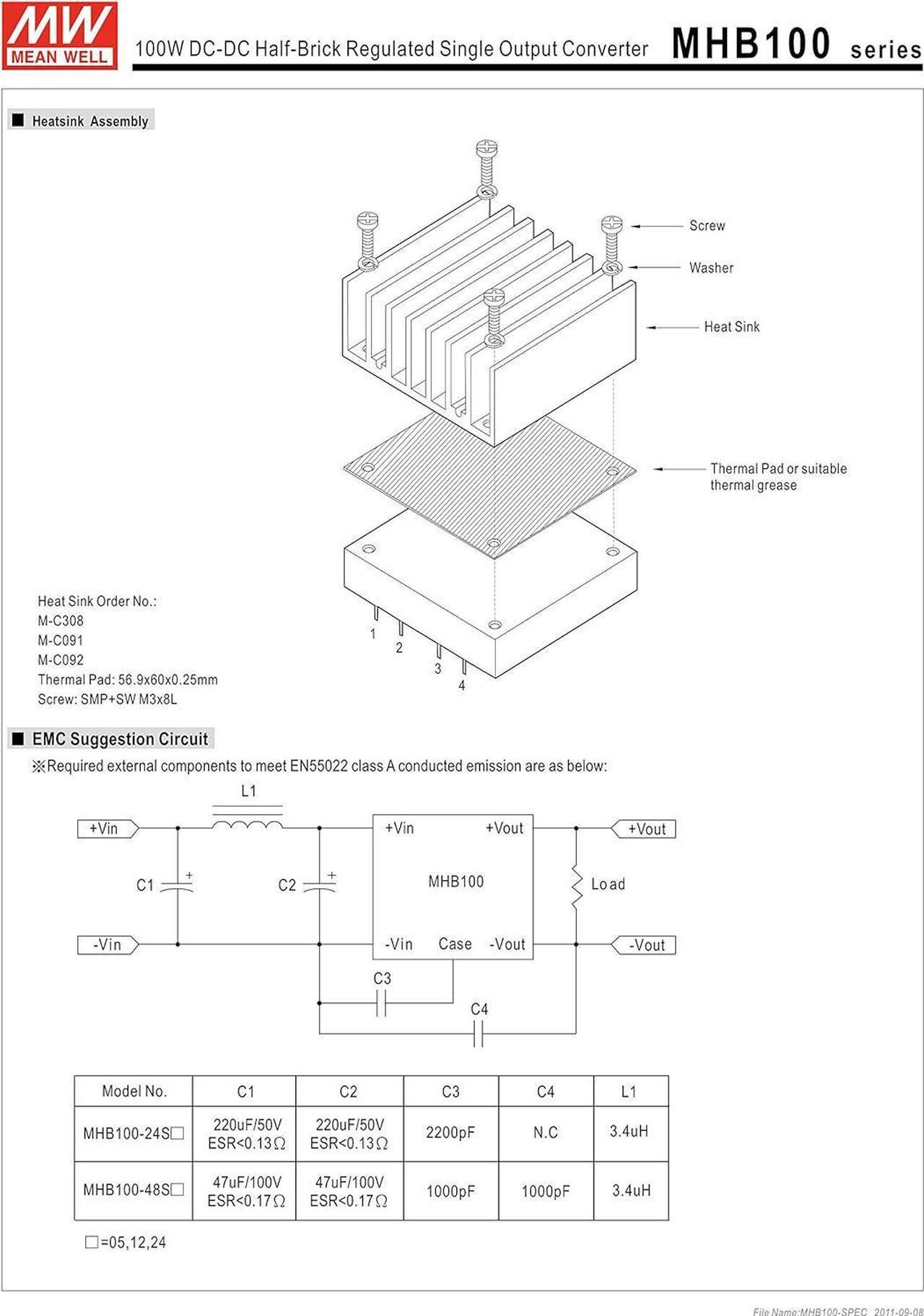

Optional heatsink available
3 years warranty
Half-brick size (2.28"x 2.4"x 0.5") with industry standard pin out
Dual in line package
2:1 wide input range
1500VDC I/O isolation
Protections: Short circuit / Over current / Over voltage / Over temperature
Five-sided shield metal case
Cooling by free air connection
High efficiency up to 89%
Built-in remote ON/OFF control & remote sense
Trimming output (¡À10%)
Output 2.5V / 3.3V / 15V available
Optional heatsink available
3 years warranty
