MW Mean Well PWM-120-48 48V 2.5A 120W PWM Output LED Power Supply with PFC
- Constant voltage PWM style output
- No load power consumption <0.5W
- Fully encapsulated with IP67 level
- Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance)
- 5 years warranty
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

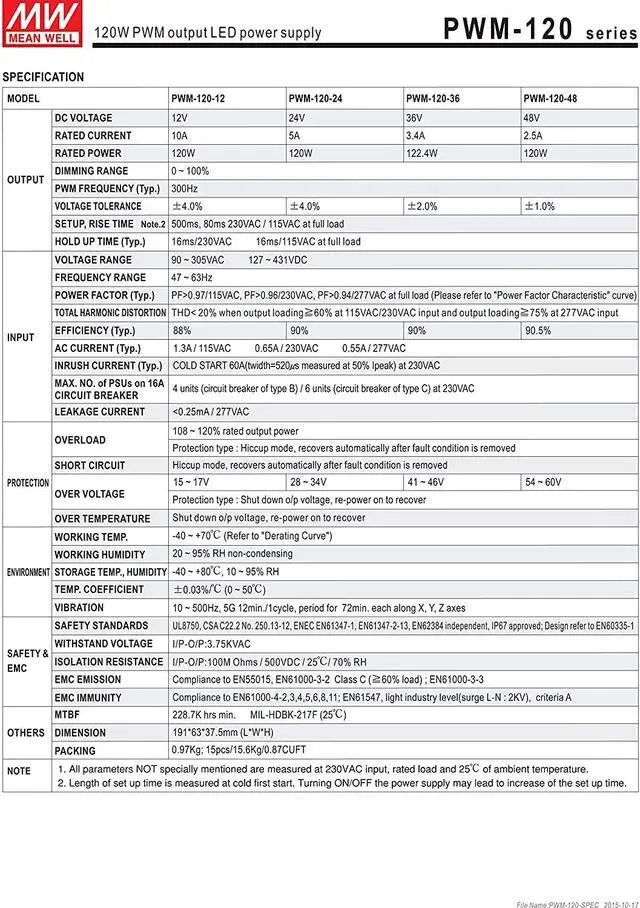

Features:
Universal AC input (up to 305VAC) / Full range
Constant voltage PWM style output
Built-in active PFC function
High efficiency up to 90.5%
No load power consumption <0.5W
Protections:Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Fully isolated plastic case
Fully encapsulated with IP67 level
Class 2 power unit (except for PWM-90-12 & PWM-120)
Isolation class II, no F.G.

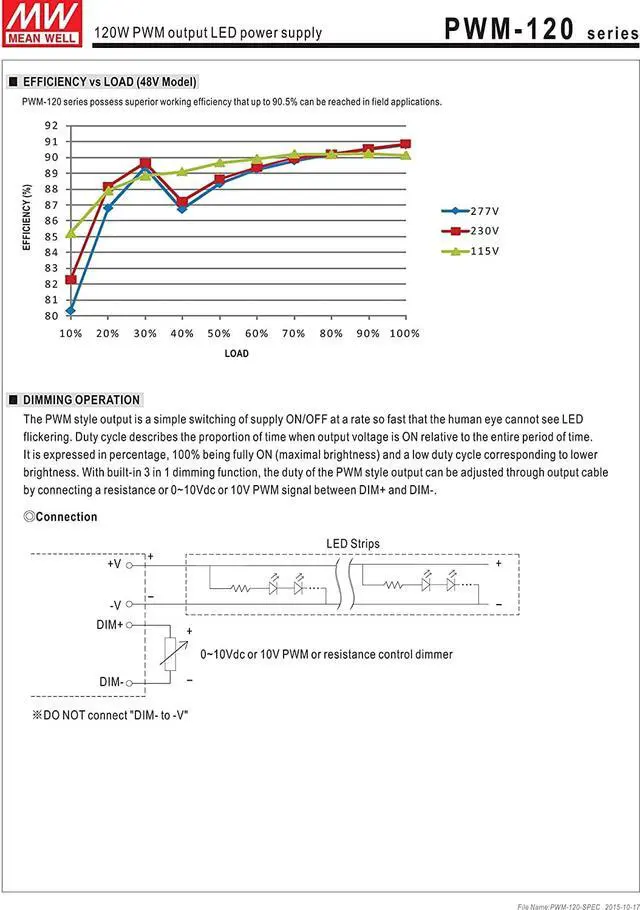

Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance)
Optional DALI solution models available (DA-Type)
Suitable for dry, damp, and wet location
Suitable for LED strip lighting
5 years warranty
Universal AC input (up to 305VAC) / Full range
Constant voltage PWM style output
Built-in active PFC function
High efficiency up to 90.5%
No load power consumption <0.5W
Protections:Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Fully isolated plastic case
Fully encapsulated with IP67 level
Class 2 power unit (except for PWM-90-12 & PWM-120)
Isolation class II, no F.G.
Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance)
Optional DALI solution models available (DA-Type)
Suitable for dry, damp, and wet location
Suitable for LED strip lighting
5 years warranty
