$291.99
Meet Your Seller

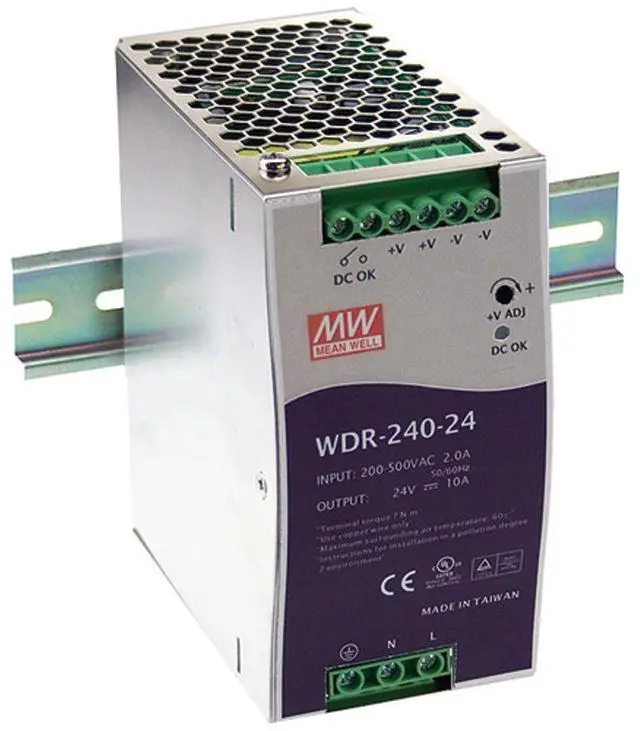

WDR-240-24 Power Supply Din Rail Switching 240W 24 VDC, 10 Amp
- Primary output voltage (vdc): 24
- Output current (a): 10
- Maximum output power (w): 240
- Family: wdr-240
- Input voltage (vac): 180 to 264
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
240W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 24 Volts 10 Amps Features: Single and two phase wide input range 180~550VAC High efficiency 91% and low power dissipation Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Can be installed on DIN rail TS-35/7.5 or 15 UL 508(industrial control equipment)approved EN61000-6-2(EN50082-2) industrial immunity level Built-in DC OK relay contact 100% full load burn-in test 3 years warranty Detailed Specifications: Primary Output Voltage (VDC): 24 Output Current (A): 10 Maximum Output Power (W): 240 Family: WDR-240 Input Voltage (VAC): 180 to 264 Input Frequency: 47 to 63 Maximum Input Current (A): 2 Output Connector Type: Screw Terminal Efficiency (%): 91 Operating Temperature-Min (Cell): -30 Operating Temperature-Max (Cell): 70 Length (inch): 2.48 Width (inch): 4.93 Height (inch): 4.47 Agency Approvals: UL/CB/CE Color: Silver Style: DIN.
