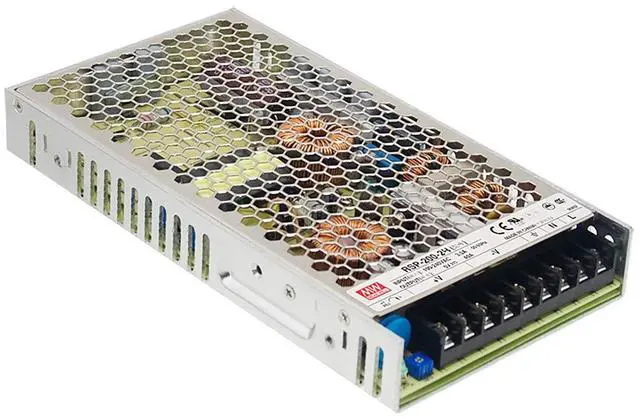

MEAN WELL RSP-200-24 AC-DC Switching Enclosed Power Supply Single
- Primary output voltage (vdc): 24
- Output current (a): 8.4
- Maximum output power (w): 201.6
- Family: rsp-200
- Input voltage (vac): 88 to 264
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AC to DC Switching Enclosed Power Supply Single Output with PFC function 24 Volts 8.4 Amps 201.6 Watts
Features:
Universal AC input/full range
Built in active PFC function
Protections: short circuit, over voltage, over temperature, overload
Cooling by free air convection
LED indicator for power on
3 year warranty
Specifications:
Output power (W): 201.6
Size (L x W x H) inches: 8.5 x 4.5 x 1.2
Ripple & noise (mV p-p): 150
Line regulation: 0.2 percent
Load regulation: 0.5 percent
Efficiency: 89.5 percent
Frequency range: 47-63 Hz
Voltage range: 88-264 VAC
Agency approvals: UL/CUL/TUV/CCC/CB/CE Input current (a): 3.5
Output connector Type: screw terminal block
Number of outputs: 1
Product Type: AC to DC power supply
Minimum isolation voltage: 3000V
Operating temperature-min (CEL): -30
Operating temperature-max (CEL): 70
Length (inch): 8.5
Width (inch): 4.5
Height (inch): 1.2
Color: silver
Type: auto switching
Style: enclosed
Usage Note: A minimum load is required for the power supply to function normally. Typical minimum loads for switching supplies are 10% of the maximum load current and usually one ampere, or less.
Features:
Universal AC input/full range
Built in active PFC function
Protections: short circuit, over voltage, over temperature, overload
Cooling by free air convection
LED indicator for power on
3 year warranty
Specifications:
Output power (W): 201.6
Size (L x W x H) inches: 8.5 x 4.5 x 1.2
Ripple & noise (mV p-p): 150
Line regulation: 0.2 percent
Load regulation: 0.5 percent
Efficiency: 89.5 percent
Frequency range: 47-63 Hz
Voltage range: 88-264 VAC
Agency approvals: UL/CUL/TUV/CCC/CB/CE Input current (a): 3.5
Output connector Type: screw terminal block
Number of outputs: 1
Product Type: AC to DC power supply
Minimum isolation voltage: 3000V
Operating temperature-min (CEL): -30
Operating temperature-max (CEL): 70
Length (inch): 8.5
Width (inch): 4.5
Height (inch): 1.2
Color: silver
Type: auto switching
Style: enclosed
Usage Note: A minimum load is required for the power supply to function normally. Typical minimum loads for switching supplies are 10% of the maximum load current and usually one ampere, or less.
