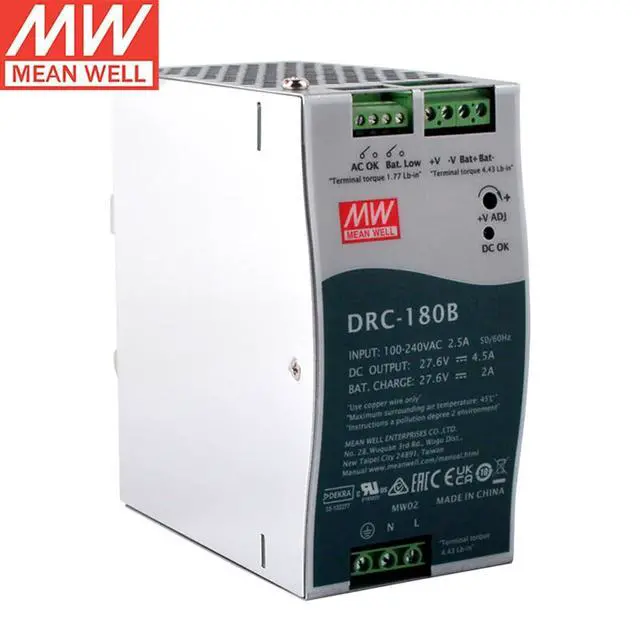

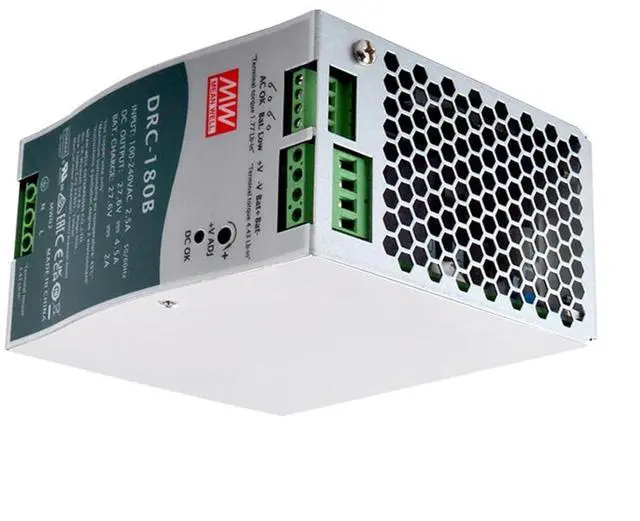

Mean Well 180W Single Output with Battery Charger UPS Function SFX PSU Ham Radio Power Supplies Large Bench Computer Power Supplies (DRC-180B 179.4W/UPS Function)

NEW, MEAN WELL Power Supply.

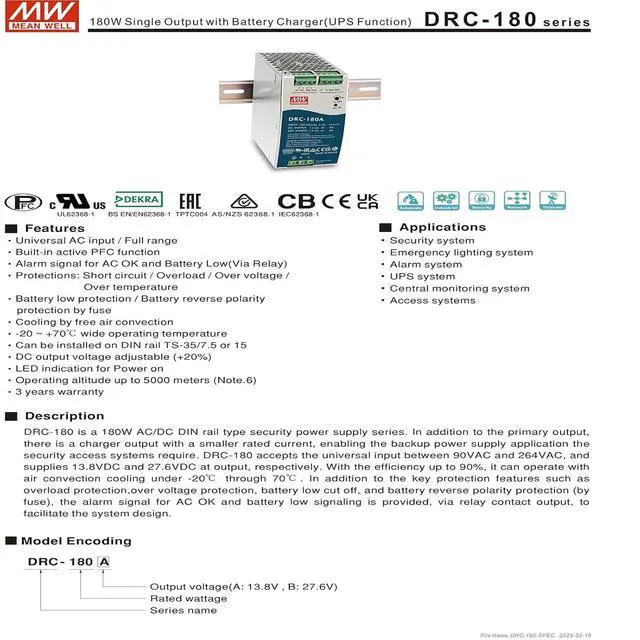

DRC-180 is a 180W AC/DC DIN rail type security power supply series.
In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require.
DRC-180 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively.
With the efficiency up to 90%, it can operate with air convection cooling under -20 through 70 .
In addition to the key protection features such as overload protection,over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.
