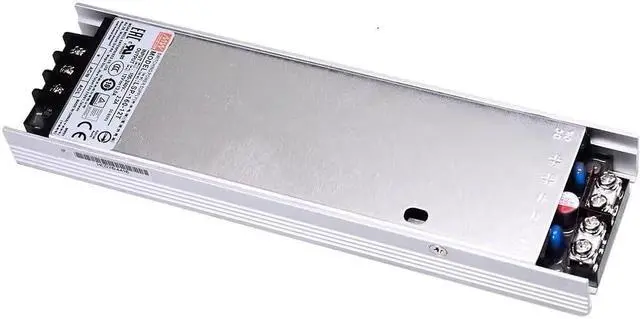

Mean Well LSP-160-24T 162W Slim Type with PFC Switching Power Supply 24V 6.75A

Slim width and low profile(20mm)
Fanless design for noise free environment
Withstand 300VAC surge input for 5 seconds

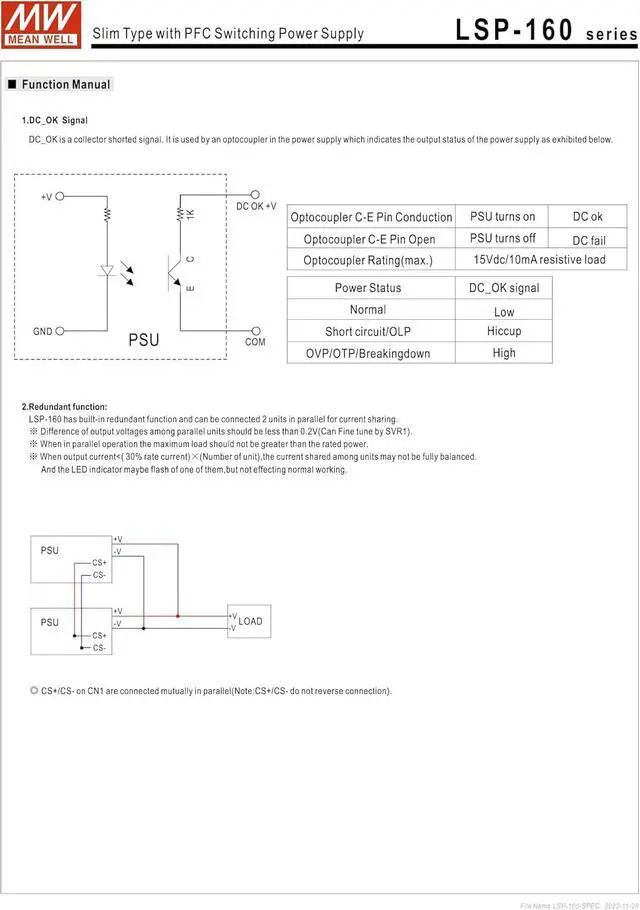

DC OK active signal function
Semi-Potting for high moisture environment
Protections: Short circuit / Over load / Over voltage / Over temperature
Max. operating wattage to 200W at 230V AC input
Operating altitude up to 5000 meter (Note.5)
LED indicator for power on
Welcome to visit, the main picture above the product specifications, please read carefully, have any questions can consult us, we will answer for you.If you need to purchase more quantities, please contact customer service.

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

LSP-160 series is a Max.single-output slim type power supply with 20mm of low profile design.Adopting the full range 100~264VAC inputthe entire series provides an output voltage line of3.3V,4.2V,5V,12V24V,36V and 48V.In addition to the high efficiency up to 93.5%, that the wholeseries operates from -30 ~ 70 under air convection without fan.LSP-160 has the completeprotection functions and 5G anti-vibration capability; lt is complied with the international safetyregulations such as TUV BS EN/EN62368,UL62368 and GB4943.LSP-160 series serves as a highperformance power supply solution for various industrial applications.
