Mean Well DDR-240C-24 240W DIN Rail Type DC-DC Converter 24V/10A
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- Width only 40mm
- 2:1 wide input range
- -40~+70 wide working temperature
- 150% peak load capability

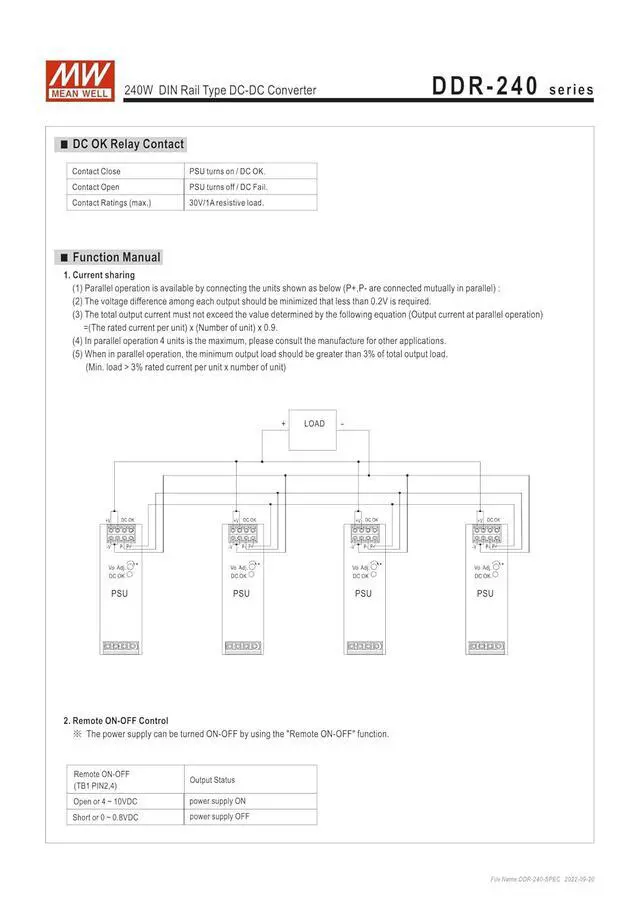

- Current sharing up to 960W(3+1)
- DC output adjustable
- Cooling by free air convection
- Can be installed on DIlN rail TS-35/7.5 or 15
- Protections: Short circuit / Overload / Over voltage / Over temperature / lnput reverse polarity/lnput under voltage protection
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DDR-240 series is a DIN Rail type DC-DC converter with main features including DIN rail-type easy installation,ultra slim width (40mm), 2:1 wide input voltage, fanless design, -40~+70 wide operating temperature , 4KVdcI/O isolation, 150% peak load, current sharing,DC OK, adjustable output voltage and full protective functions.This series of models has various input options:16.8~33.6V/33.6~67.2V/67.2~154V and two output options:24V/48V and can be used for industrial & railway control, security control, communication system and other fields.Suitable applications include to DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
