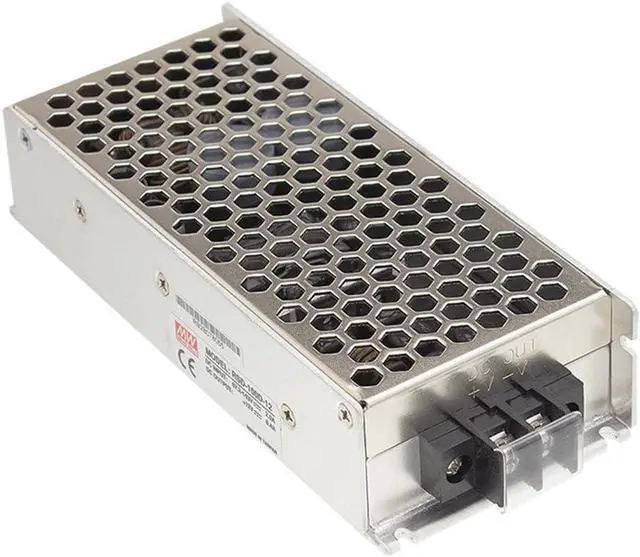

MEAN WELL MW RSD-100D-24 24V 4.2A Enclosed Single Output DC-DC Converter
- Compliance to EN50155 and EN45545-2 railway standard
- 4000VDC I/O isolation
- Built-in constant current limiting circuit
- All using 105 long life electrolytic capacitors
- 3 years warranty
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
4000VDC I/O isolation
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.(RSD-150/200/300)
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile
All using 105 long life electrolytic capacitors
Half encapsulated
100% full load burn-in test
3 years warranty
Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
4000VDC I/O isolation
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.(RSD-150/200/300)
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile
All using 105 long life electrolytic capacitors
Half encapsulated
100% full load burn-in test
3 years warranty
