Mean Well MPM-90-12ST 80.4W AC-DC High Reliable PCB-Mount Green Medical Power Module MPM-90 12V 6.7A

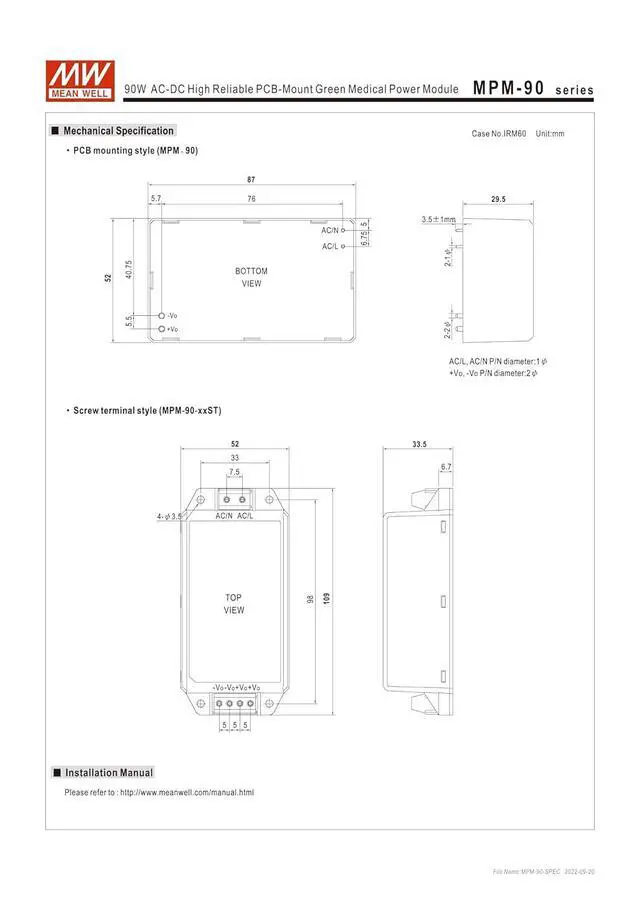

- 3.43"x2.05"compact size
- PCB,chassis or screw terminal mounting version
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and lEC/BS EN/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.1W
- Extremely low leakage current
- Wide operating temp. range -30 ~+80
- EMI Class B without additional components
- lsolation Class ll
- Protections: Short circuit / Overload / Over voltage
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
3.43"x2.05"compact size
PCB,chassis or screw terminal mounting version
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and lEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No load power consumption<0.1W
Extremely low leakage current
Wide operating temp. range -30 ~+80
EMI Class B without additional components
lsolation Class ll
Protections: Short circuit / Overload / Over voltage
PCB,chassis or screw terminal mounting version
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and lEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No load power consumption<0.1W
Extremely low leakage current
Wide operating temp. range -30 ~+80
EMI Class B without additional components
lsolation Class ll
Protections: Short circuit / Overload / Over voltage
