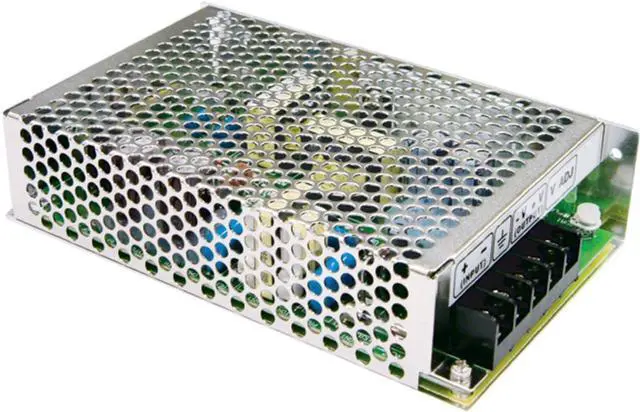

Meanwell SD-50B-24 DC-DC Converter - 50W - 19~36V in 24V out

Features:
2:1 wide input range
Protections:Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter ,low ripple noise
100% full load burn-in test
Fixed switching frequency at 83KHz
Low cost
High reliability
2 years warranty
General Specification:

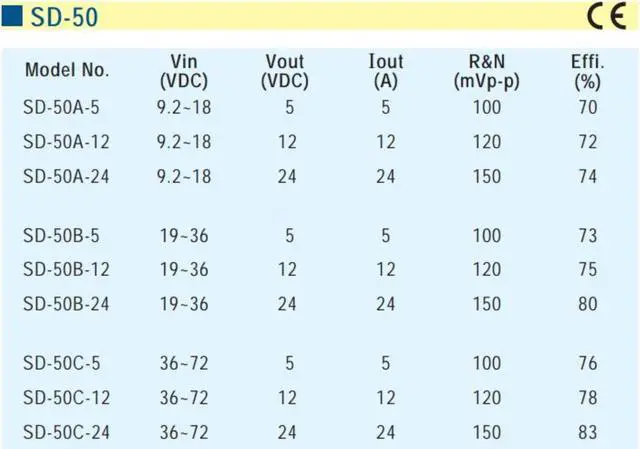

AC input voltage range:A: 9.2~18VDC; B: 19~36VDC ;C: 36~72VDC
DC adjustment range:5V: 4.5~5.5VDC, 12V: 11~16VDC, 24V: 23~30VDC
Over voltage protection:5V: 5.75~6.75V/10% load, 12V: 16.8~20V/10% load, 24V: 31.5~37.5V/10% load , Protection type :Hiccup mode, recovers automatically after fault condition removed
Overload protection: 105~150% rated output power , Protection type: Hiccup mode, recovers automatically after fault condition removed
Withstand voltage:I/P-O/P: 1.5KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: 0.5KVAC
Working temperature: -10~ +60ºC(Refer to "Derating Curve")
Safety standards:Design refer to LVD , EAC TP TC 004 ,AS/NZS 62368.1 approved
EMC standards: Compliance to EN55032 (CISPR32) Class B, Compliance to EN61000-4-2,3,4,6,8,;ENV50204, heavy industry level, criteria A ,EAC TP TC 020
Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH

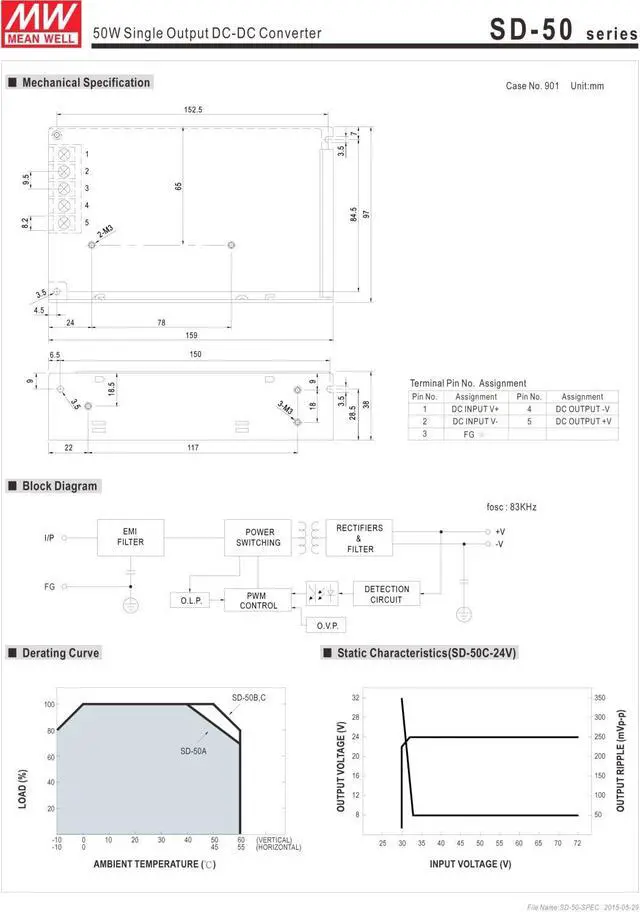

Dimension (LxWxH) (mm):159x 97x 38
