$421.99
Sold by Chinathru Trading Co., Limited
Shipped by Chinathru Trading Co., Limited
Meet Your Seller

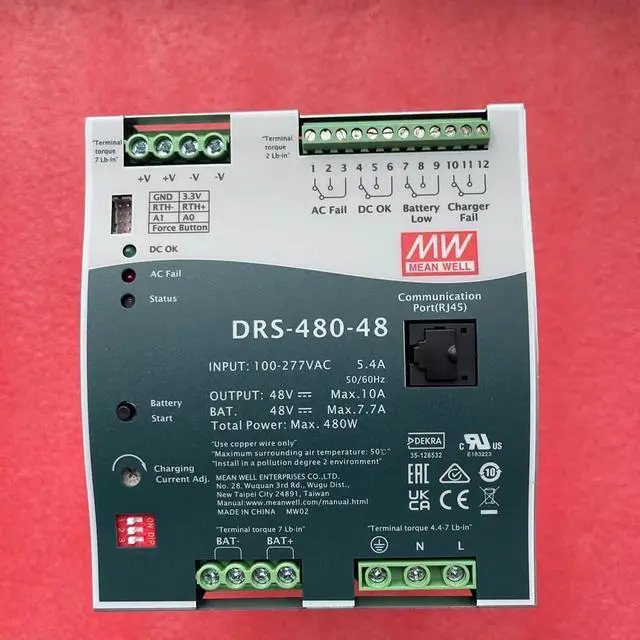

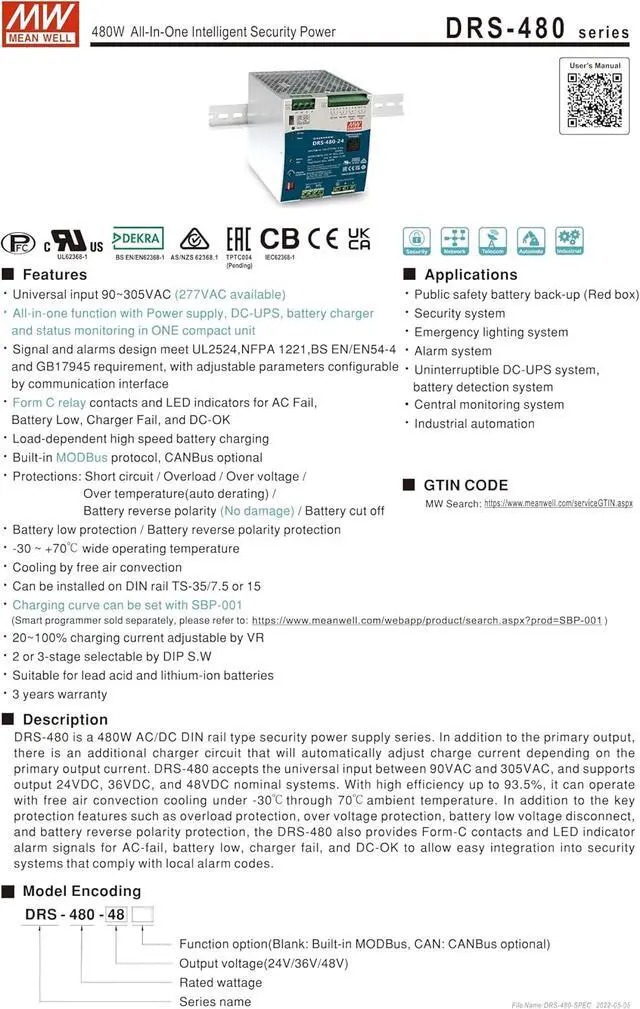

Mean Well DRS-480-48 480W All-in-One Intelligent Security Power DRS-480 48V 7.7A
- Universal input 90~305VAC (277VAC available)

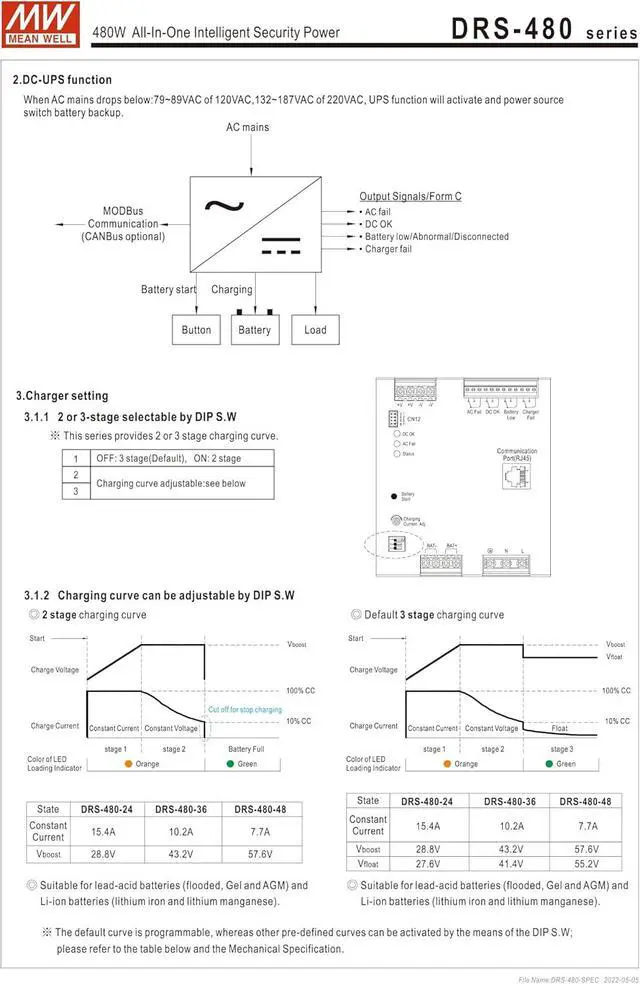

- All-in-one function with Power supply,DC-UPS, battery charger and status monitoring in ONE compact unit
- Signal and alarms design meet UL2524,NFPA 1221,BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface

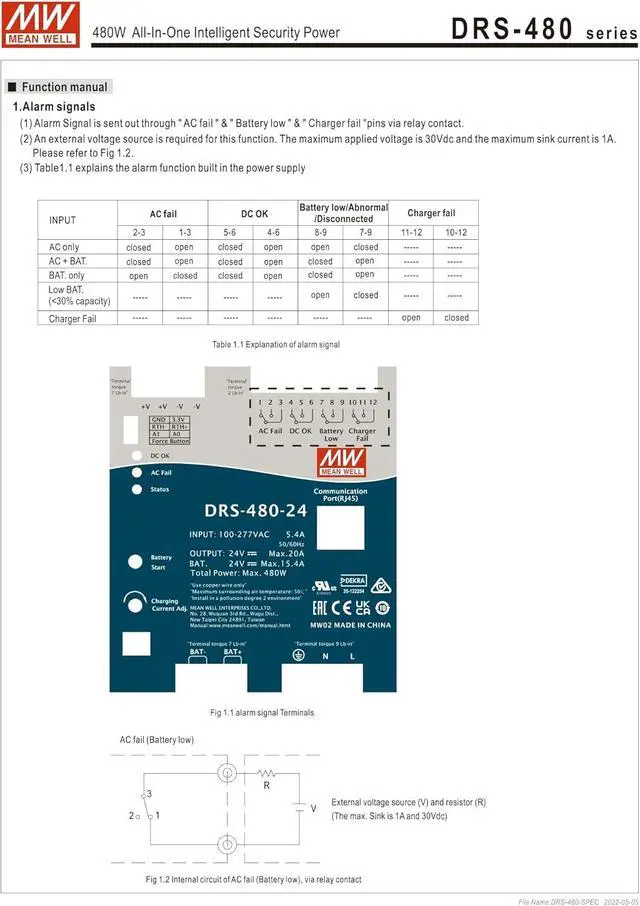

- Form C relay contacts and LED indicators for AC Fail,Battery Low,Charger Fail, and DC-OK
- Load-dependent high speed battery charging
- Built-in MODBus protocol,CANBus optional
- Protections: Short circuit / Overload / Over voltage / Over temperature(auto derating) /Battery reverse polarity (No damage)/Battery cut off
- Battery low protection / Battery reverse polarity protection-30+70 wide operating temperature
- Cooling by free air convection

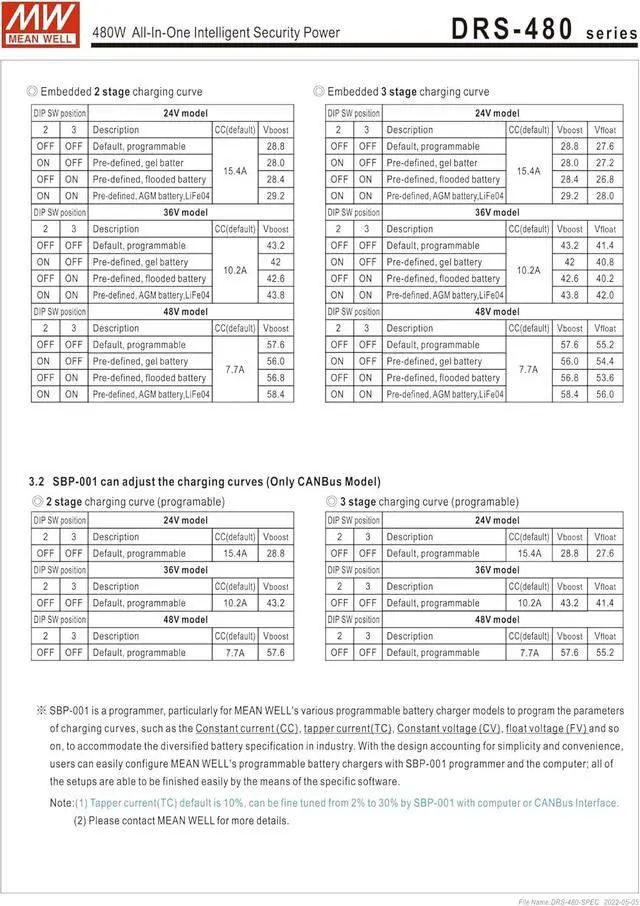

- Can be installed on DlN rail TS-35/7.5 or 15Charging curve can be set with SBP-001
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Universal input 90~305VAC (277VAC available)
All-in-one function with Power supply,DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarms design meet UL2524,NFPA 1221,BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface
Form C relay contacts and LED indicators for AC Fail,Battery Low,Charger Fail, and DC-OK
Load-dependent high speed battery charging
Built-in MODBus protocol,CANBus optional
Protections: Short circuit / Overload / Over voltage / Over temperature(auto derating) /Battery reverse polarity (No damage)/Battery cut off
Battery low protection / Battery reverse polarity protection-30+70 wide operating temperature
Cooling by free air convection
Can be installed on DlN rail TS-35/7.5 or 15Charging curve can be set with SBP-001
All-in-one function with Power supply,DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarms design meet UL2524,NFPA 1221,BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface
Form C relay contacts and LED indicators for AC Fail,Battery Low,Charger Fail, and DC-OK
Load-dependent high speed battery charging
Built-in MODBus protocol,CANBus optional
Protections: Short circuit / Overload / Over voltage / Over temperature(auto derating) /Battery reverse polarity (No damage)/Battery cut off
Battery low protection / Battery reverse polarity protection-30+70 wide operating temperature
Cooling by free air convection
Can be installed on DlN rail TS-35/7.5 or 15Charging curve can be set with SBP-001
