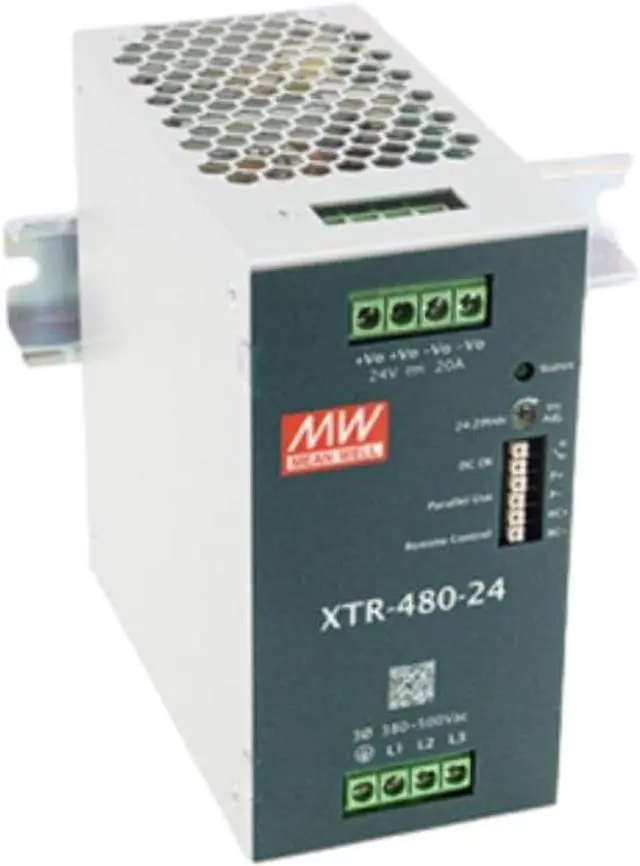

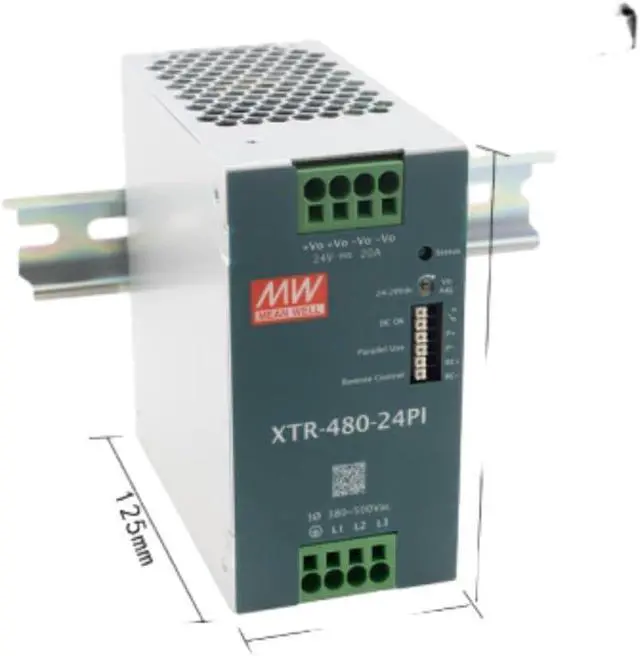

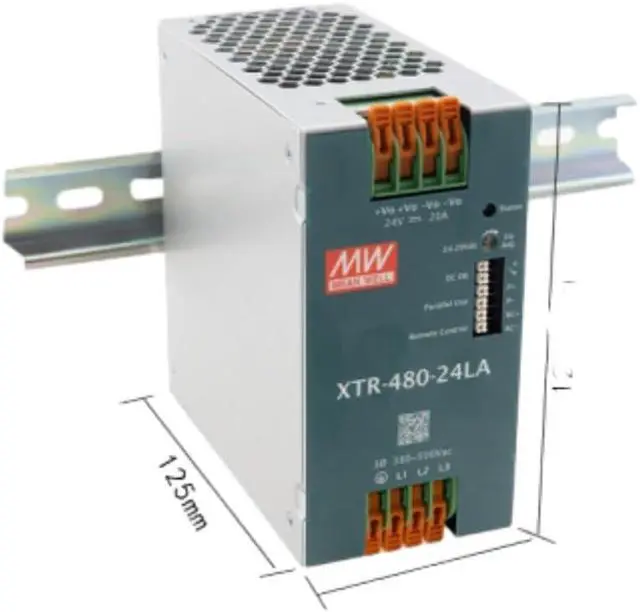

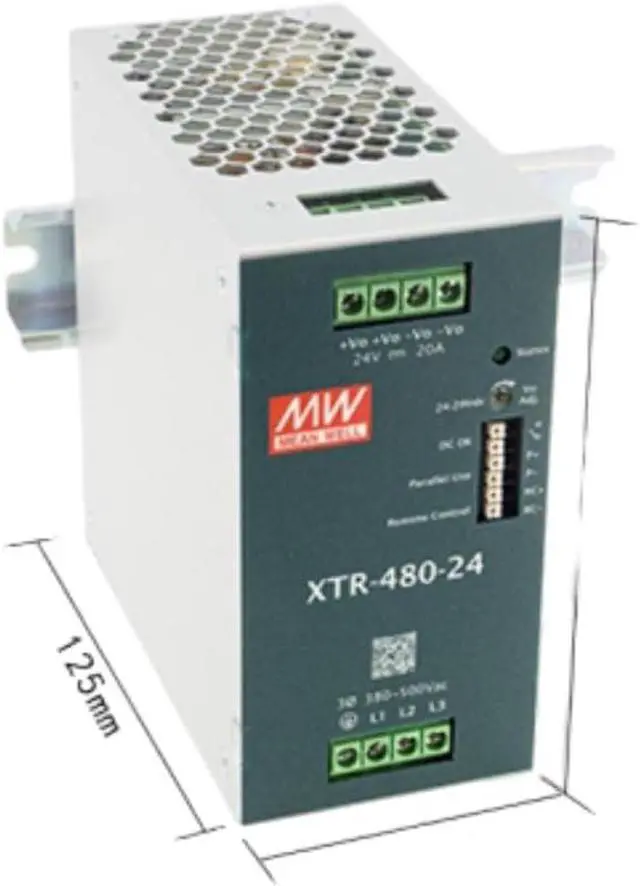

Mean Well XTR-480-24PIGL 20A Power Supply Converter,XTR Switching Power Supply
- The power driver can be mounted on TS-35/7.5 or 15-type rails, with a three-phase wide-range input of 320600 Vac, and supports occasional surge inputs of 600700 Vac for 1 second. (Terminal type: Push-in, mounting bracket)
- The power adapter achieves a conversion efficiency of up to 94%, with a parallel function of up to 1920W (3+1), 200% peak power, built-in DC OK relay contacts, and no-load loss <3W.
- AC single-output power converter with short-circuit, overload, overvoltage, and over-temperature protection features to safeguard your equipment, capable of full-load operation within a temperature range of -40°C to +85°C.
- The switching power supply features a metal housing with natural air cooling, ultra-low inrush current <10A, and is suitable for use in electromechanical equipment, industrial control systems, and more.
- To extend the service life, please avoid operating the transformer beyond its rated current for extended periods. If you have any questions, please contact u
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The power driver can be mounted on TS-35/7.5 or 15-type rails, with a three-phase wide-range input of 320600 Vac, and supports occasional surge inputs of 600700 Vac for 1 second. (Terminal type: Push-in, mounting bracket)
The power adapter achieves a conversion efficiency of up to 94%, with a parallel function of up to 1920W (3+1), 200% peak power, built-in DC OK relay contacts, and no-load loss <3W.
AC single-output power converter with short-circuit, overload, overvoltage, and over-temperature protection features to safeguard your equipment, capable of full-load operation within a temperature range of -40°C to +85°C.
The switching power supply features a metal housing with natural air cooling, ultra-low inrush current <10A, and is suitable for use in electromechanical equipment, industrial control systems, and more.
To extend the service life, please avoid operating the transformer beyond its rated current for extended periods. If you have any questions, please contact us promptly.
The power adapter achieves a conversion efficiency of up to 94%, with a parallel function of up to 1920W (3+1), 200% peak power, built-in DC OK relay contacts, and no-load loss <3W.
AC single-output power converter with short-circuit, overload, overvoltage, and over-temperature protection features to safeguard your equipment, capable of full-load operation within a temperature range of -40°C to +85°C.
The switching power supply features a metal housing with natural air cooling, ultra-low inrush current <10A, and is suitable for use in electromechanical equipment, industrial control systems, and more.
To extend the service life, please avoid operating the transformer beyond its rated current for extended periods. If you have any questions, please contact us promptly.
