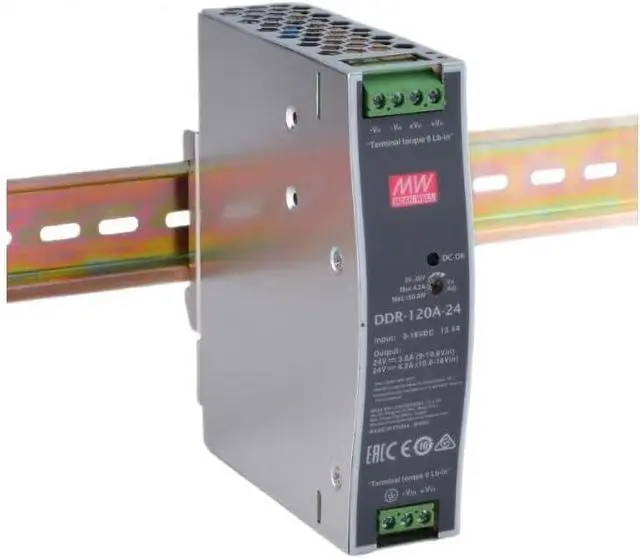

DDR-120A-24 24V 4.2A 100.8W DIN Rail DC-DC Power Module, 9-18VDC Wide Input, Ultra-Thin 32mm, Suitable for Industrial Automation, Semiconductor Equipment, and Other Applications

Wide 9-18VDC input voltage and a wide operating temperature range (-40°C to +70°C): Suitable for applications with unstable power supplies, such as in vehicles and factories, without the need for additional voltage regulation. Even in extreme temperatures, it provides a stable 24V/4.2A/100.8W output without the need for cooling equipment, eliminating the risk of power outages caused by power fluctuations, temperature range limitations, and the added cost of temperature control

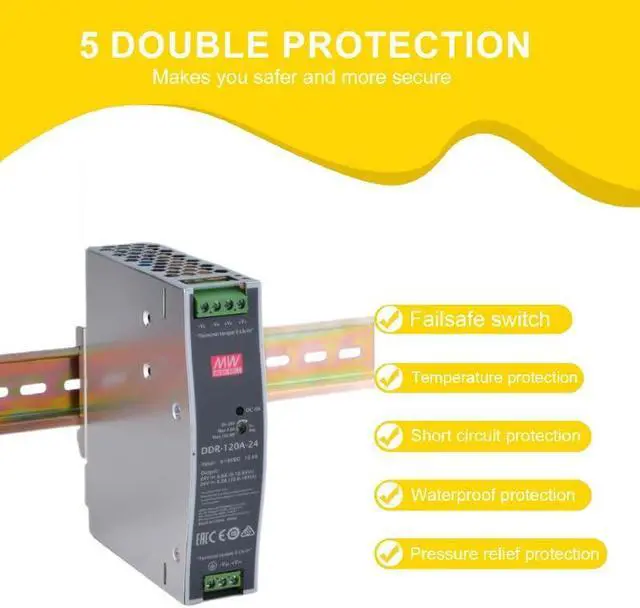

4KVDC isolation and five-level protection: Prevent equipment interference and electric shock, automatically protect against short circuits, overloads, and overvoltage faults, and input reverse polarity and undervoltage protection, preventing load damage and reducing repair costs and safety risks

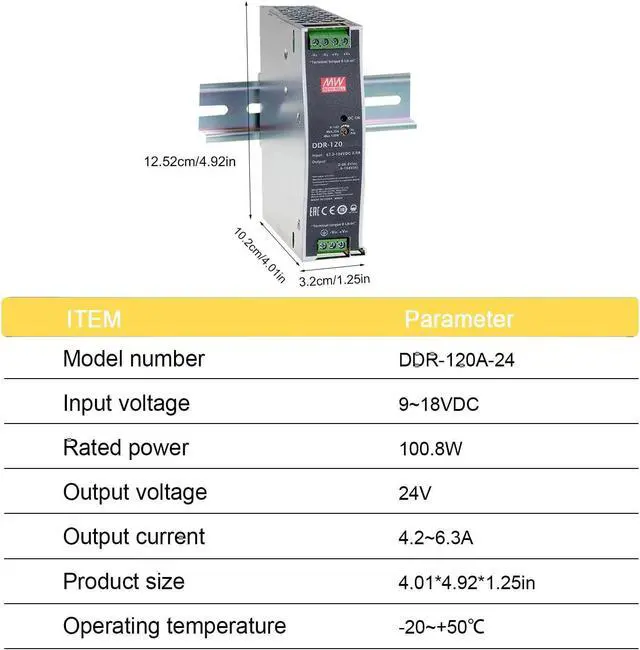

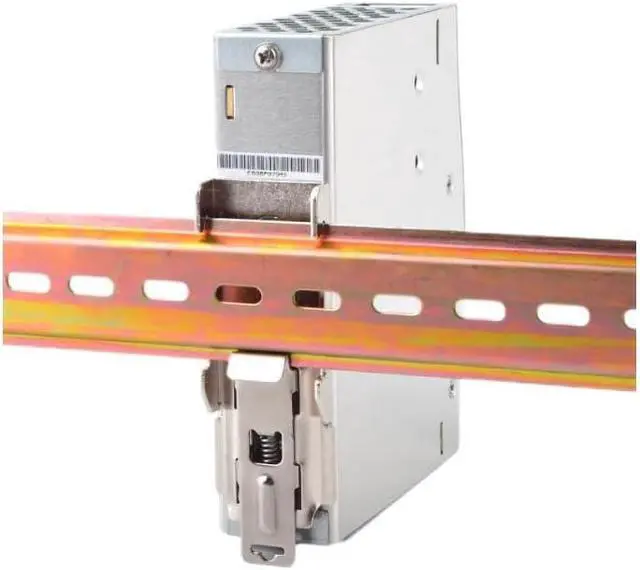

32mm ultra-thin and dual-rail compatible: Save cabinet space and directly adapt to TS-35/7.5/TS-15 rails. Dimensions of 32x125.2x102mm (WxDxH) eliminate the need for custom accessories, addressing installation space constraints and installation challenges
150% peak load (150W/3 seconds) + 24-28V adjustable: This product handles short-term high loads without tripping, compensates for voltage drops during long-distance transmission, and resolves equipment downtime, undervoltage conditions, and customized adaptation issues
Standard Certification + 3-Year Warranty: Compliant with EN50155/EN45545-2 standards, it offers a mean time between failures (MTBF) of up to 1,769,500 hours, effectively reducing long-term risks
