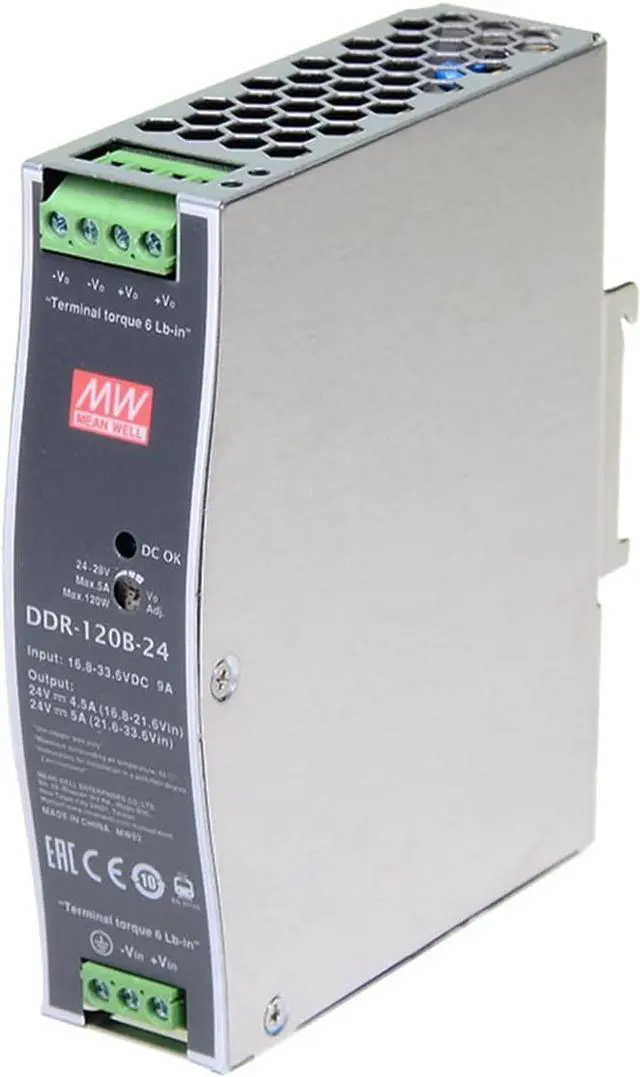

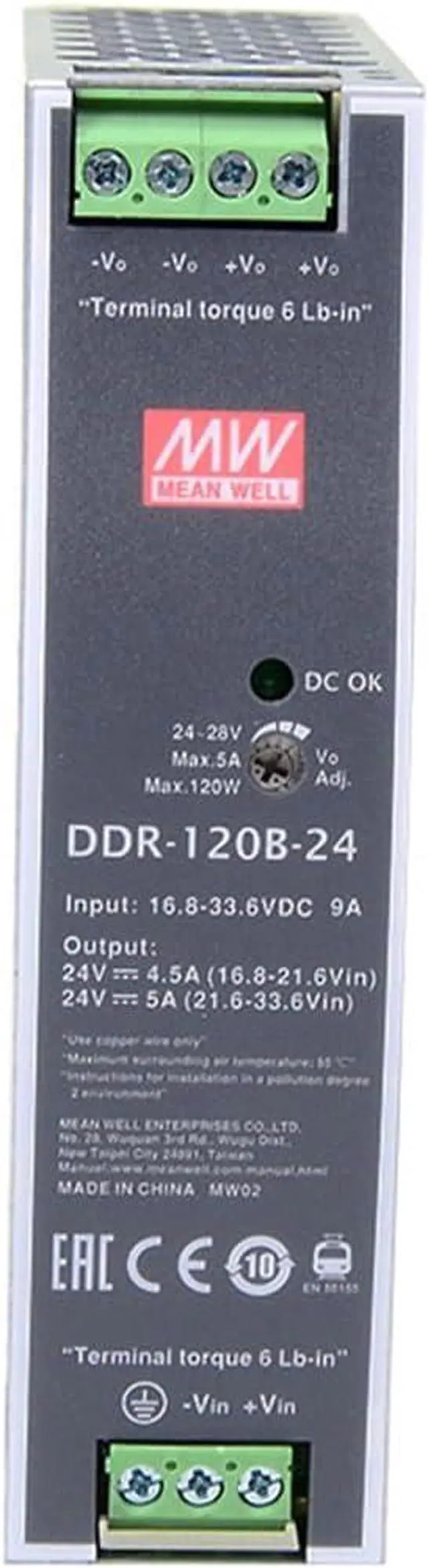

DDR-120B-24 Industrial DIN Rail DC-DC Converter, 24V 5A 120W, Wide 16.8-33.6V Input, -40°F to 158°F, Short Circuit/Overload/Overvoltage Protection, CE/EMC
- Wide Input and Reliable Performance: DrapeMania DDR-120B-24 accepts 16.8-33.6V wide input, provides 24V 0-5A adjustable output with 89.5% efficiency.
- Rugged Design for Harsh Environments: Withstands 10-500Hz 2G vibrations, operates from -40°F to 158°F. Ideal for industrial, security and communication systems.

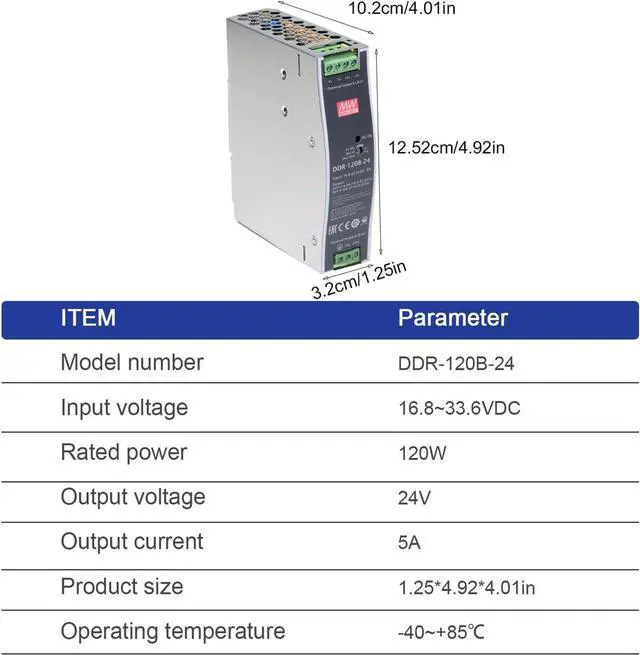

- Ultra-slim with Natural Convection Cooling: Compact 1.26"x4.93"x4.02" size, fanless design allows silent operation in space-constrained cabinets.
- Comprehensive Protections for Safety: Features short circuit, overload, overvoltage, reverse polarity and under-voltage protections. CE and EMC certified.
- Reliable Taiwan Brand: 100% full-load burn-in tested. Made by factory in Suzhou. Technical support at 400-600-0430.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The DDR-120B-24 is an economical ultra-slim 120W 24V DIN rail DC-DC converter designed for industrial, security and communication systems. Accepting an extra wide 16.8-33.6V input, it provides a 24V 0-5A adjustable output at up to 89.5% efficiency.
Ruggedly constructed to withstand 10-500Hz 2G vibrations and operate from -40°F to 158°F, the fanless DDR-120B-24 offers silent natural convection cooling in a compact 1.26"x4.93"x4.02" size. Comprehensive protections include short circuit, overload, overvoltage, reverse polarity and under-voltage. CE and EMC compliant, each built unit is 100% full load tested for reliable operation in demanding industrial applications.
Ruggedly constructed to withstand 10-500Hz 2G vibrations and operate from -40°F to 158°F, the fanless DDR-120B-24 offers silent natural convection cooling in a compact 1.26"x4.93"x4.02" size. Comprehensive protections include short circuit, overload, overvoltage, reverse polarity and under-voltage. CE and EMC compliant, each built unit is 100% full load tested for reliable operation in demanding industrial applications.
