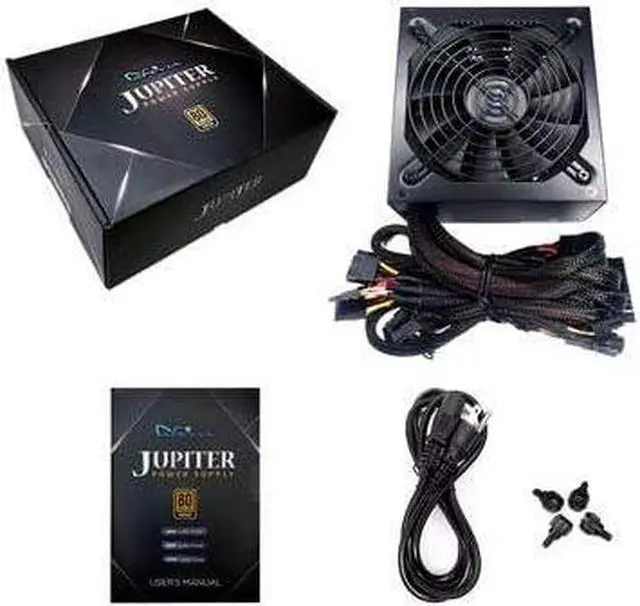

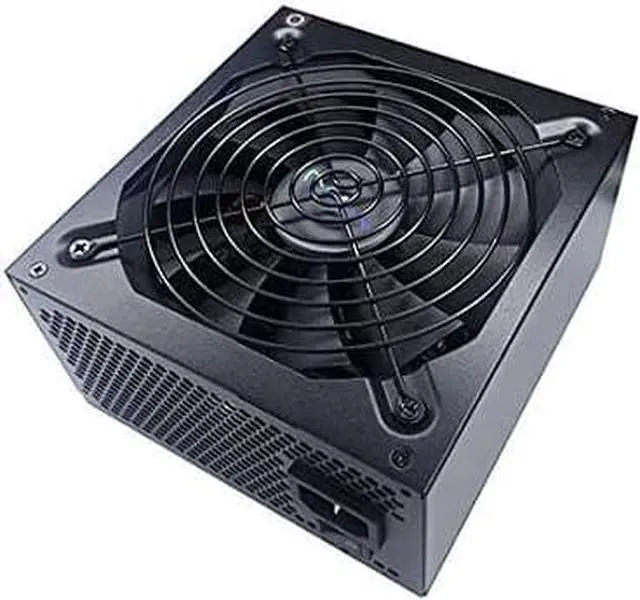

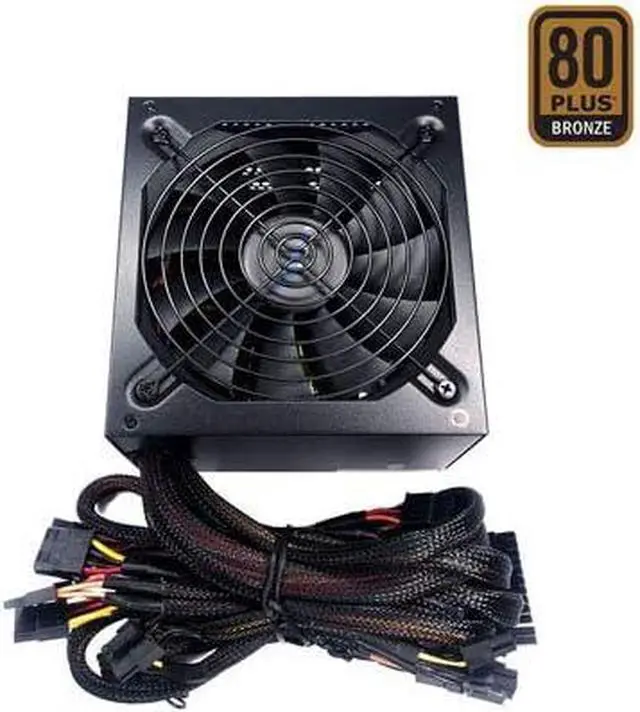

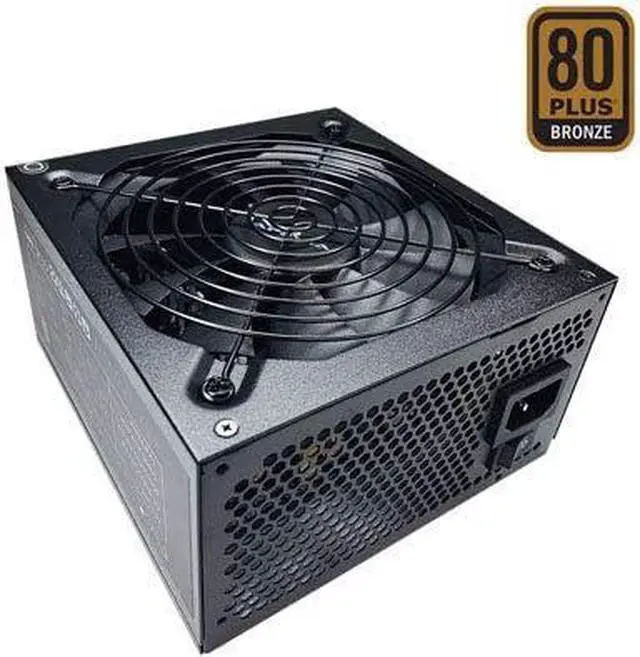

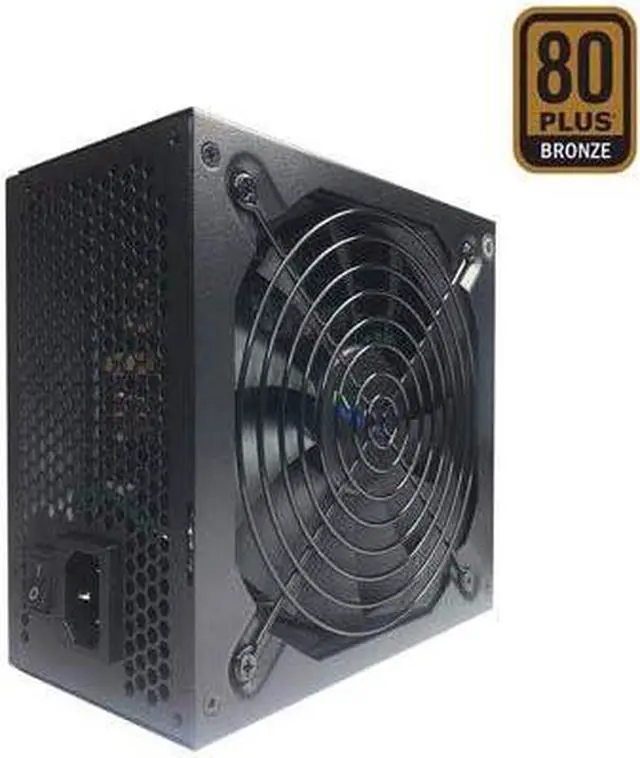

Apevia JUPITER600W Jupiter 600W 80 Plus Bronze Certified Active PFC ATX Gaming Power Supply, Supports Dual/Quad Core CPUs, SLI/Crossfire/Haswell

Apevia Jupiter series power supply is 80 Plus Bronze certified. It offers spellbinding performance for high-end PC gaming rigs and extreme systems that demand the most reliable and efficient energy source. This versatile PS supports NVidia SLI, as well as ATI crossfire and Haswell. The Jupiter series is also ideal for dual and quad core CPUs. The thermally controlled automatic sensor regulates fan speed while reducing noise. And a powerful 135mm black fan delivers outstanding ventilation. Model No.: ATX-JP600W Max. Power : 600W Material : Metal Color : Black Switches : Additional Power Switch 115/230 Volt Selector Switch (1)Product Features: 80 Plus Bronze Certified Universal AC Input by Active PFC (99% PF Typical) Cosmic Black Casing Supports Single 12V Output for Higher Power Usage Supports ATX 12V 2.3 Version Supports Dual/Quad Core CPUs Supports SLI, Crossfire & Haswell Automatic Thermally Controlled 135mm Black Fan All Cables are Sleeved Heavy Duty Protections Including OVP (Over Voltage Protection), OPP (Over Power Protection), UVP (Under Voltage Protection) and SCP (Short Circuit Protection) Double Forward Converter Design (2) Connectors 1 x 20/24pin Main Power 2 x 8(6+2)Pin PCI Express 1 x P8(4+4P) ESP 12V 4 x 4Pin Peripheral 4 x Serial ATA 1 x Floppy (3) Input Voltage Ranges:115V/230V Input Freguency:60Hz/50Hz (4)Output +3.3V@20A, +5V@20A, +12V@44A, [email protected], [email protected] (5) Operating Temperature: The Power Supply Should be Operated in an Ambient Temperature of 0°C to 40°C (6) Overall Performance: Total Output Power: Full Load at Normal Line Input Voltage. Hold up Time: 17ms at Full Load normal Line Input Voltage. Switching Frequency: 50KHz at Normal Line Input. For safety, do not overload, abuse or modify the power supply unit. Use of this unit for Bitcoin Mining is not suggested since it will shorten the life and cause failures of power supply. Use for mining purposes is not covered by warranty.
