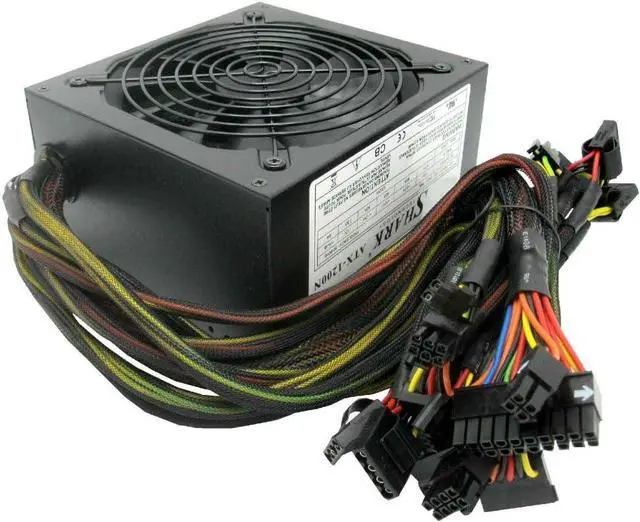

1200W (Peak) Gaming Computer Silent Smart Fan 6X SATA 4X PCIe SLI 80+% High Efficiency ATX 12V PC Power Supply
- Does NOT support Bitcoin, Ethereum, and other crypt-currency GPU mining none-standard PC operation.
- 1200-Watts peak output, designed for gamer DIY or Multimedia application.
- Energy-efficient: average 82.81% efficiency. Quiet operation with thermostat-controlled variable speed Smart Fan feature. Active PFC for reduced harmonic distortion.
- RoHS Compliant Lead-free - made with all hazardous-free components. Safe to Operate, Meets and exceed the following safety agency standard: TUV, FCC, CE, CB
- 6x SATA and 4x PCI-Express 6+2 pin power connectors. Use of PCIe splitters or molex-to-PCIe power adapter cables is not recommended.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Massive 120mm fan draws heat as it builds up from the processor area and cools the power supply at the same time.
Special slippery circular tube design fan-guard allows air to flow in smoothly and quietly while providing protection against unintended installation injury.
Connectors Details (All power cables are in protective nylon sleeving)
(1) 20+4 pin ATX Main Connector
(1) 4+4 pin CPU 12V Power Connector
(4) PCI-Express 6+2 pin Power Connectors
(1) Floppy Power Connectors
(4) 4-pin Molex Peripheral Power Connector - Patented EZ-Extract (squeeze-and-pull) Design
(6) Right-angle SATA Power Connectors - Even the tightest spot drive can be reached & connected easily
AC INPUT : 100-240V (Full Range - Automatic Switching)
Frequency: 50-60Hz
DC Output: 42A @+12V1, 42A @+12V2, 47A @+5V, 40A @+3.3V, 0.8A @-12V, 6A @+5Vsb
Operating temperature range: 10oC - 45oC (50oF - 113oF)
Operating relative humidity range: 20 to 90%
Energy-efficient: typical 84.10%, average 81.94% efficiency
MTBF Life Expectancy of this model: 100,000 hours* (11 years & 2 months)
* Excludes the life of the fan which may vary depending on operating environment
Dimensions: 150 x 160 x 86 mm
Special slippery circular tube design fan-guard allows air to flow in smoothly and quietly while providing protection against unintended installation injury.
Connectors Details (All power cables are in protective nylon sleeving)
(1) 20+4 pin ATX Main Connector
(1) 4+4 pin CPU 12V Power Connector
(4) PCI-Express 6+2 pin Power Connectors
(1) Floppy Power Connectors
(4) 4-pin Molex Peripheral Power Connector - Patented EZ-Extract (squeeze-and-pull) Design
(6) Right-angle SATA Power Connectors - Even the tightest spot drive can be reached & connected easily
AC INPUT : 100-240V (Full Range - Automatic Switching)
Frequency: 50-60Hz
DC Output: 42A @+12V1, 42A @+12V2, 47A @+5V, 40A @+3.3V, 0.8A @-12V, 6A @+5Vsb
Operating temperature range: 10oC - 45oC (50oF - 113oF)
Operating relative humidity range: 20 to 90%
Energy-efficient: typical 84.10%, average 81.94% efficiency
MTBF Life Expectancy of this model: 100,000 hours* (11 years & 2 months)
* Excludes the life of the fan which may vary depending on operating environment
Dimensions: 150 x 160 x 86 mm
