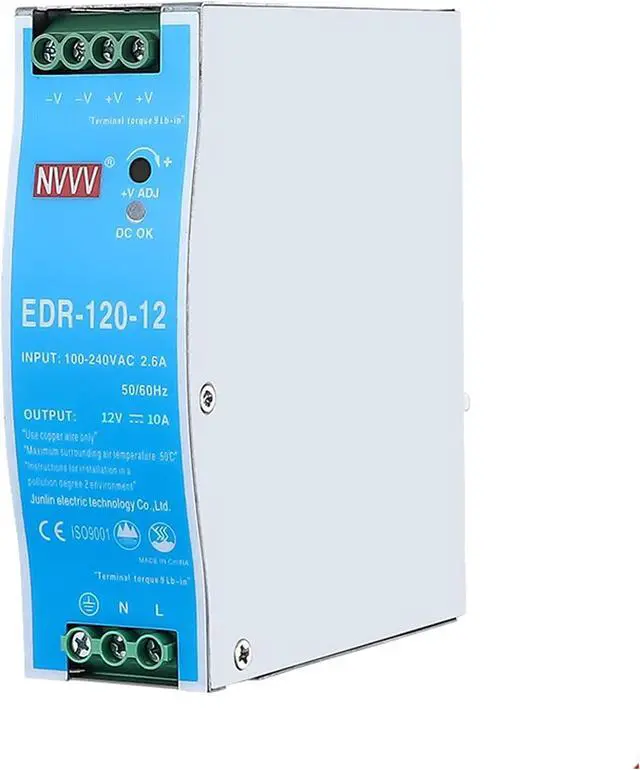

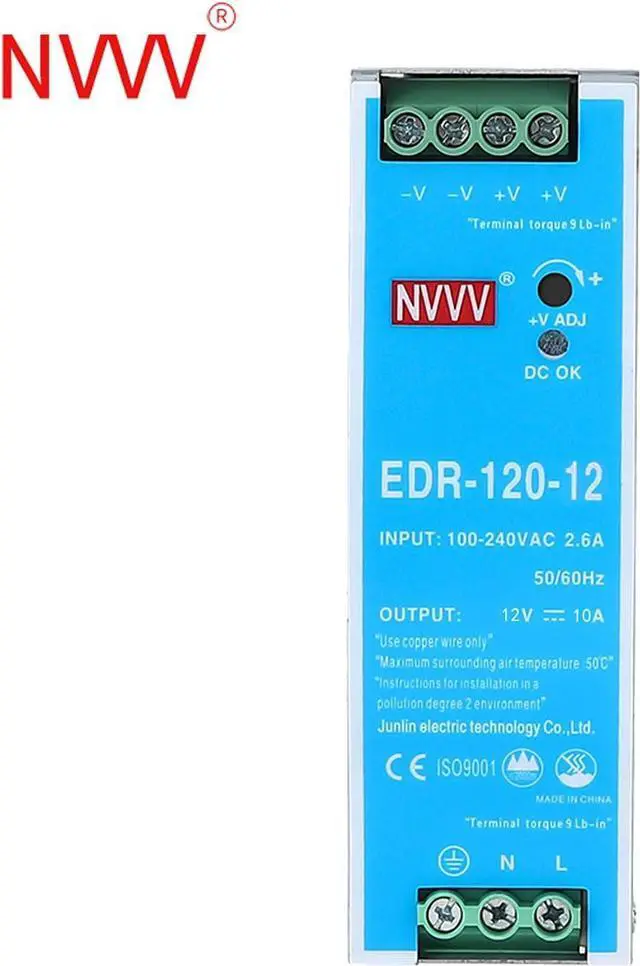

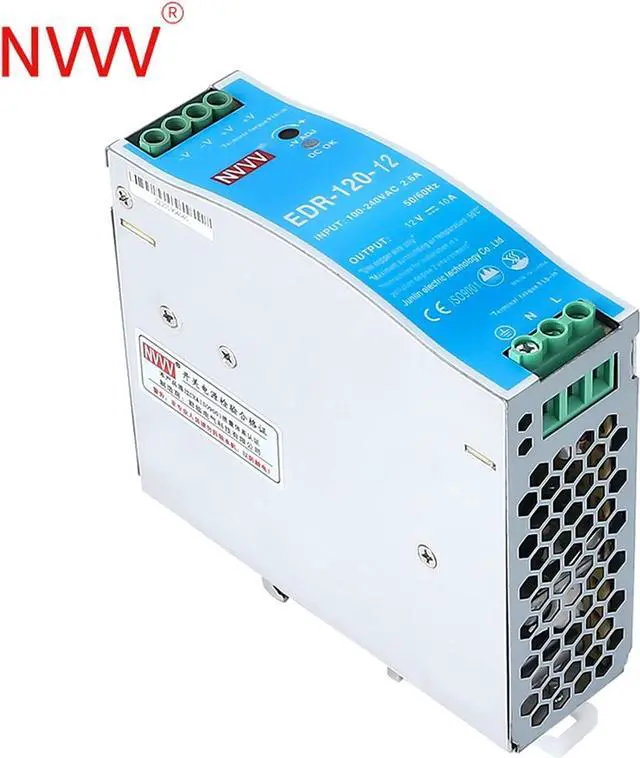

NVVV EDR-120-12 120W 12VDC 10Amp Industrial DIN Rail Power Supplies (12V 120W)
- EDR-120-12: 120W 12V 10A(MAX)
- Universal AC input 85~264VAC
- Used for industral automation
- Full protections: Short/Overload/Over Voltage/Over temperature
- Can be installed on DIN RAIL
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Package Include:
1 x Single output DIN rail power supply 12 Volts 10 Amps 120 Watts
specifications:
output power (W): 120
ripple & noise (mV p-p): 120 mV
load regulation: ± 1 %
line regulation: ± 0.5 %
efficiency: 87.5 percent
size (L x W x H) inches: 4.5 x 1.6 x 4.9
detailed specifications:
primary output voltage (VDC): 12
output current (a): 10
maximum output power (W): 120
family: EDR-120
input voltage (VAC): 85 to 264
input frequency: 47 to 63
maximum input current (a): 2.25
output connector Type: screw terminal
efficiency: 87.5%
operating temperature-min (CEL): -10
operating temperature-max (CEL): 60

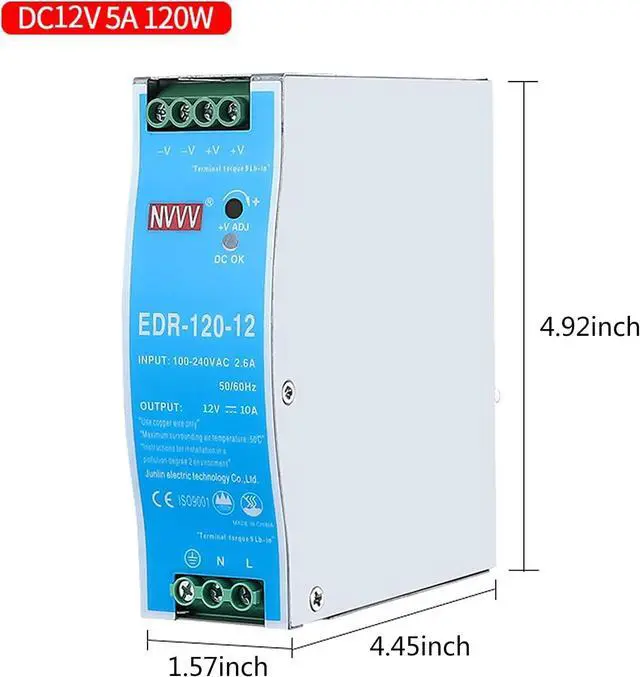

Length (inch): 1.57
width (inch): 4.92
height (inch): 4.45
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV

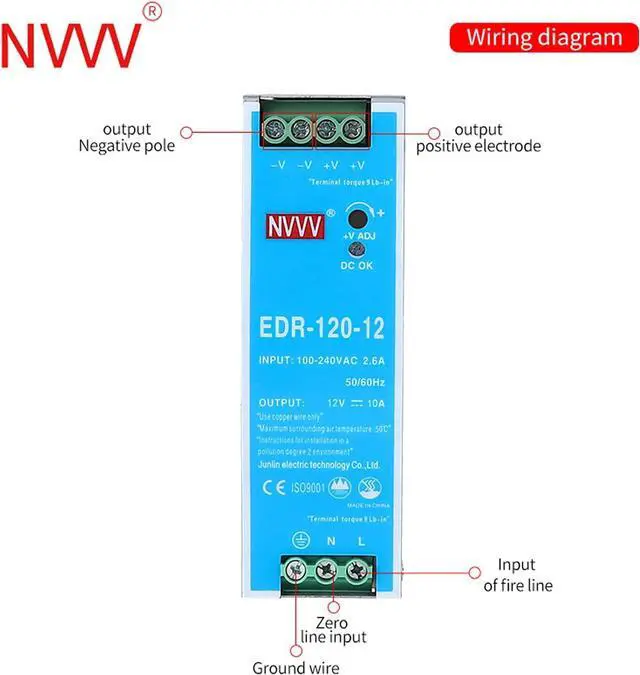

Connection instruction
: Ground wire
L: Live wire
N: Negative wire
+V: DC power output +
-V: DC power output -
+V ADJ: output voltage regulation
1 x Single output DIN rail power supply 12 Volts 10 Amps 120 Watts
specifications:
output power (W): 120
ripple & noise (mV p-p): 120 mV
load regulation: ± 1 %
line regulation: ± 0.5 %
efficiency: 87.5 percent
size (L x W x H) inches: 4.5 x 1.6 x 4.9
detailed specifications:
primary output voltage (VDC): 12
output current (a): 10
maximum output power (W): 120
family: EDR-120
input voltage (VAC): 85 to 264
input frequency: 47 to 63
maximum input current (a): 2.25
output connector Type: screw terminal
efficiency: 87.5%
operating temperature-min (CEL): -10
operating temperature-max (CEL): 60
Length (inch): 1.57
width (inch): 4.92
height (inch): 4.45
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV
Connection instruction
: Ground wire
L: Live wire
N: Negative wire
+V: DC power output +
-V: DC power output -
+V ADJ: output voltage regulation
