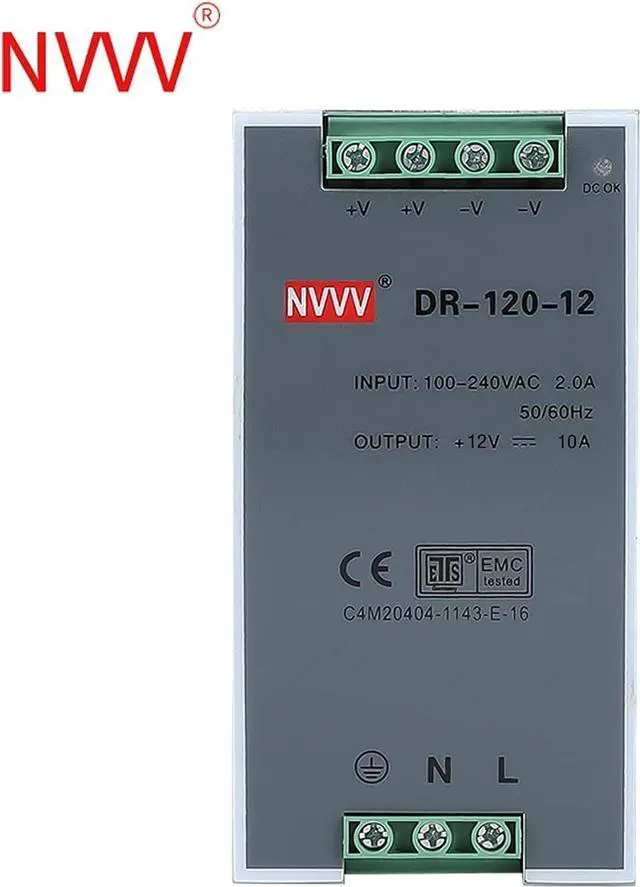

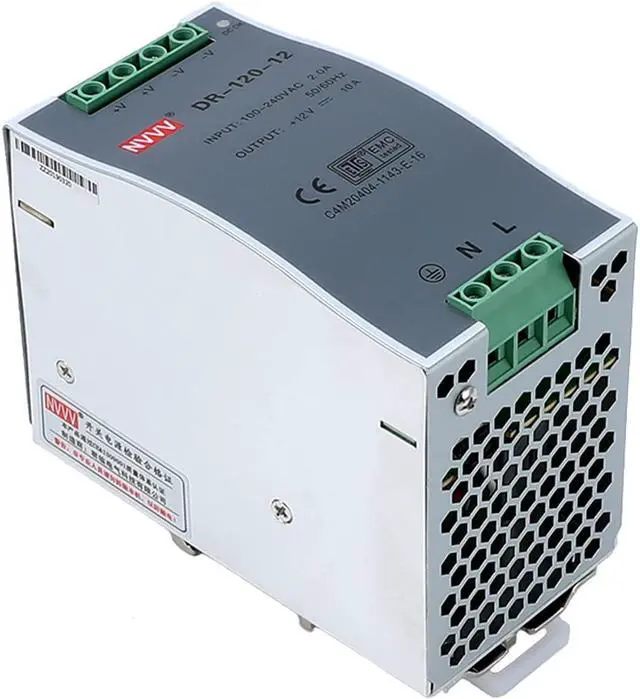

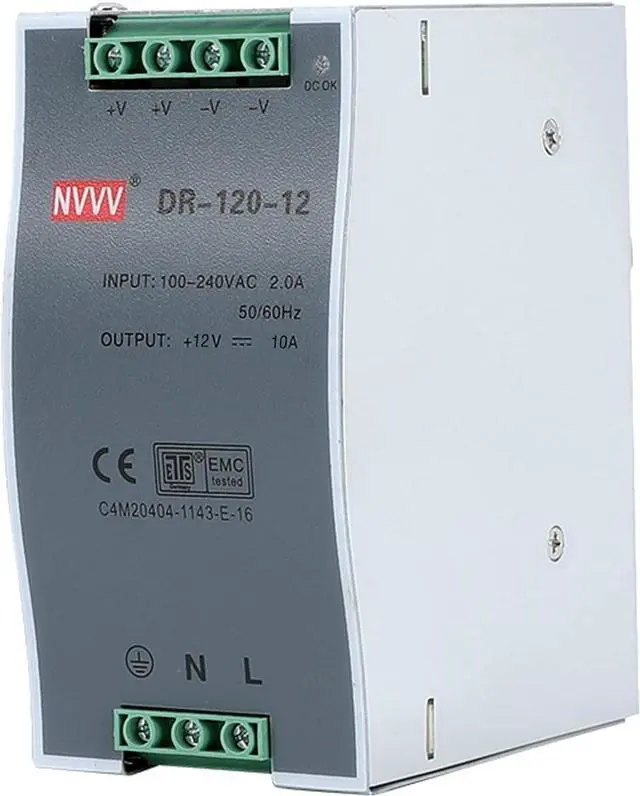

NVVV DR-120-12 AC to DC DIN-Rail Mount Power Supply, 12V, 10 Amp, 120W Single Extreme -30 to 70 °C (-22 to 158 °F) Operating Temp, Overload Protection, Metal, Silver+Grey
- POWER - The DR-120 specs out with 12 volts at 10 amps and has a universal AC input range; Gone through 100% full load burn-in tests; Input voltage 85-264 VAC at 47-63Hz

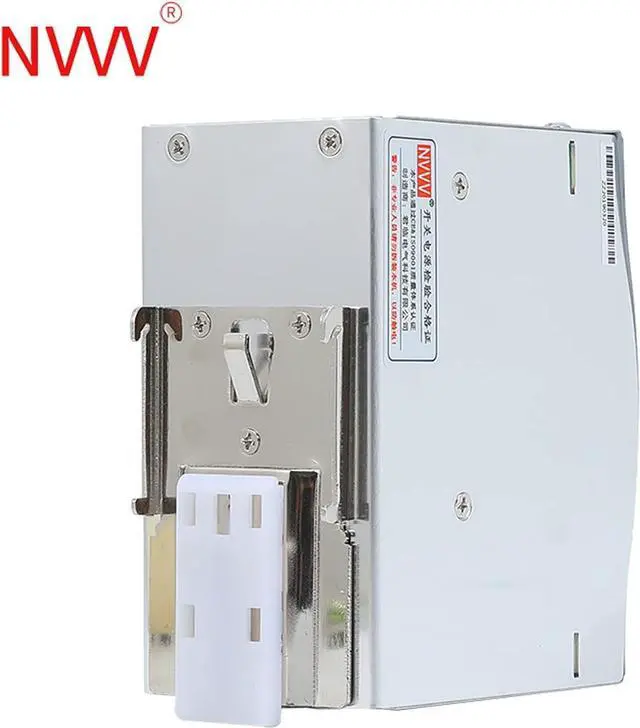

- Easy install - the door-120 series power supply was designed to easily install on din rail ts-35/7.5 or 15 rails to provide for an efficient and organized work space
- Protections - the power supply protects against short-circuits, overloading, over-voltage, and over temperature ensuring you and your place of work remain safe and recovers automatically after failure
- Industrial - this power supply is designed to work with the most rigorous of machinery and adaptations including heavy machinery like cnc machines
- WARRANTY: Our products use high-quality components, and through strict quality testing, out of confidence in product quality, we provide you with a three-year warranty.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

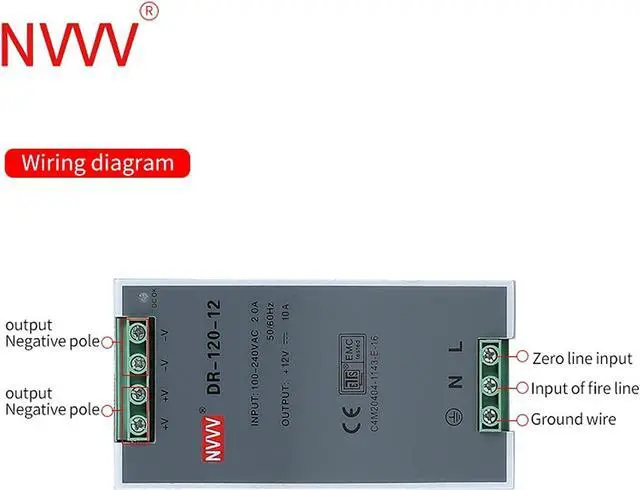

Package Include: 1 x 120W 12V single output industrial DIN rail power supply DR-120-12 specifications: output power (W): 120 ripple & noise (mV p-p): <120 mV load regulation: ± 1 % line regulation: ± 0.5 % efficiency: >86% size (L x W x H): 2.58 x 3.94 x 4.93 inches Overvoltage Protection: When the outputvlotage is more than 135%, the output will be turned off. It will recover automatically after the abnormal. detailed specifications: primary output voltage (VDC): 12 output current (a): 10 maximum output power (W): 120 family: DR-120 input voltage: 85 to 264 VAC input frequency: 47Hz to 63Hz maximum input current (a): 2.25 output connector Type: screw terminal operating temperature-min (CEL):-30 to 70 °C operating temperature-max (CEL): 50 agency approvals: 3C/CE/ISO color: silver style: DIN. Brand Name: NVVV Connection instruction ?: Ground wire L: Live wire N: Negative wire +V: DC power output ''+'' -V: DC power output ''-'' +V ADJ: output voltage regulation
