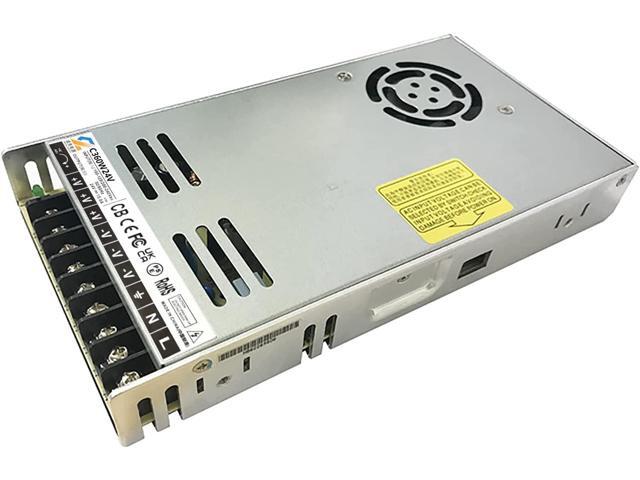

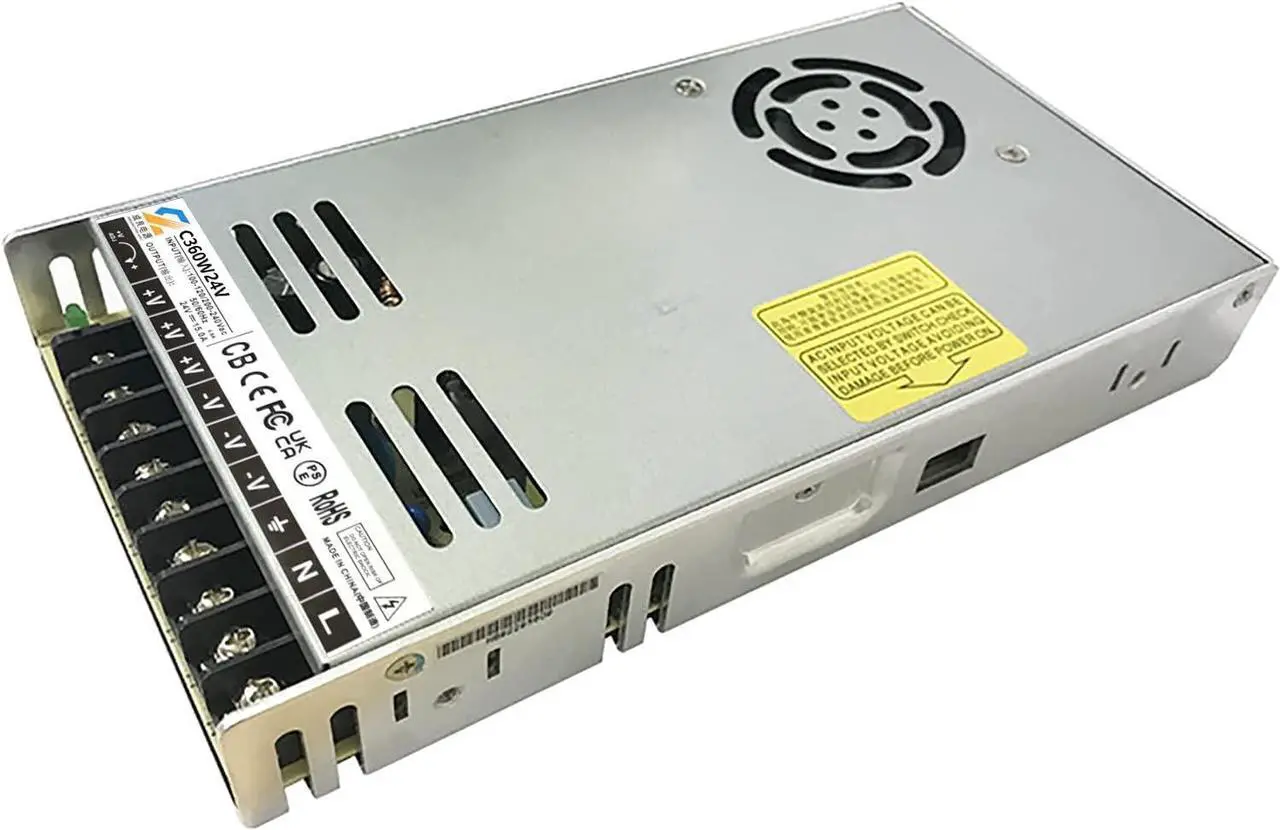

Chengliang Power Supplys 24v 15a 360w Dc Original Ender 3 Pro 3D Printer Switching Power Supply

Chengliang Power Supply CL-C360W24V-N /b>
Color Silver Size L215xW115xH30mm Weight 720g

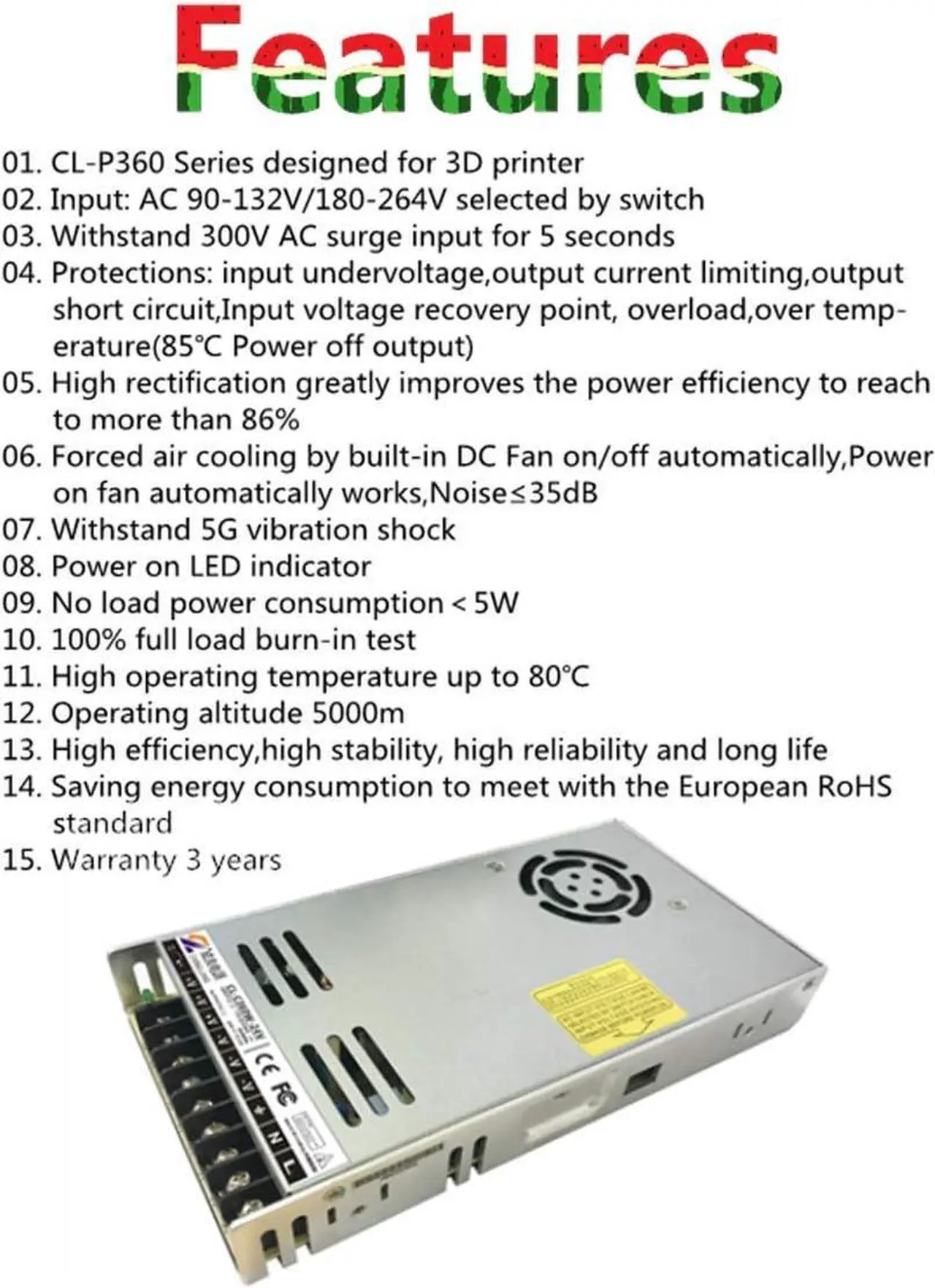

Features
Auto on/off cooling fan power on auto works Noise35dB
High rectification greatly improves power efficiency to reach to more than 86%
Withstand 300v ac surge input for 5 seconds
5G anti-vibration anti-shock
Power on led indicator
No load power consumption5W(under -25~+60 under full load)
100% full load burn-in test
High operating temperature up to 80
Operating altitude 5000m
Protections input undervoltage output current limiting output short circuit Input voltage recovery point overload over temperature(85 power off output)

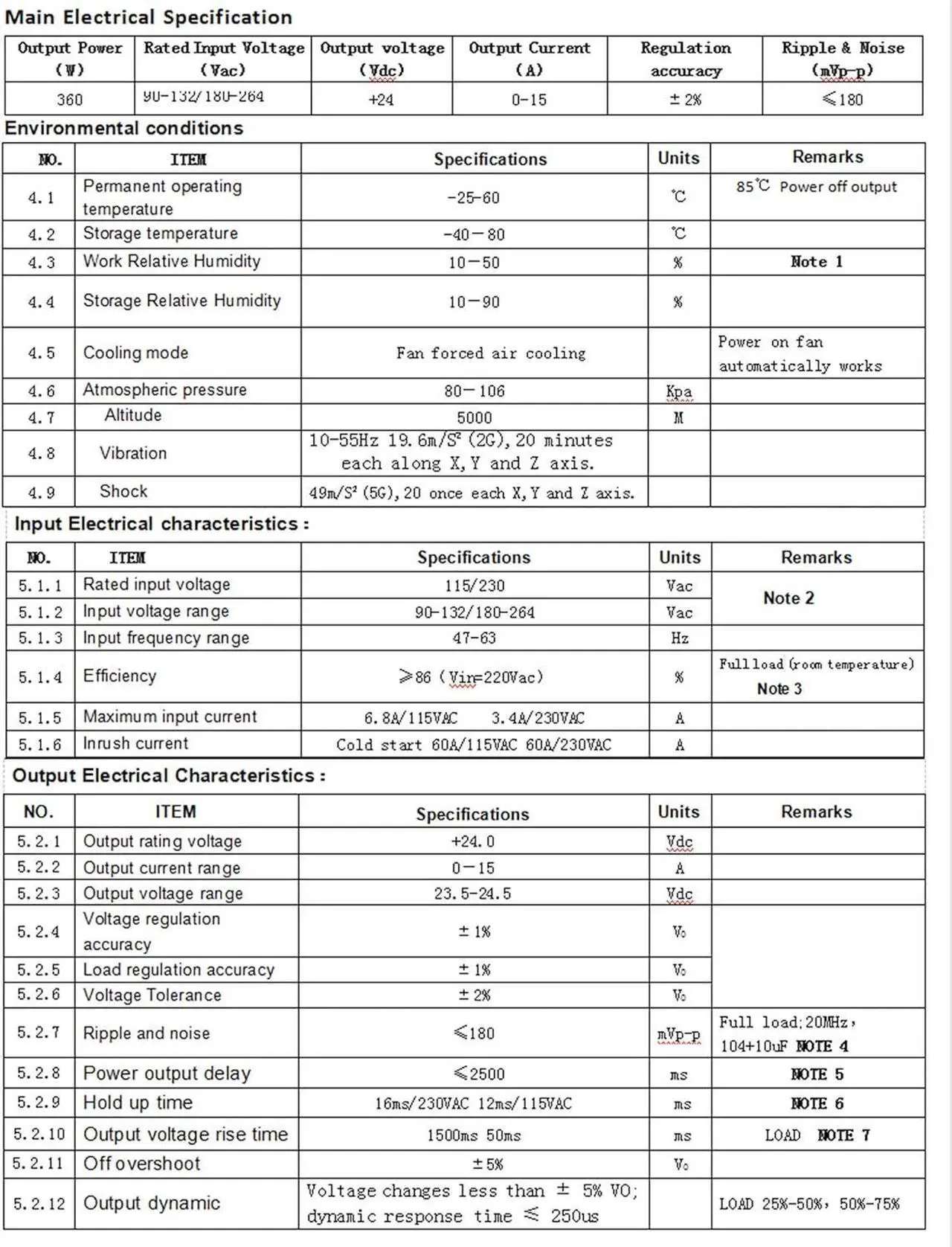

Output
Dc Rated Voltage 24V
Dc Voltage Range 23.5-24.5v
Rated Current 15a
Current Range 0-15a
Rated Power 360w
Ripple and noise180mVp-p
Voltage regulation±1%
Load regulation±1%
Voltage tolerance±2%
Power output delay2500ms
Hold up time 16ms/230vac 12ms/115vac
Voltage rise time 1500ms 50ms

Input
Rated voltage 115/230vac
Voltage range 90-132/180-264vac
Frequency range 47/63Hz
Efficiency%86
Maximum current 6.8a/115vac 3.4a/230vac
Inrush Current 60a/115vac 60a/230vac
Leakage current<1.0mA(Vin=220Vac)

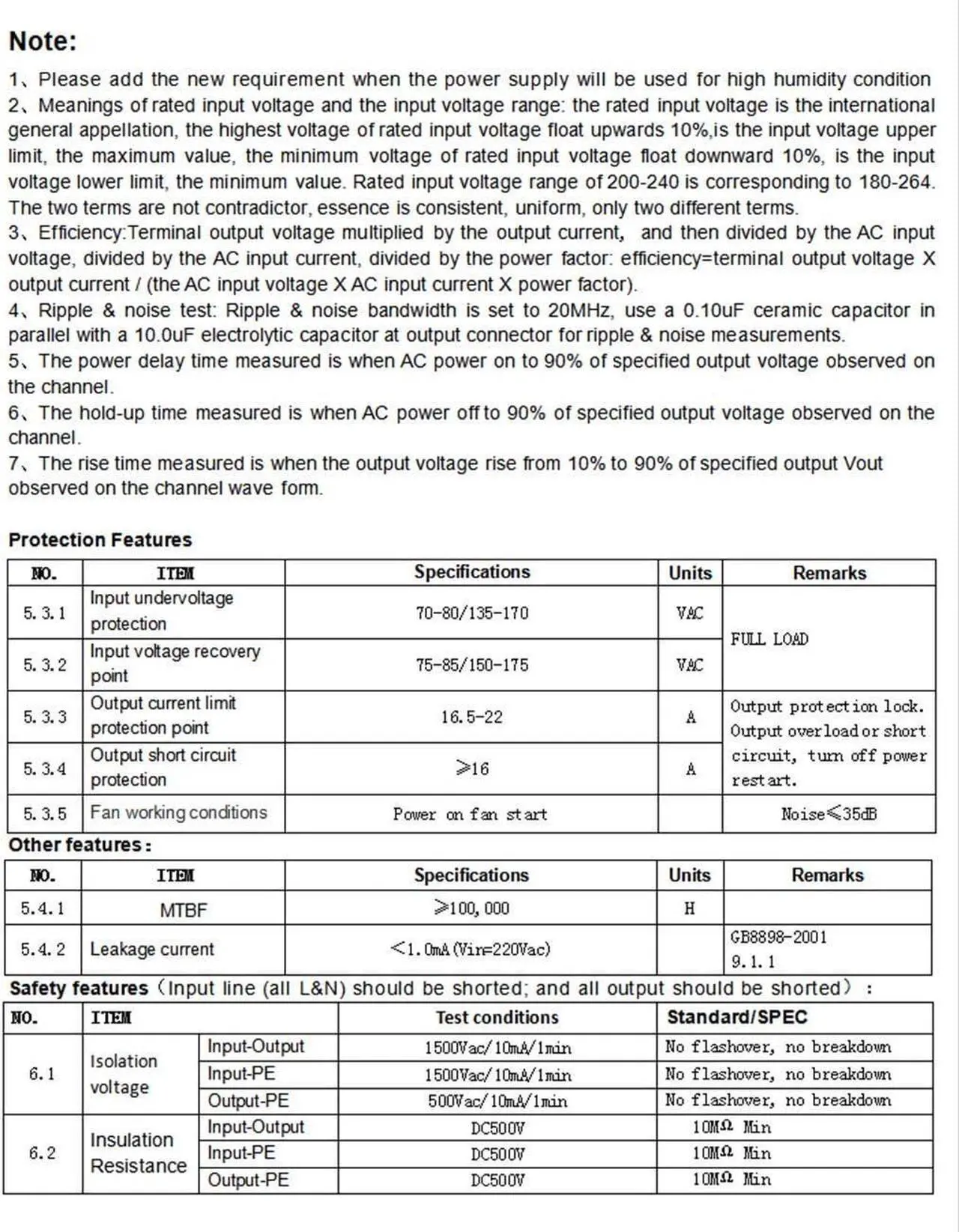

Note
This is single-output enclosed type power supply Install and remove it carefully
Do not place other flammable items within range of 50cm round hole mesh heat vents of the power supply shell
Do not place other items withn range of 10cm round case,ensure that psu has good thermal ensure safety
Do not overload
Do not touch case of psu during working
Do not output after short circuit,if no output,power off one minute restart
Check if power wires is correctly connected before use,prevent reverse connection

CHENGLINAG
Built up in 2013 Always Focus on switching&driving power supply professional R&D production and Sale Got certifications ISO9001 UL CE FCC RoHS etc
