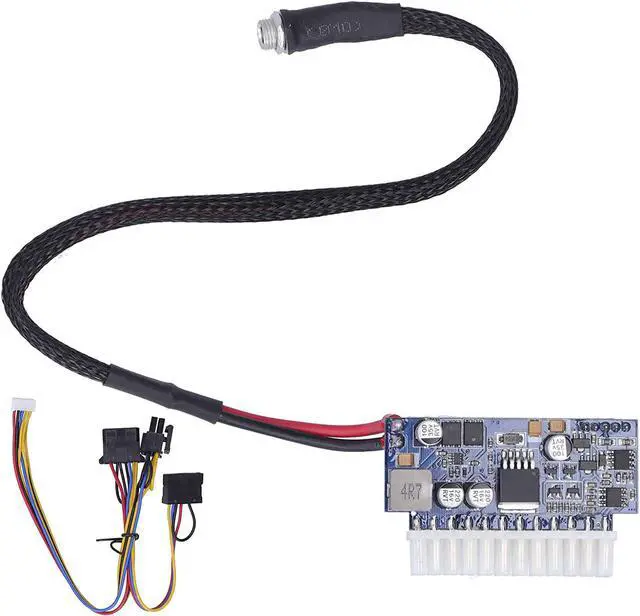

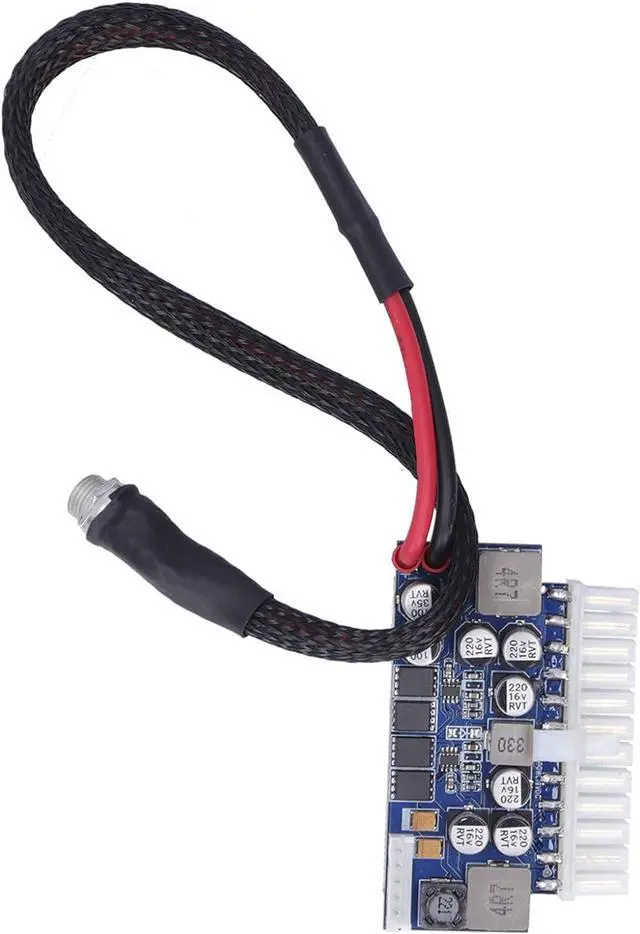

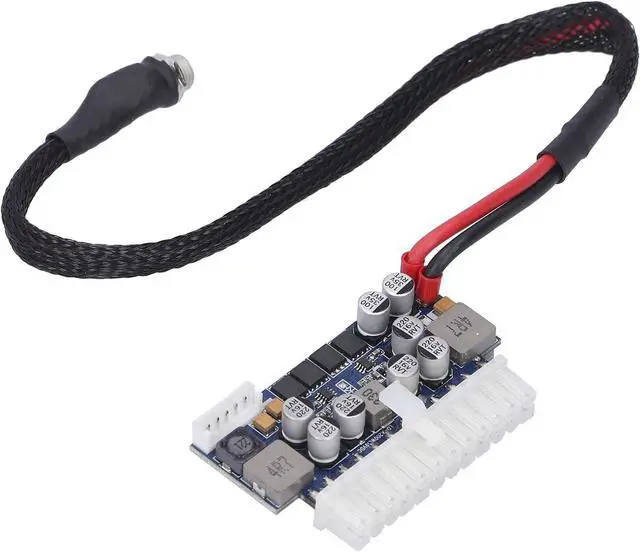

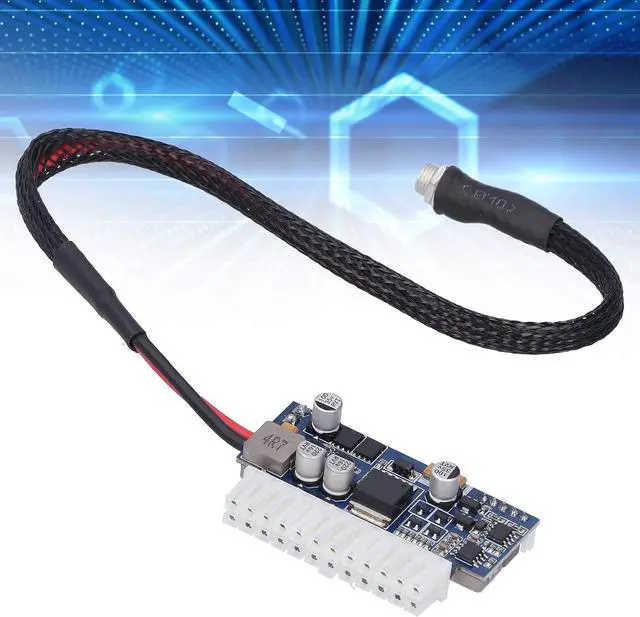

LD A200WL 19V 200W DC ATX Power Adapter Board with High Heat Resistance, Over Current and Short Circuit Protection for Small ATX Boards,Mini Computers,HTPC Computers,POS Machines

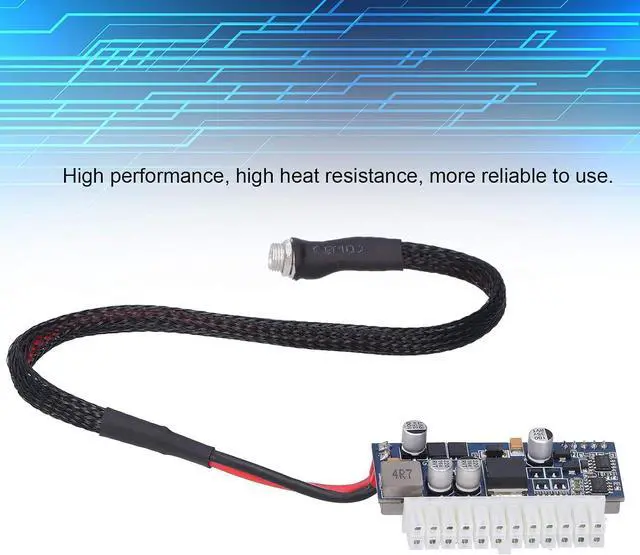

- 200W power adapter board using highquality PCB material, high performance, high heat resistance, more reliable to use
- Eliminate 24 unnecessary wires by plugging directly into the motherboard ATX connector
- Suitable for small ATX boards to save space in the case without affecting power requirements
- With overcurrent protection and shortcircuit protection
- Suitable for MINI computers, HTPC computers, POS machines, ITX cases, network servers, industrial control systems
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec:
Item Type: Desktop Computer Power Module
Material: PCB
Model: LD-A200WL
Power: 200W
Input Voltage: 17-24V
Output Voltage/Maximum Load: +5VSB/2A, +5VDC/8A, +3.3VDC/8A, +12VDC/12A, -12VDC/0.15A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin,1 x IDE, 1 x DC5525
Cable Length:
DC Cable: Approx. 320mm/12.6in
CPU Cable: Approx. 210mm/8.3in
IDE Cable: Approx. 200mm/7.9in

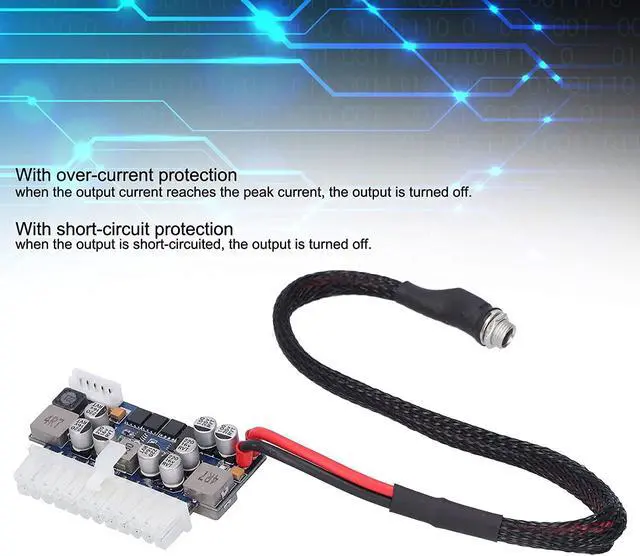

Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/Humidity: -5 - 55/45% - 75%
Storage Temperature/Humidity: -40 - 70/10% - 90%
Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
PackageList:
1 x Power Adapter Board
Item Type: Desktop Computer Power Module
Material: PCB
Model: LD-A200WL
Power: 200W
Input Voltage: 17-24V
Output Voltage/Maximum Load: +5VSB/2A, +5VDC/8A, +3.3VDC/8A, +12VDC/12A, -12VDC/0.15A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin,1 x IDE, 1 x DC5525
Cable Length:
DC Cable: Approx. 320mm/12.6in
CPU Cable: Approx. 210mm/8.3in
IDE Cable: Approx. 200mm/7.9in
Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/Humidity: -5 - 55/45% - 75%
Storage Temperature/Humidity: -40 - 70/10% - 90%
Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
PackageList:
1 x Power Adapter Board
