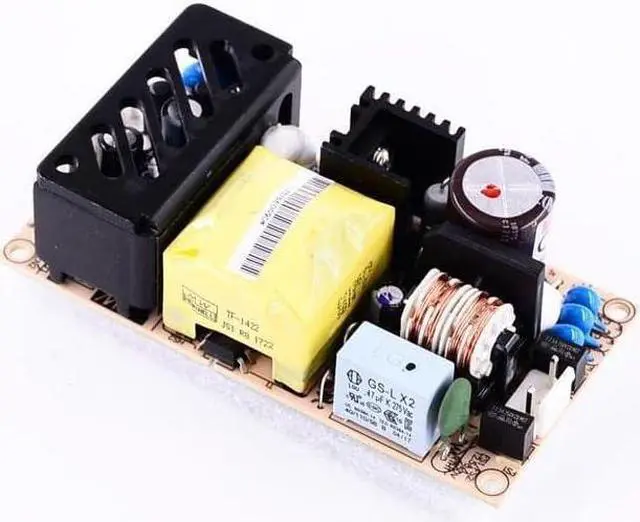

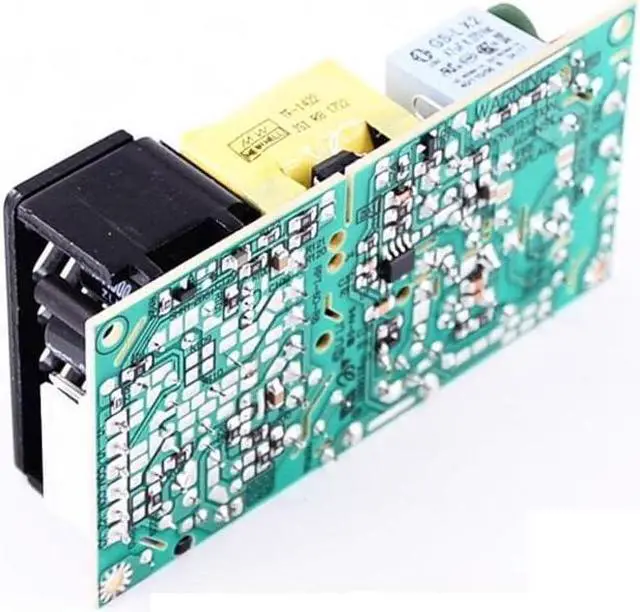

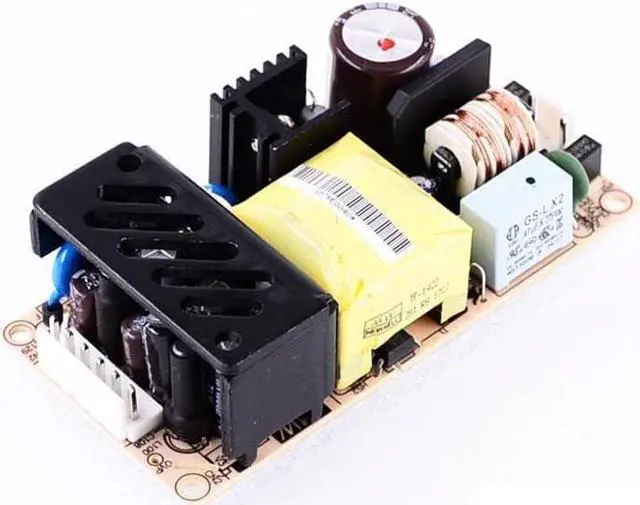

MW Mean Well Open Frame PCB Type Medical Power Supply RPT-60A/B/C 4" X 2" Triple Output Switching Power Supply Multi Output (RPT-60B)
- 100% original RPT-60W|(5V/4.4A 12V/2.2A -5V/0.55A).(5V/4.4A 12V/2.2A -12V/0.55A).(5V/4.4A 15V/0.65A -15V/0.55A) For Oralirrigator,Hemodialysis machine,Medical computer monitors,Sleep apnea devices
- The RPT-60 series conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, is a 60W highly reliable green PCB type medical power supply
- Input 90-264Vac,4""×2"" compact size,Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Short circuit / Overload / Over voltage / Over temperature Protections, Extremely low leakage current, 3 years warranty
- 30 years of well-known standard power supply brand, 24 hours fast after-sales support from countries in Asia, Europe and America More than 85% of MW's(MEAN WELL's) products can be shipped within 24 hours, supporting mass wholesale.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The RPT-60 series Suitable for Oral irrigator, Hemodialysis machine, Medical computer monitors, Sleep apnea devices
Features :
?4"×2" compact size
?Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
?Suitable for BF application with appropriate system consideration
?Cooling by free air convection
?EMI class B for class ? configuration
?Extremely low leakage current
?Protections: Short circuit / Overload / Over voltage
?3 years warranty
Description ?
RPT-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4? by 2? footprint. It accepts 90~264VAC input and offers dual output voltages .
RPT-60 is able to be used for Class? (with FG) system design. The extremely low leakage current is less than 150 A. In addition, it conforms to international medical regulations (2*MOPP) and EMC
BS EN/EN55011.
Features :
?4"×2" compact size
?Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
?Suitable for BF application with appropriate system consideration
?Cooling by free air convection
?EMI class B for class ? configuration
?Extremely low leakage current
?Protections: Short circuit / Overload / Over voltage
?3 years warranty
Description ?
RPT-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4? by 2? footprint. It accepts 90~264VAC input and offers dual output voltages .
RPT-60 is able to be used for Class? (with FG) system design. The extremely low leakage current is less than 150 A. In addition, it conforms to international medical regulations (2*MOPP) and EMC
BS EN/EN55011.
