MW Mean Well Enclosed Type LRS-150F-12/15/24/36/48/5V Non-PFC LRS Series 150W Single Output Switching Power Supply (LRS-150F-12)
- 100% original LRS-150W|(12V 12.5A).(15V 10A).(24V 6.5A).(36V 4.3A).(48V 3.3A).(5V 22A) For Industrial automation control ,Mechanical and electrical equipment,Electronic instruments,Household appliances
- The LRS-150F series is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943, serves as a high price-to-performance power supply solution for various industrial applications.
- Input 85-264Vac,economical,Miniature size and 1U low profile
- The metal shell has good heat dissipation, stable operation in the environment of -30? to 70?, and the efficiency is as high as 90%
- 30 years of well-known standard power supply brand, 24 hours fast after-sales support from countries in Asia, Europe and America More than 85% of MW's(MEAN WELL's) products can be shipped within 24 hours, supporting mass wholesale.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The LRS-150F series Suitable for Industrial automation machinery, Industrial control system, Mechanical and electrical equipment, Electronic instruments, equipments or apparatus, Household appliances, such as control cabinet power supply system, beauty picosecond power supply, supermarket container display system, plant light lighting, 3D printer power supply, shop door head lights
Features :
?Universal AC input / Full range
?Withstand 300VAC surge input for 5 second
?No load power consumption<0.5W
?Miniature size and 1U low profile
?High operating temperature up to 70?
?Protections: Short circuit / Overload / Over voltage / Over temperature
?Cooling by free air convection
?Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1, 2-16 for household appliances
?Operating altitude up to 5000 meters
?Withstand 5G vibration test
?High efficiency, long life and high reliability
?LED indicator for power on
?Over voltage category ?
?100% full load burn-in test
?3 years warranty
Description ?

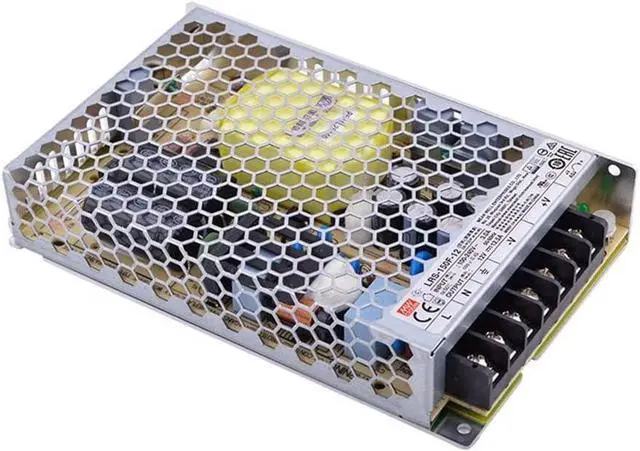

LRS-150F series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30? through 70? under air convection without a fan.
Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to Rated wattage Full range input vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150F series serves as a high price-to-performance power supply solution for various industrial applications.
Features :
?Universal AC input / Full range
?Withstand 300VAC surge input for 5 second
?No load power consumption<0.5W
?Miniature size and 1U low profile
?High operating temperature up to 70?
?Protections: Short circuit / Overload / Over voltage / Over temperature
?Cooling by free air convection
?Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1, 2-16 for household appliances
?Operating altitude up to 5000 meters
?Withstand 5G vibration test
?High efficiency, long life and high reliability
?LED indicator for power on
?Over voltage category ?
?100% full load burn-in test
?3 years warranty
Description ?
LRS-150F series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30? through 70? under air convection without a fan.
Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to Rated wattage Full range input vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150F series serves as a high price-to-performance power supply solution for various industrial applications.
