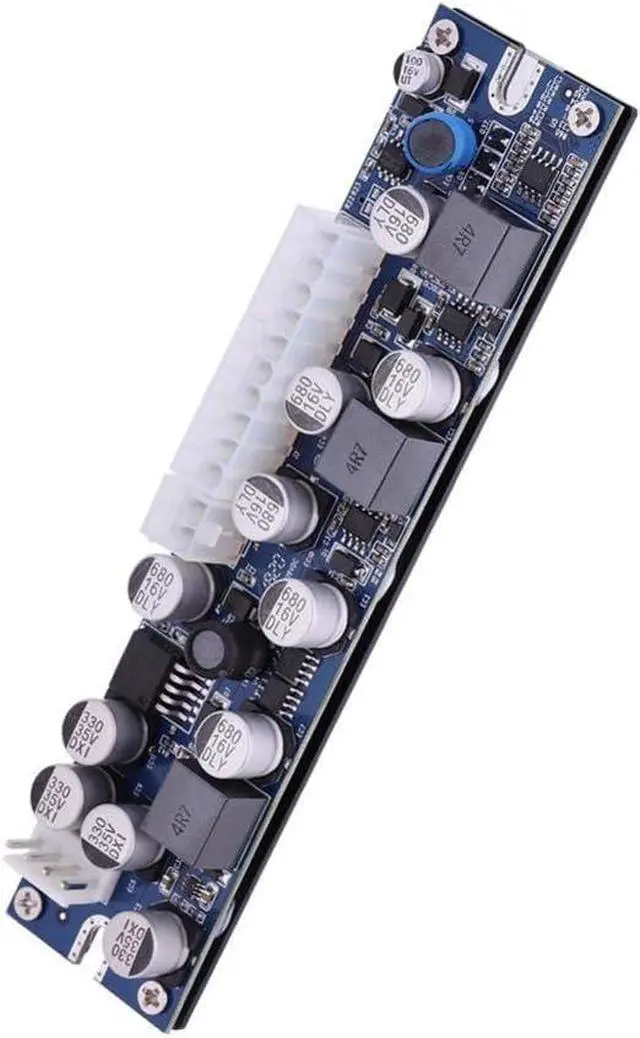

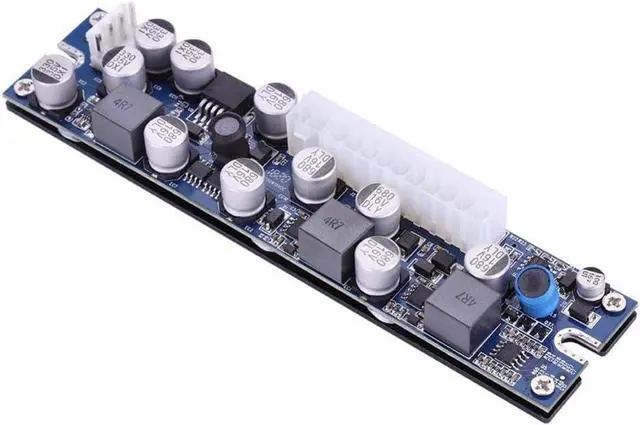

Mini LD-200W 19V DC Input Pin Power Module DC-ATX Power Supply DC 24pin ATX to 12V AUX for Computer.
Limited time offer, ends 08/16 By dazella store
- Fanless design, 100% silent.
- High Quality Polymer Caps on the PCBA, Long life.
- Perfect DC PSU for mini ITX Motherboards.
- Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.

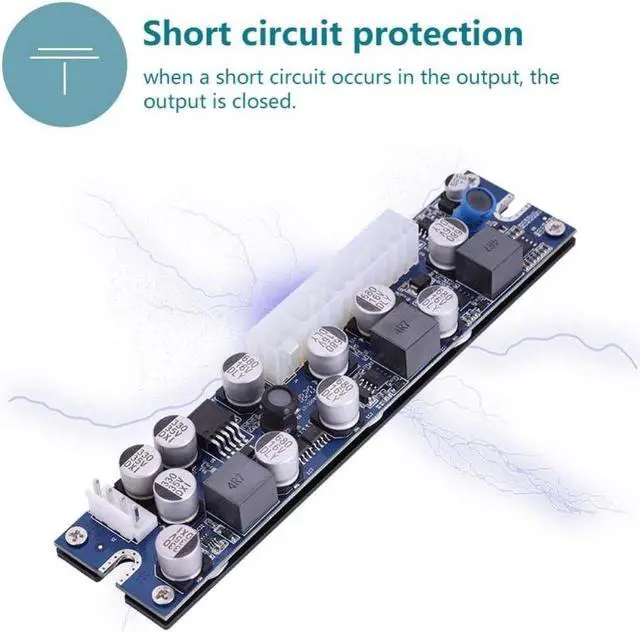

- Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Fanless design, solid Polymer Caps on the PCBA, long life. Perfect DC PSU for Motherboards, high performance with high heat-mode feature, more reliable. Adopt industrial solid capacitor, ideal for being used in rough environment.
Specifications:
Condition: 100% Brand New

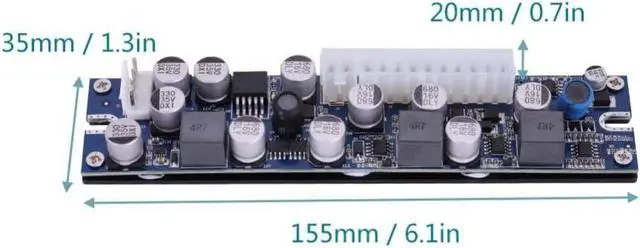

Module Size: Approx. 155 * 35 * 20 mm / 6.1 * 1.3 * 0.7 in
Input Characteristics:
Input Voltage Range: 16VDC - 24VDC
Input Current Range: 12.0A Max @19VDC
Input Surge Current: 12.0AMax @19VDC
Work Efficiency: 85% or more
Output Requirement: Output (Vin=19VDC)
Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.
Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
Environment Description:
Working Temperature/Humidity: 0°C to 40°C / 45% - 75%
Storage Temperature/Humidity: - 40°C to +70°C / 10% - 90%
Atmospheric Pressure: 86Kpa -- 106Kpa

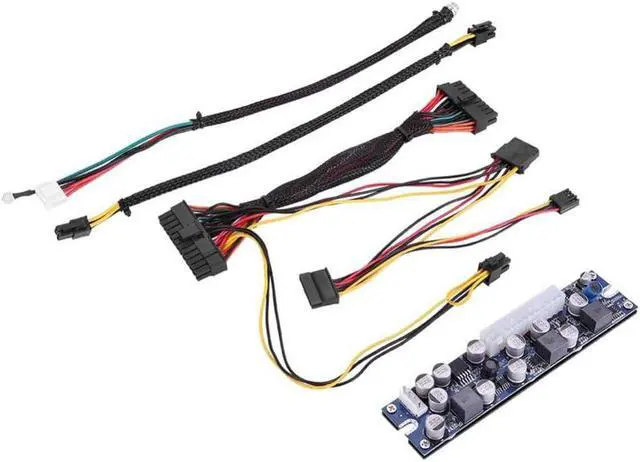

Package Included:
1 x Power Module
1 x 24pin ATX to 12V AUX
1 x 4 pin Molex Power Supply
1 x SATA Power
1 x 4 pin Floppy Drive Power Connection
1 x 4 pin Wire
1 x DC Input Wire
Notes:
1.Please allow 1-3 cm error due to manual measurement. Thanks for your understanding.
2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Fanless design, solid Polymer Caps on the PCBA, long life. Perfect DC PSU for Motherboards, high performance with high heat-mode feature, more reliable. Adopt industrial solid capacitor, ideal for being used in rough environment.
Specifications:
Condition: 100% Brand New
Module Size: Approx. 155 * 35 * 20 mm / 6.1 * 1.3 * 0.7 in
Input Characteristics:
Input Voltage Range: 16VDC - 24VDC
Input Current Range: 12.0A Max @19VDC
Input Surge Current: 12.0AMax @19VDC
Work Efficiency: 85% or more
Output Requirement: Output (Vin=19VDC)
Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.
Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
Environment Description:
Working Temperature/Humidity: 0°C to 40°C / 45% - 75%
Storage Temperature/Humidity: - 40°C to +70°C / 10% - 90%
Atmospheric Pressure: 86Kpa -- 106Kpa
Package Included:
1 x Power Module
1 x 24pin ATX to 12V AUX
1 x 4 pin Molex Power Supply
1 x SATA Power
1 x 4 pin Floppy Drive Power Connection
1 x 4 pin Wire
1 x DC Input Wire
Notes:
1.Please allow 1-3 cm error due to manual measurement. Thanks for your understanding.
2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
