Milipow Replacement Power Supply for FSP270-60LE 270W / 300W for HP 5188-2755 HP 5188-7520 HP 5188-7521 HP AP15PC14 HP GX754AA HP Media Vault MV2010 HP Media Vault MV2020 HP Pavilion s7730be
- Brand New Replacement for FSP270-60LE power supply
- Compatible Models: For HP Proliant G7 N54L N40L N36L, DPS-150TB 630295-001
- HP 5188-2755 HP 5188-7520 HP 5188-7521 HP AP15PC14 HP GX754AA HP Media Vault MV2010 HP Media Vault MV2020 HP Pavilion s7730be & many more
- Warranty : 12 months , CN Seller
- Order received before 3PM BST will be shipped same day ( Except Weekend & Holidays)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Milipow Replacement for FSP270-60LE 300W /270W Power supply for Micro servers
Features:
Low Noise Fan
Industrial Grade
Compatible Models:
HP HP ProLiant Microserver N36L
HP HP ProLiant Microserver N40L MICROSERVER
HP HP ProLiant Microserver N54L MICROSERVER
HP HP ProLiant Microserver G7
Technical Specifications:

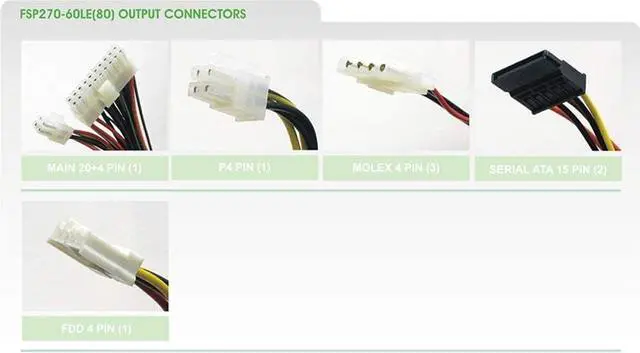

CONNECTORS
1 x 20+4pin ATX - Can be used with both 20 pin or 24pin motherboards
1 x 4pin ATX 12V
2 x 15pin SATA
2 x 4pin Molex
CABLE RUNS
Distance (+/-1cm) from case cable exit to:
20+4pin ATX: 20cm
4pin ATX12V: 30cm
1st SATA: 30cm, from 1st SATA to 2nd SATA: 15cm. (total cable length 45cm)
1st Molex: 32cm, 1st Molex to 2nd Molex: 15cm. (total cable length 47cm)
Output Power
Maximum 300W/270W @ 25°C/50°C respectively
Efficiency
80% at typical load -
PFC
Active PFC (Power Factor Correction) >0.90 at full load 230Vac or >0.95 115Vac
Weight : 650 grams
Colour : Silver

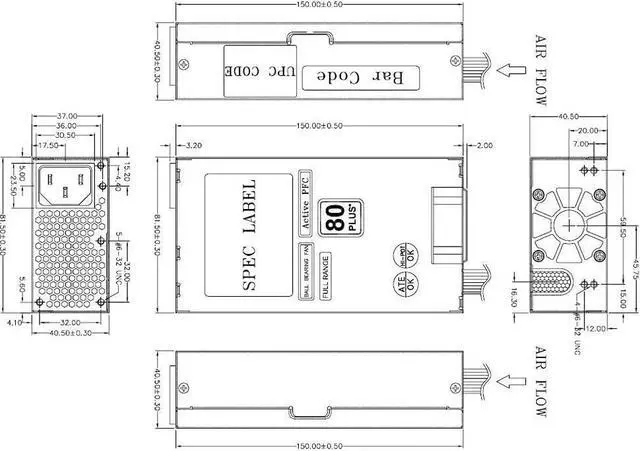

Dimensions : 150x81.5x40.3mm (LxWxH)
Protection: OVP, OPP, Short Circuit Protection
INPUT
Input Voltage : 90 to 263Vac
Input Frequency: 47~63Hz
MTBF : 100,000 hours excluding DC fan
Input Current : <1.5A rms @ 230Vac
OUTPUT
Voltage : +5V , +12V1 , +12V2, -12V, +3.3V , +5Vsb
Min Load : 0.5A, 1A, 1A , 0A, 0.5A, 0A
Max Load: 18A, 16A, 10A, 0.8A, 16A, 2.5A
Features:
Low Noise Fan
Industrial Grade
Compatible Models:
HP HP ProLiant Microserver N36L
HP HP ProLiant Microserver N40L MICROSERVER
HP HP ProLiant Microserver N54L MICROSERVER
HP HP ProLiant Microserver G7
Technical Specifications:
CONNECTORS
1 x 20+4pin ATX - Can be used with both 20 pin or 24pin motherboards
1 x 4pin ATX 12V
2 x 15pin SATA
2 x 4pin Molex
CABLE RUNS
Distance (+/-1cm) from case cable exit to:
20+4pin ATX: 20cm
4pin ATX12V: 30cm
1st SATA: 30cm, from 1st SATA to 2nd SATA: 15cm. (total cable length 45cm)
1st Molex: 32cm, 1st Molex to 2nd Molex: 15cm. (total cable length 47cm)
Output Power
Maximum 300W/270W @ 25°C/50°C respectively
Efficiency
80% at typical load -
PFC
Active PFC (Power Factor Correction) >0.90 at full load 230Vac or >0.95 115Vac
Weight : 650 grams
Colour : Silver
Dimensions : 150x81.5x40.3mm (LxWxH)
Protection: OVP, OPP, Short Circuit Protection
INPUT
Input Voltage : 90 to 263Vac
Input Frequency: 47~63Hz
MTBF : 100,000 hours excluding DC fan
Input Current : <1.5A rms @ 230Vac
OUTPUT
Voltage : +5V , +12V1 , +12V2, -12V, +3.3V , +5Vsb
Min Load : 0.5A, 1A, 1A , 0A, 0.5A, 0A
Max Load: 18A, 16A, 10A, 0.8A, 16A, 2.5A
