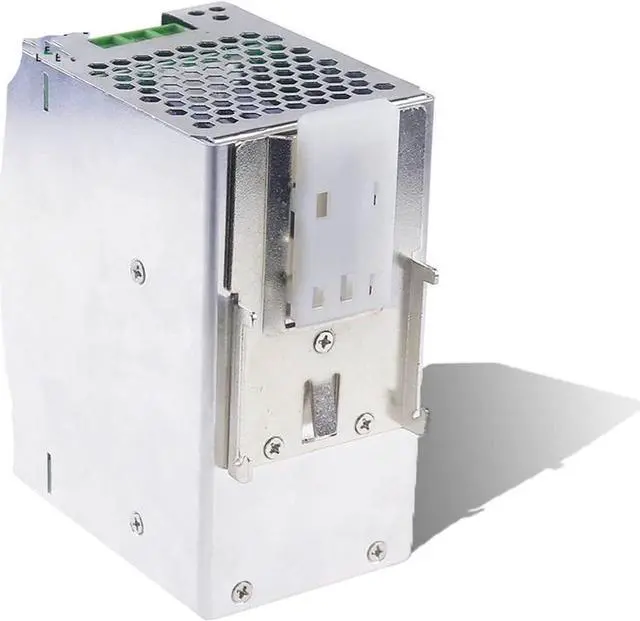

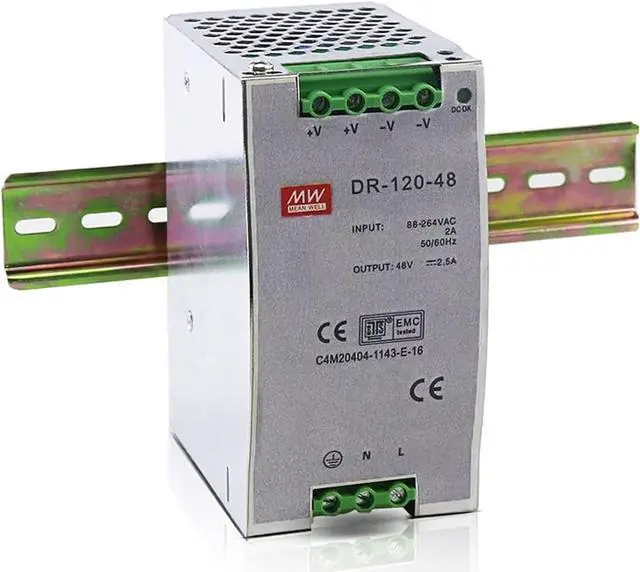

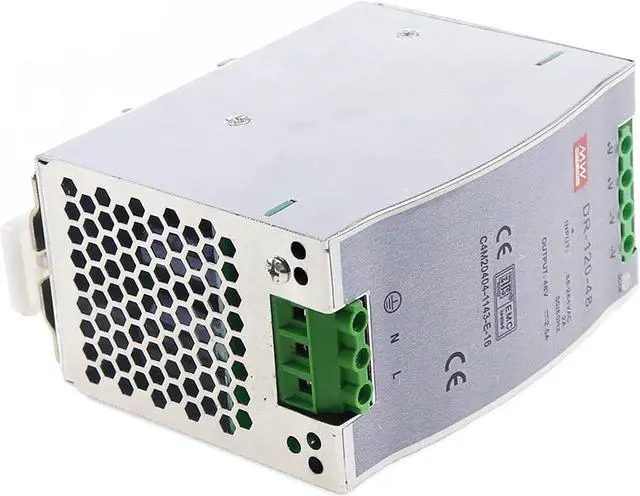

VEVEL 48V 2.5A 120W Single Output Industrial DIN Rail Power Supply DR-120-48

DC output range:48V,2.5A
Output voltage accuracy:+1%
Ripple 100mV
Efficiency 85%
Input voltage range:switch from 90 to 132VAC/180 to 264VAC or 248 to 370VDC.
Input surge current:cold start 40A/230V
Voltage adjustment range:12V:12~14V,24V:24~28V,48V:48~53V
Overload protection:over current point at 105%~150%constant current limit current automatic recovery.
Overvoltage protection:when the rated output voltage is 115%to 142%,turn off and reset.
Overheat protection:90+5(TSW1 detects the radiator temperature of the power transistor).Protection type:overheat shut off,automatic recovery after the temperature drops
Start up hold time:230VAC load 500ms,70ms,36ms
Insulation characteristics:input and output:3KVac,input and shell:1.5KVac,output and shell:0.5KVac,1 minute
Working temperature:-10~+60 C (see output load drop curve)
Aseismic mobility:10~500Hz,2G 10 minutes/cycle,XYZ axis 60 minutes each.
Safety certification:through UL508,TUV EN60950-1 UL60950 certification
EMC standards:EN55011,EN55022(CISPR22),EN61204-3 class B,harmonics:EN61000-3-2,-3
EMC Standard:Anti-interference:EN61000-4-2,3,4,5,6,8,11,ENV50204,ENV55024,EN61000-6-2(EN50082-2),Class A Heavy Industry Standard
The mean time to failure is more than 136 thousand and 800 hours,MIL-HDBK-217F(25 C).
Connection mode:input port:3 point.Output:4 point screw DIN terminal
