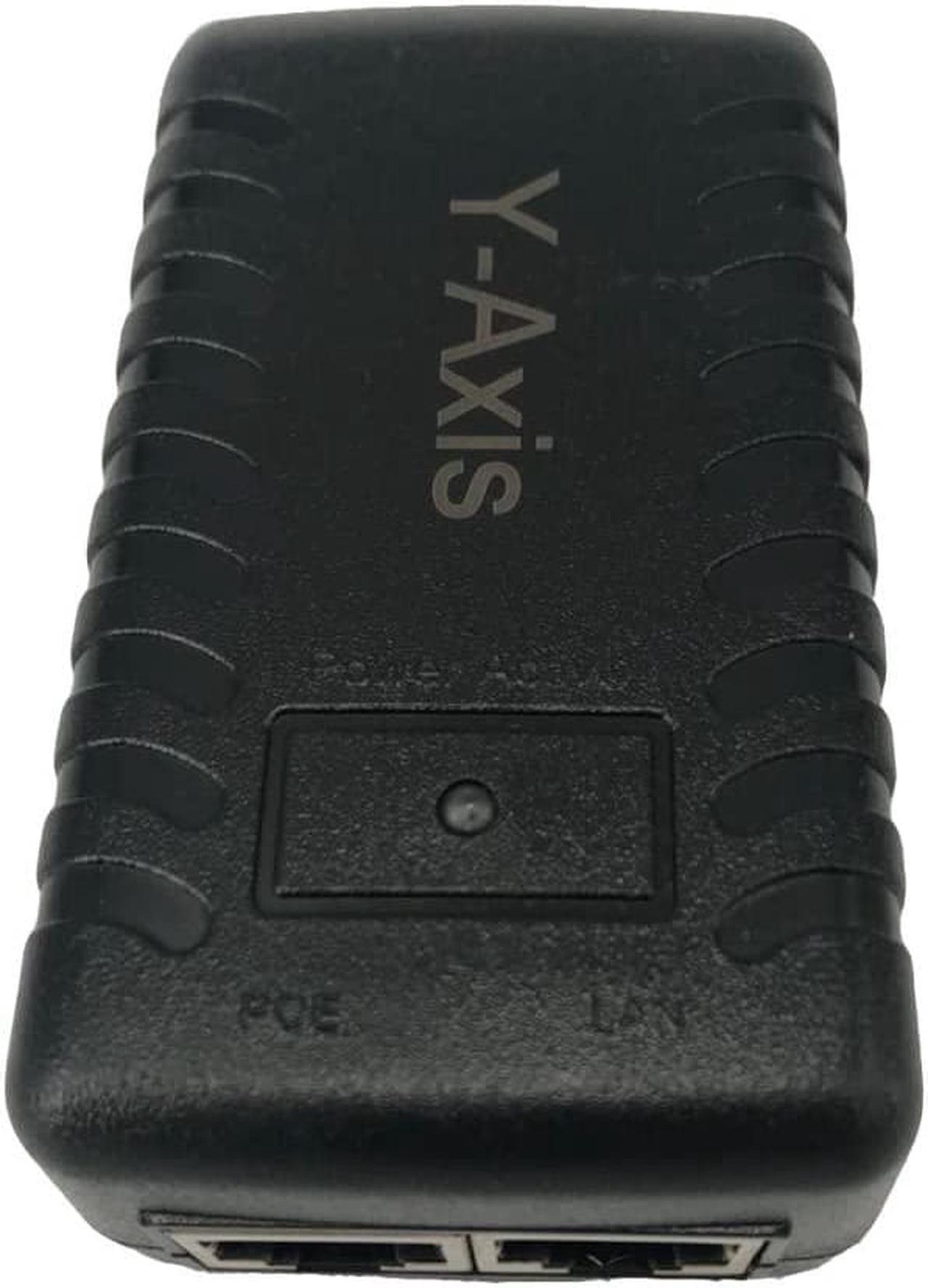

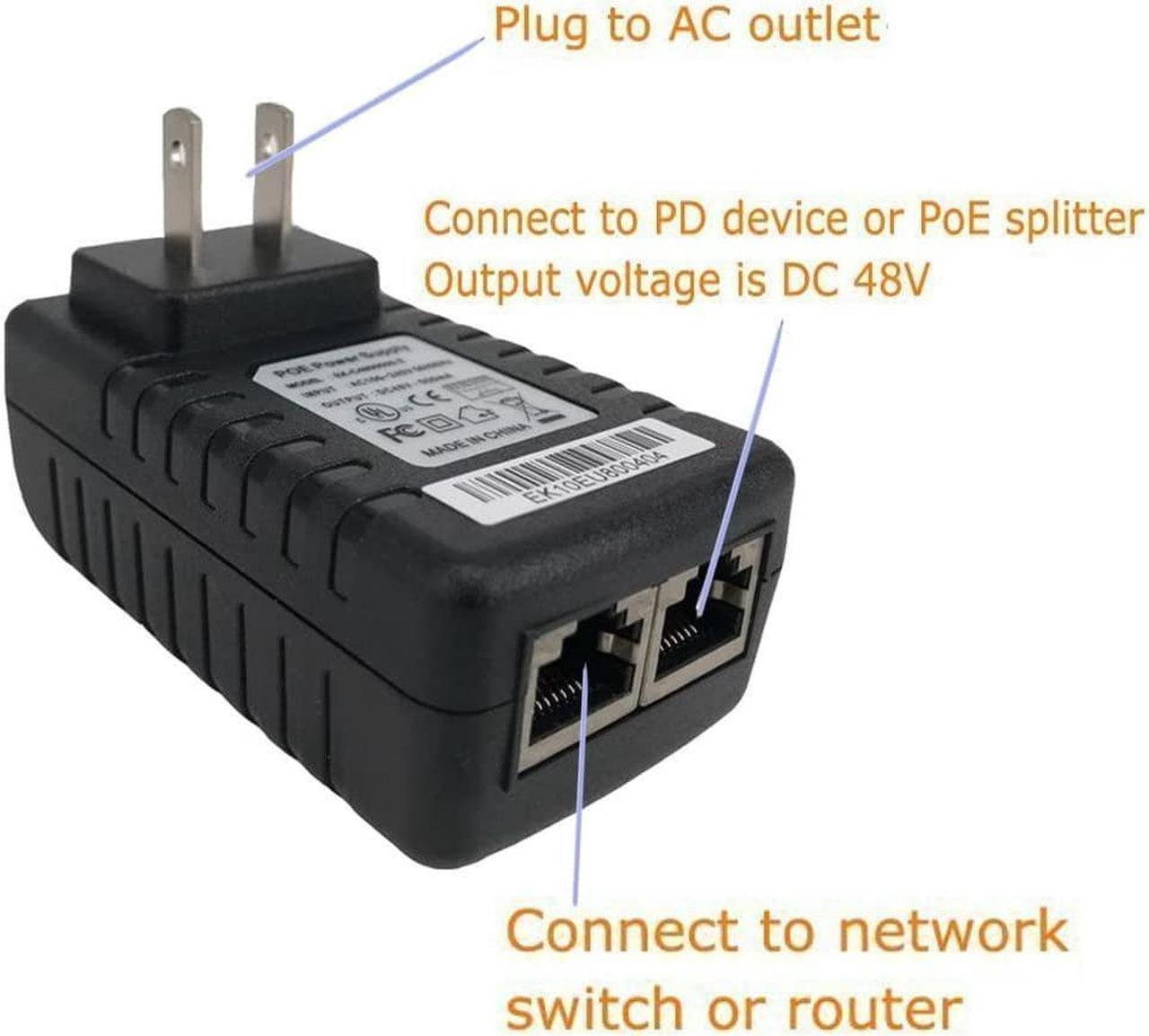

30 Pack Y-Axis Wall Plug PoE Injector Power Over Ethernet Supply 48V 0.5A for Security IP Camera ¡
- Remotely power PoE Device Thru CAT.5,6,7 Cable up to 328.1 feet(100 meters)
- IEEE802.3af Power over Ethernet with 48V Power Supply, US wall plug type.
- Input 100-240VDC, Output: 48V 24W passive PoE Output
- Short Circuit, Over Current and Over Voltage Protection
- Compatible with most 10/100Mbps IP camera, IP phone, Wireless IP point and other PoE devices.
+
+
Overview
Specs
Reviews
Applications:
IP Phone
Wireless Access point and client devices
Security IP Camera Systems
Specifications:
Output: 48V DC 500mA - Please do not order if your unit requires more than 500 MilliAmps
Input: 100-240V 50/60HZ
Output: 48V-0.5A
Input Current: 1A
Efficiency: 80% Min
Line / Load Regulation: 3% / 5%
Ripple / Noise: 200mV p-p
Turn-On Delay: 2 Seconds Max
Rise Time: 40 mS Max
Protections: Auto Recover Over-Voltage, Short Circuit, Over-Current
Operating Temperature: -10 to +40 (14 to +104)
Operating Humidity (RH): 5% - 90%
Storage Temperature: -20 to +85 (-4 to +185)
Network Connector Type: RJ45 Shielded
POE Type: Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
Help others learn more about this product by uploading a video!
IP Phone
Wireless Access point and client devices
Security IP Camera Systems
Specifications:
Output: 48V DC 500mA - Please do not order if your unit requires more than 500 MilliAmps
Input: 100-240V 50/60HZ
Output: 48V-0.5A
Input Current: 1A
Efficiency: 80% Min
Line / Load Regulation: 3% / 5%
Ripple / Noise: 200mV p-p
Turn-On Delay: 2 Seconds Max
Rise Time: 40 mS Max
Protections: Auto Recover Over-Voltage, Short Circuit, Over-Current
Operating Temperature: -10 to +40 (14 to +104)
Operating Humidity (RH): 5% - 90%
Storage Temperature: -20 to +85 (-4 to +185)
Network Connector Type: RJ45 Shielded
POE Type: Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
Help others learn more about this product by uploading a video!
