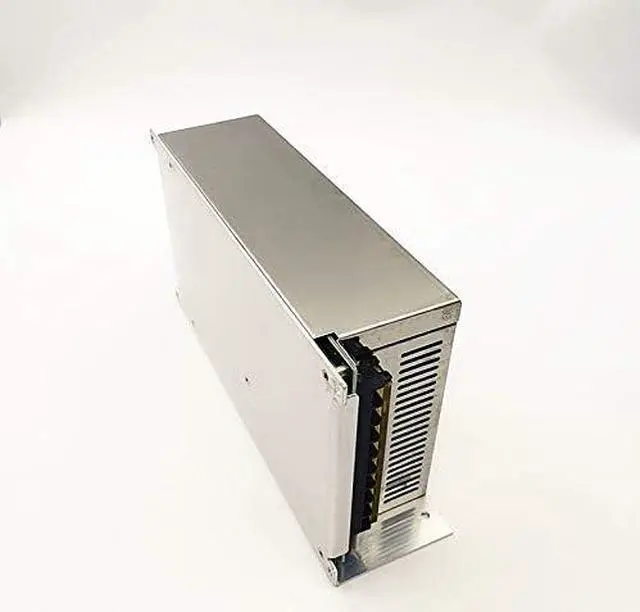

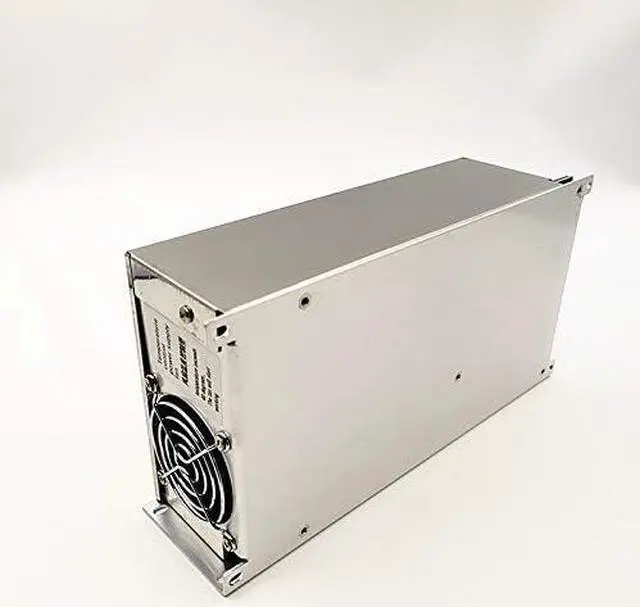

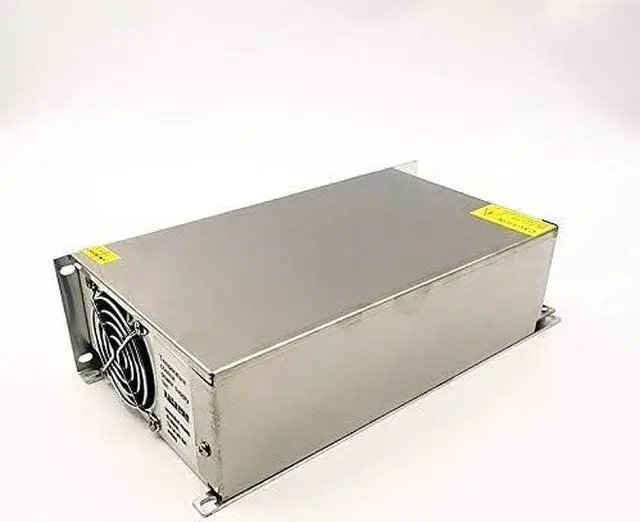

1200W 12V 24V 36V 48V 60V 72V 80V 90V 110v 220v Switching Power Supply LED Power Supply Input 110/220V Ac to Dc Smps 12V 100a (Input Voltage : 100 130vac, Output Voltage : 110V 10A)

1200W 12V 24V 36V 48V 60V 72V 80V 90V 110v 220v Switching Power Supply LED power supply input 110/220V Ac To Dc Smps 12V 100a

We can produce other output voltage, if you need, you can leave message to me.
To ensure the lifetime of the power supply, pls don't use full load when you use it. We recommend the use power should be 80% of the rated power.For example: the label of the power supply is 500W, use power should be : 500W*80%=400W

Feature &AdvantagesLowprice and high reliability
Universal AC input
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size,light weight
100% full-load burn-in test
Install with EMI filter,minimum wave
Fan cooling

Specification:
OUTPUT VOLTAGE: DC 12V 24V 36V 48V 60V 70V 80V 90V 100V 110V
OUTPUT CURRENT: DC 100A 50A 33.3A 28A 20A 13.8A 17A 13A 12A 10.9A
RATED POWER: 1200W
RIPPLE&NOISE120mVpp
SETUP,RISE TIME: 500ms,20ms/230VAC
INPUT VOLTAGE RANGE: AC 200-240V, or 100-130vac 50Hz / 60Hz
FREQUENCY RANGE: 47-63HZ
OUTPUT ADJUST RANGE: -/+10%
EFFICIENCY(Typ.): > 80%
ENVIRONMENT: WORKING TEMP -10~+60°C
WORKING HUMIDITY: 20-90%RH non-condensing
STORAGE TEMP,HUMIDITY: -20~+85°C,10-95%RH
Shell Material: Metal case / Aluminum case
DIMENSION: 238X124X65 mm
PACKING: 1.35kg, 21pcs/34kg
