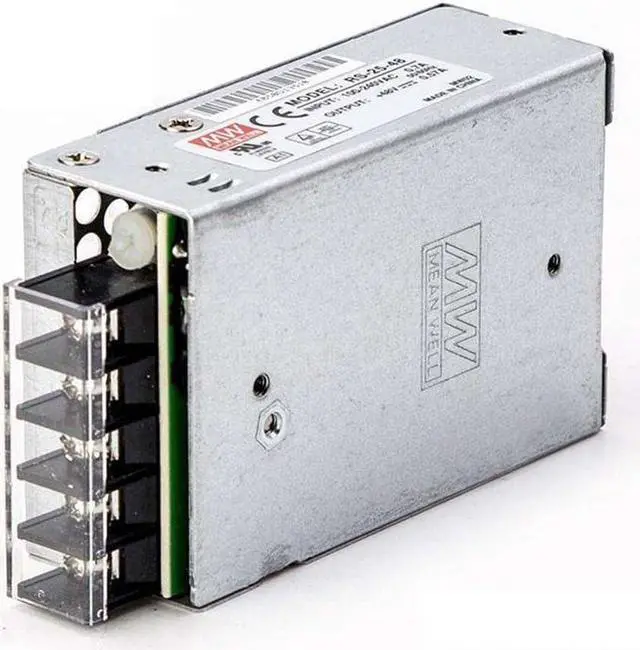

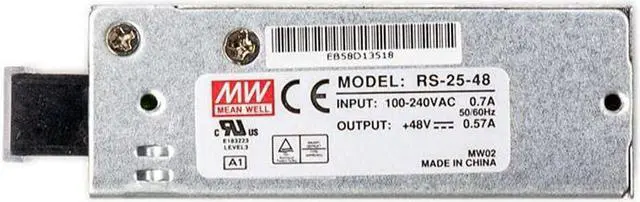

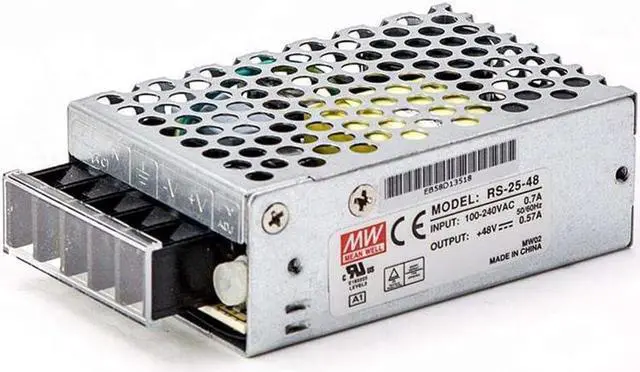

MW Mean Well Enclosed Type RS-25W-12/15/24/3.3/48/5V Non-PFC (Single Vo) RS Series 25W Single Output Switching Power Supply (RS-25-48)
- 100% original RS-25W|(12V/2.1A).(15V/1.7A).(24V/1.1A).(3.3V/6A).(48V/0.57A) .(5V/5A)For security, monitoring, LED, light strip, industrial control, lighting, etc.
- The RS-25 series complies with the international safety regulations such as UL1012 and TUV UL60950-1 , providing high price-to-performance power supply solution for various harsh working environments.
- Can withstand 300vac surge input for 5 seconds, withstand 5G vibration test, short circuit/overload/over voltage protection, High operating temperature up to 70?, high efficiency, long life and high reliability, 3 years warranty
- Miniature size, no load power consumption <0.5W, Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204
- 30 years of well-known standard power supply brand, 24 hours fast after-sales support from countries in Asia, Europe and America More than 85% of MW's(MEAN WELL's) products can be shipped within 24 hours, supporting mass wholesale.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The RS-25 series Suitable for industrial control equipment, security/monitoring, LED/lighting/light strip
·Universal AC input/Full range
·Protections: Short circuit/Overload/Over voltage
·Cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·All using 105? long life electrolytic capacitors
·Withstand 300VAC surge input for 5 second
·High operating temperature up to 70?
·Withstand 5G vibration test
·No load power consumption<0.5W
·High efficiency, long life and high reliability
·3 years warranty
·Universal AC input/Full range
·Protections: Short circuit/Overload/Over voltage
·Cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·All using 105? long life electrolytic capacitors
·Withstand 300VAC surge input for 5 second
·High operating temperature up to 70?
·Withstand 5G vibration test
·No load power consumption<0.5W
·High efficiency, long life and high reliability
·3 years warranty
