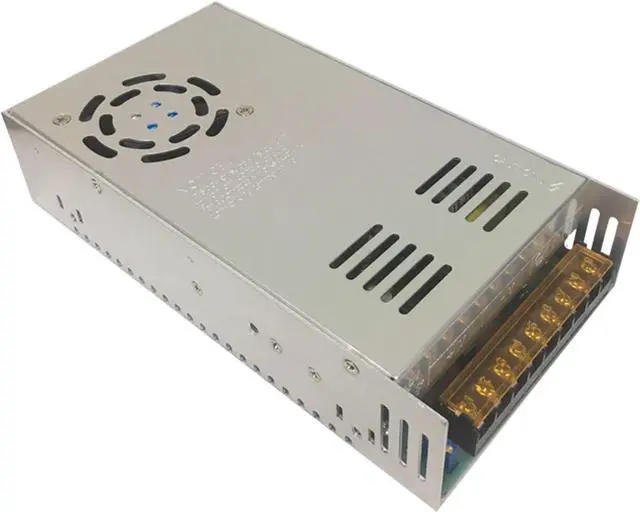

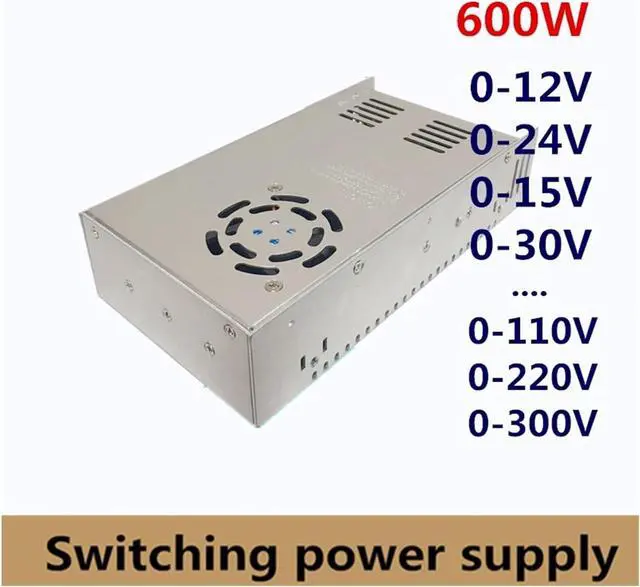

Switching Power Supply 600W Switching Power Supply Adjustable Output Voltage AC-DC 0-12V 15V 24V 36V 48V 50V 60V 72V 80V 110V 130V 220V 300V, 12V 50A (Size : 110/220V±15%, Color : 110V 5A)

Switching power supply
output power:600w
Input voltage: 110/220vac selected by switch. when you order, you can advise which input voltage that you need.
Output voltage all range adjustable
Feature&Advantages
High efficiency high reliability and low cost
Switch input voltage range choice
Protection characteristics short circuit/overloa
Cooling by fan
Specification:
Model
Specification
S-600-5 S-600-12 S-600-15 S-600-24 S-600-48
DC Output voltage 5V 12V 15V 24V 48V
Output voltage range(Note:2) ±2% ±1% ±1% ±1% ±1%
Rated output current 80A 50A 40A 25A 12.5A
Output voltage range DC 0~5V 0~12V 0~15V 0~24V 0~48V
Wave and noise(Note:3) 75mVp-p 120mVp-p 150mVp-p 240mVp-p 240mVp-p
Inlet stability(Note:4) ±0.5% ±1% ±1% ±1% ±1%
Load stability(Note:5) ±1% ±0.5% ±0.5% ±0.5% ±0.5%
DC output power 400W 600W 600W 600W 600W
Efficiency 80% 83% 84% 86% 87%
AC input voltage range 100-132VAC/190-240VAC selected by switch 47-63Hz
Input current 5A/230V
Power factor 0.65 - 0.75
AC Inrush current 46A/230V
<;3.5mA/240VAC
Overload protection 120%-150% Reset: auto recovery
Over-voltage protection 120%-150%
High-temperature protection ERH365°C~70°CFan on, 55°C~60°CFan off, 80°C~85°C, Cut off output (5-15V)~(24-48V)
Temperature coefficient ±0.03%/°C(0~50°C)
Setup, rise, hold up time 1s, 100ms, 50ms
Vibration 10~500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes
Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity -10°C~+60°C, 10%~95%RH
Store temperature and humidity -20°C~+85°C, 10%~95%RH

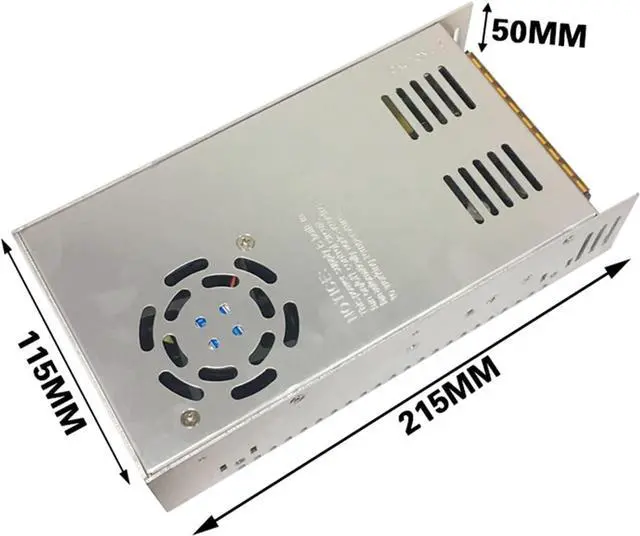

Overall dimension 2215*115*50mm (L*W*H)
Weight 1.0Kgs
