1500W Automatic Equipment Servo Motor Engraving Machine Heating Tube 110-240V AC to DC Switching Power Supply with PFC Adapter CCTV Camera 3D Printer Power Supply(Output 24V 36V 48VDC)
- Topological structure:subject- verb form PFC(Power Factor Correction)
- Wide voltage input:100-240VAC,Available in all countries
- Power factor pf value is above 0.96,More than 89% efficiency
- Output voltage can be adjusted manually
- Three protection modes of short circuit, overload and over temperatureremoved
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. At 110VAC input:rated power 1500W
2. Topological structure: subject- verb form PFC(Power Factor Correction)
3. Wide voltage input: 100-240VAC,Available in all countries
4. Power factor PF value 0.98(110VAC input At 100% Full load)
5. Power factor PF value 0.96(220VAC input At 100% Full load)
6. Power efficiency89%
7. Protection type: Short circuit protection,Recovers automatically after fault Condition is removed
8. Over load protection: 115~135% rated out power
9. Over temperature protection: Over 85 shut down o/p voltage,recovers Automatically after temperature goes down
10. DC output voltage24V/62A 36V/42A 48V/31A
11. Voltage regulation modePotentiometer adjustment
12. Voltage Tolerance: ±5%
13. Ripple&Noise480mV
14. Working TEMP: -20~+45

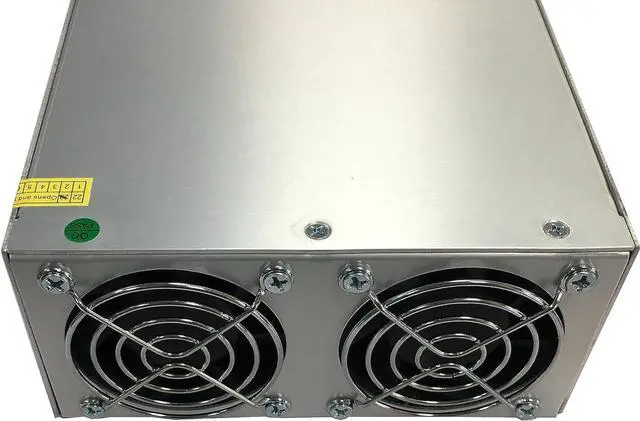

15. Heat dissipation mode: Temperature control automatic speed regulating fan

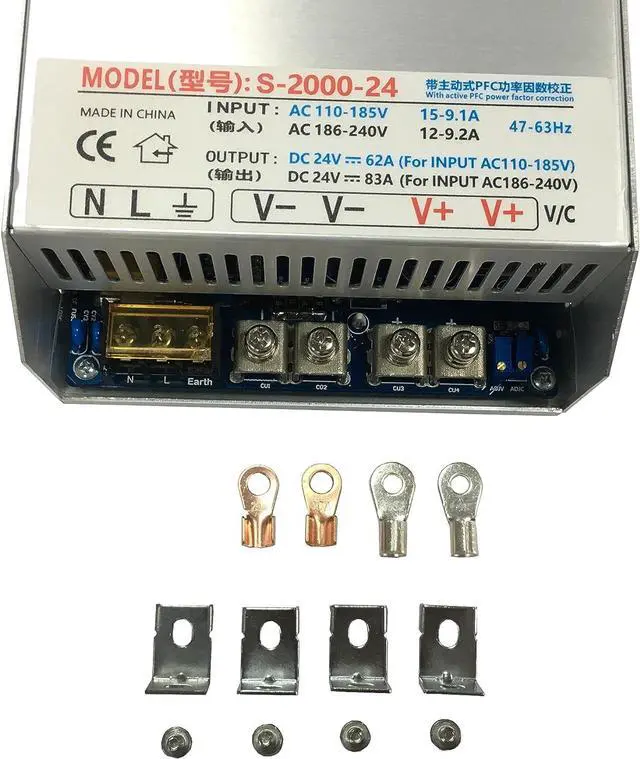

16. Output terminal block: M6 screw terminal block
17. Input terminal block: Spacing 9.5mm,Barrier type terminal block

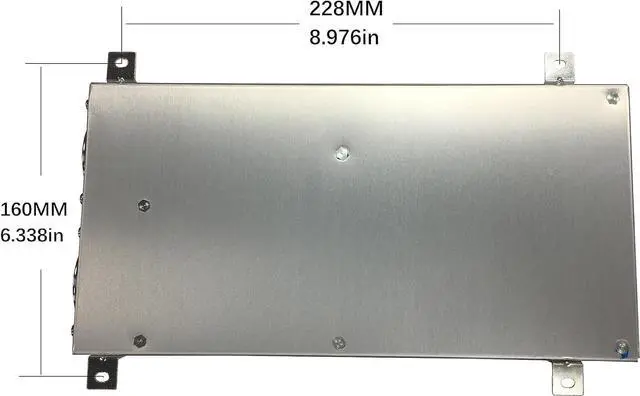

18. Shell size:280 * 140 * 65mm
19. weight: 2125g
2. Topological structure: subject- verb form PFC(Power Factor Correction)
3. Wide voltage input: 100-240VAC,Available in all countries
4. Power factor PF value 0.98(110VAC input At 100% Full load)
5. Power factor PF value 0.96(220VAC input At 100% Full load)
6. Power efficiency89%
7. Protection type: Short circuit protection,Recovers automatically after fault Condition is removed
8. Over load protection: 115~135% rated out power
9. Over temperature protection: Over 85 shut down o/p voltage,recovers Automatically after temperature goes down
10. DC output voltage24V/62A 36V/42A 48V/31A
11. Voltage regulation modePotentiometer adjustment
12. Voltage Tolerance: ±5%
13. Ripple&Noise480mV
14. Working TEMP: -20~+45
15. Heat dissipation mode: Temperature control automatic speed regulating fan
16. Output terminal block: M6 screw terminal block
17. Input terminal block: Spacing 9.5mm,Barrier type terminal block
18. Shell size:280 * 140 * 65mm
19. weight: 2125g
