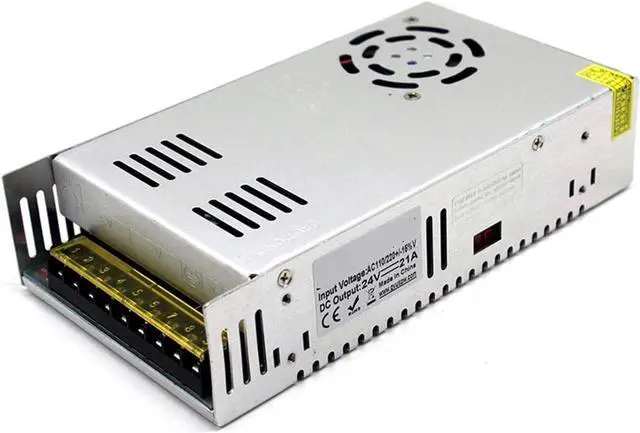

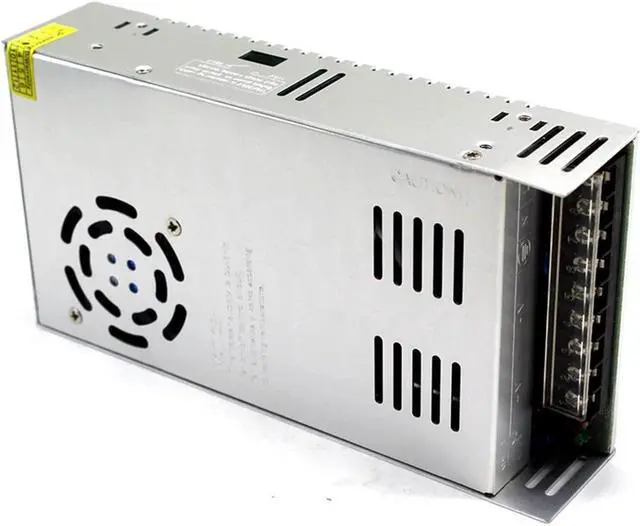

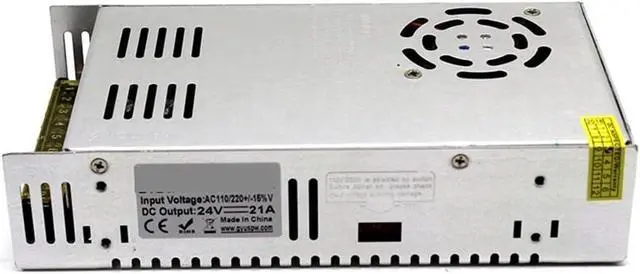

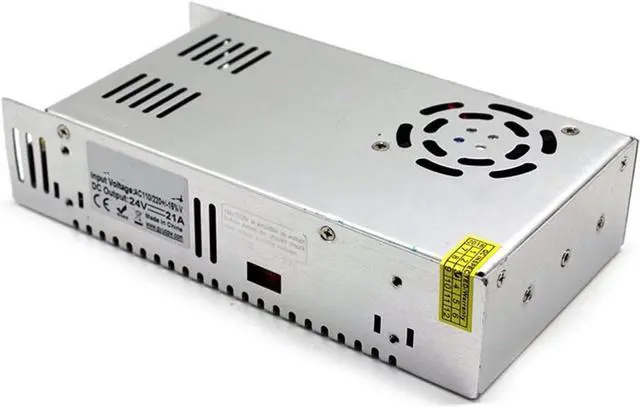

EZGA Dc Regulated Power Supply 3D Equipment Power Supply DC12V DC24V500W DC Printer Power Supply 24V Switching Power Supply for CCTV, Computer Project, 3D Printer (Size : S-500-24)
- Fully modular, so you only connect the cables your system needs.
- Switch Power Supply Widely used in Industrial automation, LED display, communications, etc.
- You can choose the input voltage by switch.
- Smart device surge protection for Shortage Protection, Overload Protection, Over Voltage Protection
- Bearing fans with specially calculated fan curves ensure fan noise is kept to a minimum, even at full load.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Modulation method: constant voltage power supply
Transistor Connection Method : Single-Ended
Input voltage : AC110/220
Output power : 500
Output Voltage : 24
Work efficiency: 80
Output Ripple Noise : 300
Output Voltage Accuracy : 5
Voltage Regulation : 5
Load Regulation : 5
Output current : 21
Working frequency : 50/60
Operating temperature : -30°C~50°C
Dimensions: 215*115*50MM
Specifications: 24V500W indoor power supply
Series : Special Power Supply for 3D Printers
Power Phase: Single
Input voltage range: AC110/220V
Number of circuits : 2
Scope of application: 3D printer light bar module power supply
Extended functions: none
Working environment temperature: -10-60
Installation method: indoor installation
Protection class : IP20
Weight: 0.75KG
Remarks: The load power cannot exceed 80% of the rated power
Rated power: 500W
Reset method: automatic reset after power failure
Regulation voltage : +/-3%
Cooling Fan Type : Air Cooling
Transistor Connection Method : Single-Ended
Input voltage : AC110/220
Output power : 500
Output Voltage : 24
Work efficiency: 80
Output Ripple Noise : 300
Output Voltage Accuracy : 5
Voltage Regulation : 5
Load Regulation : 5
Output current : 21
Working frequency : 50/60
Operating temperature : -30°C~50°C
Dimensions: 215*115*50MM
Specifications: 24V500W indoor power supply
Series : Special Power Supply for 3D Printers
Power Phase: Single
Input voltage range: AC110/220V
Number of circuits : 2
Scope of application: 3D printer light bar module power supply
Extended functions: none
Working environment temperature: -10-60
Installation method: indoor installation
Protection class : IP20
Weight: 0.75KG
Remarks: The load power cannot exceed 80% of the rated power
Rated power: 500W
Reset method: automatic reset after power failure
Regulation voltage : +/-3%
Cooling Fan Type : Air Cooling
