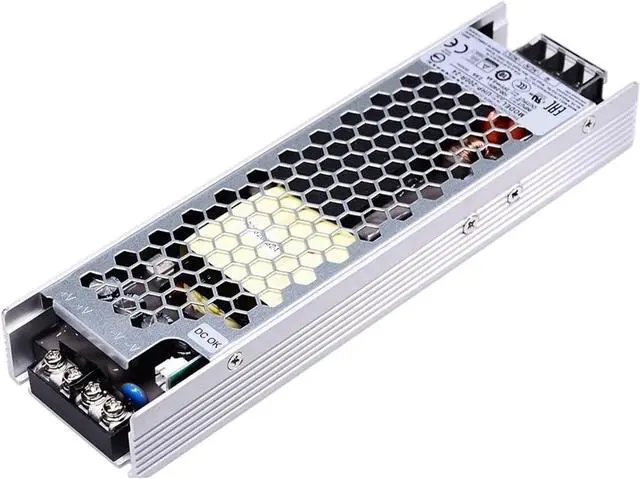

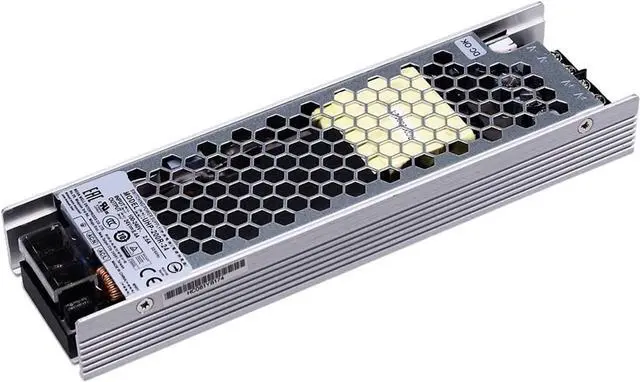

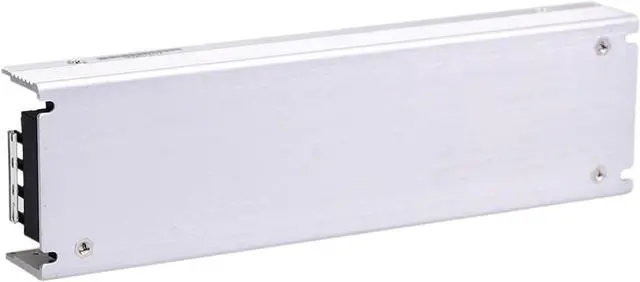

Switching Power UHP-200R 200W 3.3V 4.2V 5V 12V 15V 24V 36V 48V Slim Type with PFC DC OK Switching Power Supply Fanless Design (Size : 90-264V, Color : 48V_UHP-200R)

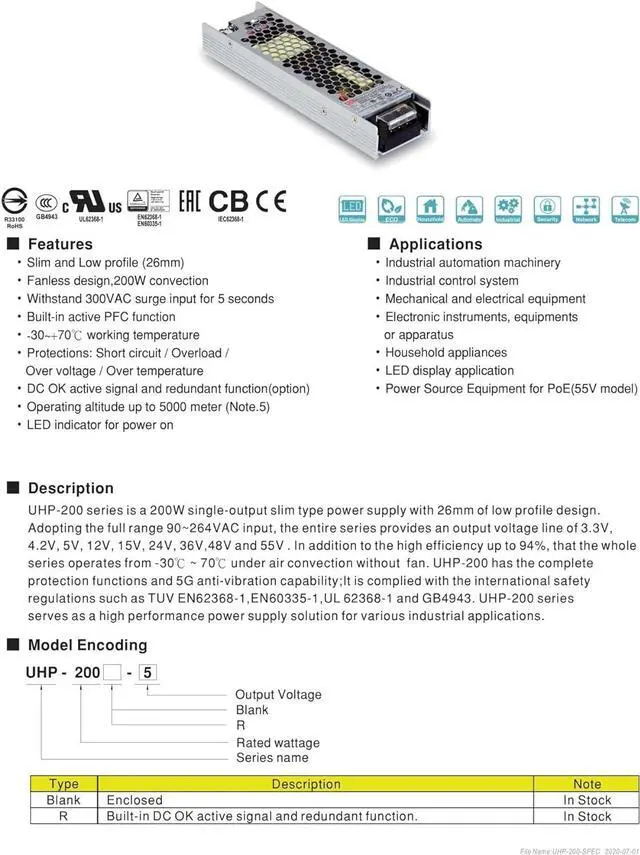

Features
1)Slim and low profile(26mm)
2)Fanless design, 200W convection
3)Withstand 300VAC surge input for 5 seconds
4)Built-in active PFC function
5)150% peak load capability(100ms)
6)-30~+70 working temperature
7)Protections: Short circuit/Overload/Over Voltage/Over temperature
8)Operating altitude up to 5000 meter

Applications
1) Industrial automation machinery
2) Industrial control system
3) Mechanical and electrical equipment
4) Electronic instuments, equipments or apparatus
5) Household appliances
6) LED Display application
Description
UHP-200 series is a 200W single-output slim type power supply with 26mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 3.3v, 4.2V,5V,12v,15V,24V,36V,48V and 55V . In addition to the high efficiency up to 94%, that the whole series operates from -30c ~ 70 under air convection without fan.UHP-200 has the complete protection functions and 5G anti-vibration capability;
