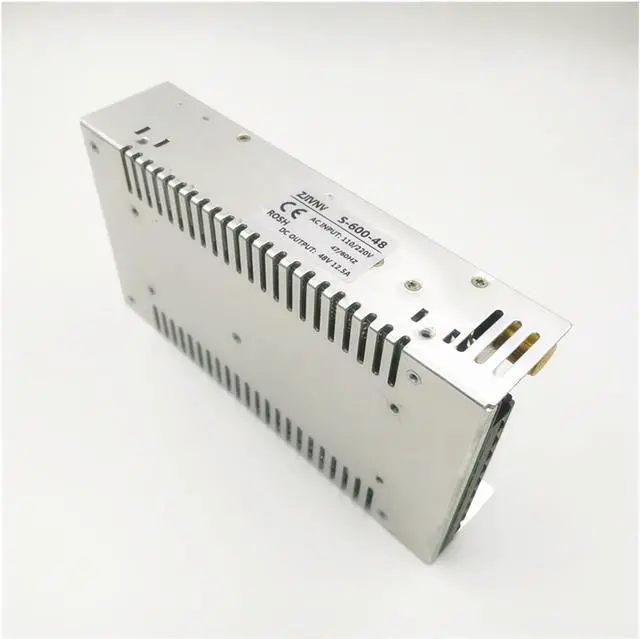

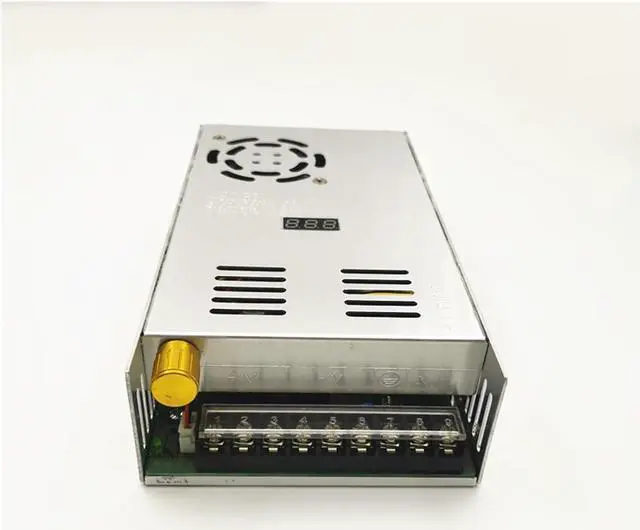

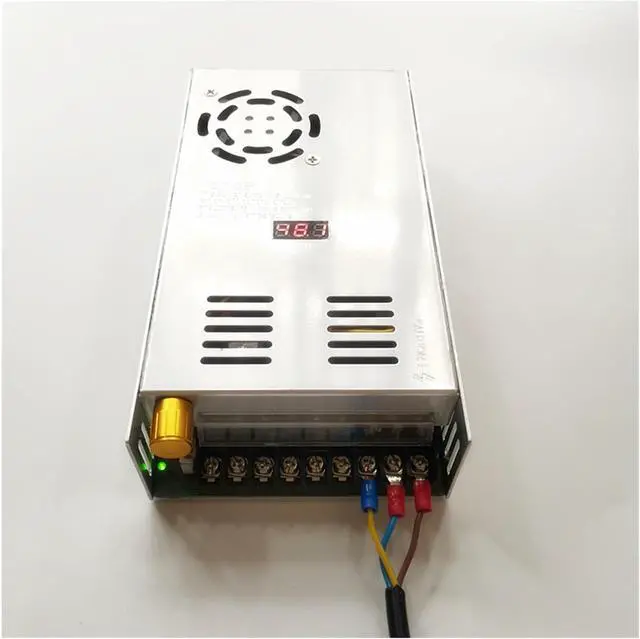

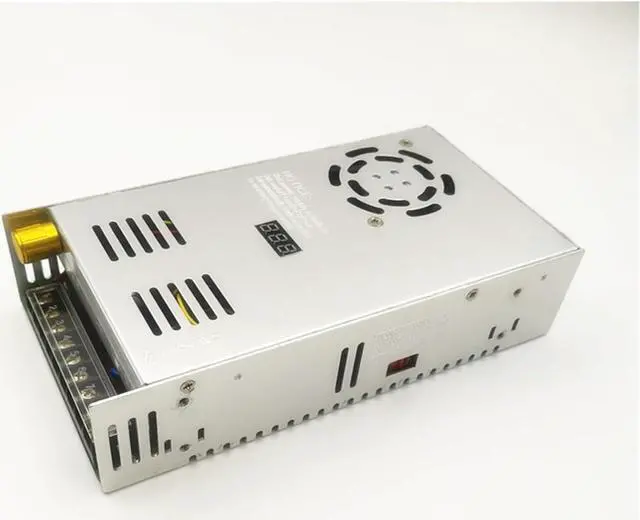

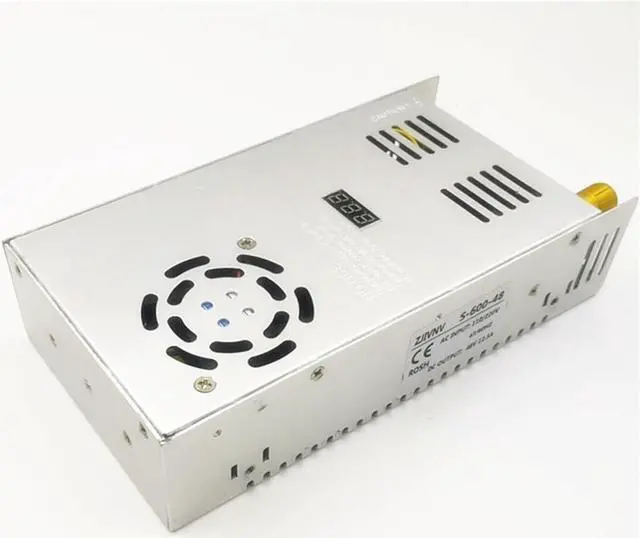

Switching Power Supply 480W Switching Power Supply Adjustable Output Voltage 0-12V 24V 36V 48V 50V 60V 80V Digital Display AC to DC 24V 20A, 48V 10A (Size : 110/220V±15%, Color : 0-80V 6A)
- IN-DOOR USE ONLY!
- Circuit Short Protection, Overload Protection and Over Voltage Protection Ensures the Safety of Using This Power Supply
- Metal Enclosed Body is good for Heat Dissipation which Can Prolong the Lifespan of the Power Supply
- Stable Performance -The DC ripple is small, the power supply efficiency is high, and the electromagnetic interference is low, long service life.
- Wide Application - The dc 24v power supply is widely used in industrial automation, led strip light, led lighting, led display, electronic equipment, home appliance etc.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High Quality600W Switching Power Supply adjustable output voltage AC-DC 0-12V 15V 24V 36V 48V 50V 60V 72V 80V 110V 130V 220V,SMPS 12V 50A
In order saving the power supply lifetime, the load power should at 80% of the rated power, such as when you usethe 500W item, the load power should at 500W*80%=400W.
For the max output voltage, ifyou order 0-48V12.5A, when you set the output voltage at 24V, the max output still is 12.5A.
switching power supply
output power:480w
Input voltage: 110/220vac selected by switch.
Output voltage all range adjustable
Notes: The fan is normal fan, not temperature control fan.
Feature&Advantages
High efficiency high reliability and low cost
Switch input voltage range choice
100 full load and machine test
Protection characteristics short circuit/overloa
Cooling by fan
Specification:
Model
Specification
S-480-36
S-480-12
S-480-15
S-480-24
S-480-48
DC Output voltage
36v
12V
15V
24V
48V
Output voltage range(Note:2)
±2%
±1%
±1%
±1%
±1%
Rated output current
13.3A
40A
32A
20A
10A
Output voltage range DC
0~36v
0~12V
0~15V
0~24V
0~48V
Wave and noise(Note:3)
75mVp-p
120mVp-p
150mVp-p
240mVp-p
240mVp-p
Inlet stability(Note:4)
±0.5%
±1%
±1%
±1%
±1%
Load stability(Note:5)
±1%
±0.5%
±0.5%
±0.5%
±0.5%
DC output power
480W
480W
480W
480W
480W
Efficiency
86%
83%
84%
86%
87%
AC input voltage range
100-132VAC/190-240VAC selected by switch 47-63Hz
Input current
5A/230V
Power factor
0.65 - 0.75
AC Inrush current
46A/230V
Leakage current
<;3.5mA/240VAC
Overload protection
120%-150% Reset: auto recovery
Over-voltage protection
120%-150%
High-temperature protection
80°C~85°C, Cut off output (5-15V)~(
In order saving the power supply lifetime, the load power should at 80% of the rated power, such as when you usethe 500W item, the load power should at 500W*80%=400W.
For the max output voltage, ifyou order 0-48V12.5A, when you set the output voltage at 24V, the max output still is 12.5A.
switching power supply
output power:480w
Input voltage: 110/220vac selected by switch.
Output voltage all range adjustable
Notes: The fan is normal fan, not temperature control fan.
Feature&Advantages
High efficiency high reliability and low cost
Switch input voltage range choice
100 full load and machine test
Protection characteristics short circuit/overloa
Cooling by fan
Specification:
Model
Specification
S-480-36
S-480-12
S-480-15
S-480-24
S-480-48
DC Output voltage
36v
12V
15V
24V
48V
Output voltage range(Note:2)
±2%
±1%
±1%
±1%
±1%
Rated output current
13.3A
40A
32A
20A
10A
Output voltage range DC
0~36v
0~12V
0~15V
0~24V
0~48V
Wave and noise(Note:3)
75mVp-p
120mVp-p
150mVp-p
240mVp-p
240mVp-p
Inlet stability(Note:4)
±0.5%
±1%
±1%
±1%
±1%
Load stability(Note:5)
±1%
±0.5%
±0.5%
±0.5%
±0.5%
DC output power
480W
480W
480W
480W
480W
Efficiency
86%
83%
84%
86%
87%
AC input voltage range
100-132VAC/190-240VAC selected by switch 47-63Hz
Input current
5A/230V
Power factor
0.65 - 0.75
AC Inrush current
46A/230V
Leakage current
<;3.5mA/240VAC
Overload protection
120%-150% Reset: auto recovery
Over-voltage protection
120%-150%
High-temperature protection
80°C~85°C, Cut off output (5-15V)~(
